How to Choose a Carbide End Mill for Hardened Steel

Choosing the right carbide end mill for hardened steel is essential for achieving stable machining performance, accurate dimensions, and a consistent surface finish in CNC milling. However, selecting a suitable tool involves more than matching an HRC rating to the workpiece. Material type, actual workpiece hardness, end mill geometry, coating, flute count, tool overhang, and machine rigidity all influence the final result.

For mold makers and precision machining manufacturers, solid carbide end mills are widely used for milling hardened steel, tool steel, and other demanding materials. HIBOO Tools offers multiple end mill categories, including square end mills, ball nose end mills, corner radius end mills, and long neck end mills, with product series labeled HRC55, HRC58, HRC60, HRC63, and HRC65.

This guide explains how to evaluate these factors and select a carbide end mill that matches your specific machining application.

1. Identify the Workpiece Material and Hardness

Before choosing a carbide end mill for hardened steel, identify the exact workpiece material and its hardness after heat treatment. Different steels can behave differently during milling, even when their measured hardness values are similar.

Common Hardened Steels Used in Mold Manufacturing

Hardened steels are widely used in plastic injection molds, die-casting molds, precision dies, and industrial tooling. Typical materials include pre-hardened mold steels, heat-treated tool steels, and alloy steels.

When selecting a milling cutter, consider the following factors:

• Steel grade: Different alloy compositions affect machinability, wear behavior, and cutting forces.

• Workpiece hardness: Confirm the actual hardness after heat treatment rather than relying only on the material specification.

• Machining stage: Roughing, semi-finishing, and finishing may require different tool geometries and cutting strategies.

• Surface requirements: Tight tolerances and fine surface finishes can influence tool diameter, edge geometry, and toolpath selection.

For example, milling a pre-hardened mold steel block may require a different approach from finishing a fully hardened mold cavity. The correct choice depends on the material, hardness, tool design, and machining conditions.

Why Workpiece Hardness Matters

As workpiece hardness increases, cutting edges may experience greater mechanical and thermal demands. Wear resistance becomes important, but edge toughness and resistance to chipping also matter.

A tool designed for hard milling should therefore be selected according to its complete specification, including carbide substrate, coating, cutting-edge geometry, and recommended application range.

Important: Do not assume that a tool labeled HRC63 can automatically machine every workpiece at 63 HRC. Confirm the manufacturer's stated application range and recommended cutting conditions for the specific tool model.

2. Choose the Right HRC Grade: HRC55 to HRC65

HIBOO Tools lists square end mill and ball end mill series across multiple HRC grades, including HRC55, HRC58, HRC60, HRC63, and HRC65. These product families provide a starting point for comparing available tooling options.

However, the HRC designation alone is not enough to determine which cutter will perform best. Buyers should compare the actual product specifications and application recommendations before selecting a tool.

HRC55 and HRC58 Carbide End Mills

HRC55 and HRC58 end mill series are options to evaluate when selecting general-purpose carbide cutters for suitable steel and mold machining applications.

Before ordering, check:

• Whether the selected model is intended for the workpiece material and hardness.

• Whether the required diameter, flute length, and overall length are available.

• Whether the cutter has the appropriate flute count and edge geometry.

• Which coating and cutting conditions are recommended.

HIBOO Tools provides HRC55 and HRC58 square end mills, as well as ball nose and other end mill options in its product range.

Explore the HIBOO Carbide Square End Mills category to review available models.

HRC60 Carbide End Mills

When evaluating an HRC60 series cutter, consider the actual machining task rather than relying on the grade label alone.

Important selection factors include workpiece hardness, tool diameter, radial engagement, tool overhang, and the required surface finish. A suitable combination of carbide substrate, coating, and geometry is necessary to achieve stable performance.

HIBOO Tools lists HRC60 square end mills and ball nose end mills. Compare the specifications of the individual models to determine whether they match your machining requirements.

HRC63 and HRC65 Carbide End Mills

HIBOO Tools also offers HRC63 and HRC65 end mill series, including square end mills and corner radius end mills. These product families may be relevant when evaluating tooling for demanding steel and mold machining applications.

Before selecting an HRC63 or HRC65 model, verify:

• The intended workpiece materials and applicable hardness range.

• The available tool diameters and cutting lengths.

• The coating and edge geometry of the selected model.

• Whether the tool is intended for roughing, finishing, or a specific milling operation.

• The recommended cutting speed, feed rate, and engagement conditions.

A higher number does not automatically mean better performance in every application. The correct cutter is the one whose complete design and recommended operating conditions match the job.

HRC Grade Selection Checklist

For a more focused comparison of HRC55, HRC58, and HRC60, read the related guide: HRC58 Carbide End Mill vs HRC55 and HRC60: Grade Selection Compared.

3. Select the Right End Mill Geometry

The cutting geometry determines how a carbide end mill engages the workpiece. Choosing the right geometry helps match the tool to the machining operation, whether you are milling flat surfaces, cutting slots, machining complex cavities, or finishing curved mold surfaces.

Square End Mills for Flat Surfaces and Slot Milling

A square end mill has a flat end and is commonly used for machining flat surfaces, shoulders, slots, and straight-sided features.

A carbide square end mill may be appropriate for:

• Flat-bottom slot milling.

• Side milling and shoulder milling.

• Machining pockets with flat-bottom features.

• Precision fitting and slot-cutting operations.

• Milling suitable steel and mold materials.

HIBOO Tools lists square end mill series with different HRC designations and two- or four-flute configurations in selected models.

When selecting a square end mill for hardened steel, check the cutter diameter, flute length, edge geometry, and recommended application range. For deep slots or narrow features, also consider chip evacuation and tool rigidity.

View the Carbide Square End Mills category for available options.

Ball Nose End Mills for 3D Contouring and Mold Finishing

A ball nose end mill has a rounded cutting tip and is commonly used for curved surfaces, 3D contours, and mold cavity finishing.

Typical applications include:

• 3D surface milling.

• Contouring complex mold cavities.

• Finishing curved and sculptured surfaces.

• Machining profiles that require a rounded toolpath.

HIBOO Tools offers carbide ball end mill series, including HRC55, HRC58, HRC60, and HRC63 options in its product range.

When choosing a ball nose cutter, consider the ball radius, tool diameter, surface curvature, machining allowance, and stepover. These factors influence surface scallop height and finishing time.

A ball nose end mill is not automatically the best option for every hardened steel operation. For flat-bottom features or sharp internal corners, another tool geometry or a combination of cutters may be more appropriate.

Corner Radius End Mills for Stronger Cutting Edges

A corner radius end mill combines a flat cutting end with a rounded transition at the cutting corners. The rounded corners can help reduce stress concentration compared with a sharp-cornered tool under suitable cutting conditions.

Consider a corner radius end mill when:

• The part geometry requires a small corner radius.

• Cutting-edge strength is important.

• The operation involves side milling or profile milling.

• The machining strategy benefits from a rounded transition.

HIBOO Tools lists HRC55, HRC63, and HRC65 corner radius end mill series. Confirm the available corner radius, diameter, flute count, and recommended material range for the specific model.

Long Neck End Mills for Deep Cavities

Deep mold cavities and narrow features may require a long neck end mill to reach the machining area without interference from the tool shank.

HIBOO Tools offers long neck square end mills and long neck ball end mills in its micro end mill category.

When selecting a long neck end mill, consider:

• Required reach and cavity depth.

• Cutting diameter and neck diameter.

• Overall tool length and flute length.

• Tool overhang and bending stiffness.

• The possibility of vibration, deflection, or chatter.

Use the shortest tool length that can safely reach the target feature. Excessive overhang can reduce rigidity and make dimensional accuracy and surface finish more difficult to control.

Explore the Micro End Mills category for long neck and small-diameter options.

4. Consider Flute Count, Coating, and Carbide Substrate

After selecting the HRC series and tool geometry, evaluate the flute count, coating, and carbide substrate. These features work together and should be considered as a complete tool design.

How Flute Count Affects Chip Evacuation

The number of flutes influences available chip space, cutting-edge engagement, and the tool's suitability for different machining conditions.

Two-flute and four-flute cutters are both available within HIBOO Tools' product range, although the available configurations vary by model.

As a general selection principle:

• Two-flute end mills: Consider when greater chip space is beneficial, provided the tool geometry is appropriate for the workpiece and operation.

• Four-flute end mills: Consider when the application benefits from additional cutting edges and the flute geometry provides sufficient chip evacuation.

• Other flute configurations: Evaluate according to the specific cutter design and manufacturer's recommendations.

Do not select a flute count based on the number of edges alone. Material properties, engagement, feed rate, cutting depth, and chip evacuation all affect performance.

Why Coating Selection Matters

Coatings can influence wear resistance, friction, heat behavior, and the suitability of a cutter for a particular material and cutting condition.

HIBOO Tools lists coating options such as AlTiN, TiAlN, TiSiN, TiN, DLC, and other coating configurations on relevant product pages.

When comparing coated carbide end mills, check:

1. Whether the coating is recommended for the workpiece material.

2. Whether the tool is designed for the intended cutting speed and temperature.

3. Whether the coating and edge geometry are appropriate for the machining operation.

4. Whether the coating specification applies to the exact model being purchased.

A coating name by itself does not guarantee a particular tool life or surface finish. Results depend on the complete tool design, machine conditions, cutting parameters, and workpiece material.

Carbide Substrate, Toughness, and Wear Resistance

The carbide substrate influences the tool's ability to resist wear, withstand cutting forces, and maintain edge integrity.

A substrate designed for wear resistance may be beneficial in some hard-milling applications, while sufficient toughness is also important where interrupted cuts, vibration, or unstable engagement could cause edge chipping.

Ask the supplier for the substrate and coating specifications of the exact model under consideration. Where available, compare technical data and application recommendations rather than relying only on general product descriptions.

5. Match the End Mill to Your CNC Machining Conditions

Even a suitable carbide end mill can perform poorly if the machining conditions are not appropriate. Machine rigidity, tool holding, cutting parameters, and chip evacuation all affect the results.

Machine Rigidity and Spindle Runout

A rigid machine setup helps maintain stable cutting conditions. Excessive spindle runout or poor tool holding can cause uneven cutting loads, premature wear, vibration, and inconsistent dimensions.

Before machining hardened steel, check:

• Toolholder condition and clamping force.

• Spindle runout.

• Workpiece clamping stability.

• Machine rigidity.

• Tool balance and the suitability of the setup for the intended cutting speed.

These checks are particularly important for small-diameter cutters and precision mold machining.

Tool Diameter, Length, and Overhang

Tool dimensions must match both the feature geometry and the machine setup.

A larger tool diameter may provide greater rigidity where the part geometry permits it. A smaller diameter may be necessary for narrow slots, fine details, or small internal radii.

Longer tools can reach deeper cavities but are generally more susceptible to deflection and vibration.

Confirm the following dimensions before ordering:

• Cutting diameter.

• Flute length.

• Shank diameter.

• Overall length.

• Neck diameter and neck length, where applicable.

• Corner radius or ball radius, where applicable.

HIBOO Tools lists standard sizes and indicates that customization is available for certain cutting tools. Contact the supplier to confirm the available dimensions for your application.

Cutting Speed, Feed Rate, and Radial Engagement

Cutting speed, feed rate, axial depth, radial engagement, and toolpath strategy should be selected as a coordinated set.

There is no single set of cutting parameters that is appropriate for every hardened steel workpiece or every carbide end mill.

When establishing machining conditions:

1. Identify the exact workpiece material and hardness.

2. Check the manufacturer's cutting recommendations for the selected tool.

3. Confirm the tool diameter, flute count, coating, and effective cutting length.

4. Consider machine rigidity, tool overhang, and workpiece clamping.

5. Start with suitable manufacturer-recommended parameters and adjust based on actual machining results.

Avoid increasing cutting speed or feed rate without considering chip load, heat generation, vibration, and tool wear.

Coolant and Chip Evacuation

The appropriate cooling and chip-removal strategy depends on the cutter, material, machining method, and machine setup.

In some hard-milling applications, stable chip evacuation and avoiding repeated contact with accumulated chips are particularly important. Follow the tool manufacturer's recommendations for coolant use or air-blast arrangements, and ensure that chips can leave the cutting zone effectively.

If chip evacuation is poor, review tool geometry, engagement, toolpath, and the cooling strategy before assuming that a different HRC grade will solve the problem.

6. Common Mistakes When Choosing an End Mill for Hardened Steel

Avoiding common selection mistakes can help improve machining stability and reduce unnecessary tool changes.

Mistake 1: Choosing a Tool Based on the HRC Rating Alone

The HRC label is only one part of the selection process. Two cutters with similar grade labels may differ in substrate, coating, geometry, and recommended applications.

Better approach: Compare the complete product specification and confirm the intended workpiece hardness range.

Mistake 2: Using the Wrong Geometry

A square end mill, ball nose end mill, and corner radius end mill serve different geometric requirements.

Better approach: Match the cutting geometry to the feature being machined, and use different tools where the part geometry requires them.

Mistake 3: Ignoring Tool Overhang

Excessive tool overhang can increase deflection and vibration, especially when using small-diameter or long neck cutters.

Better approach: Use the shortest practical tool length and ensure that the toolholder and machine setup are sufficiently rigid.

Mistake 4: Selecting a Coating Without Checking the Application

Not every coating is suitable for every workpiece material or cutting condition.

Better approach: Confirm coating compatibility with the selected carbide substrate, workpiece, and recommended machining parameters.

Mistake 5: Comparing Purchase Price Instead of Overall Machining Cost

A low purchase price does not necessarily mean a lower cost per finished part. Tool life, machining time, dimensional consistency, and scrap rates can all affect the total cost.

Better approach: Evaluate the complete machining process and, where possible, compare performance using controlled production trials.

7. How to Select the Right HIBOO Carbide End Mill

HIBOO Tools supplies carbide end mills and other CNC cutting tools, including square end mills, ball nose end mills, corner radius end mills, and long neck end mills. The company also states that it supports customized cutting tools and provides technical consultation for product selection.

To identify a suitable tool for hardened steel machining, follow this selection process.

Step 1: Define the Workpiece

Provide the steel grade, actual hardness, and heat-treatment condition. If the material specification is uncertain, confirm it before selecting the cutter.

Step 2: Define the Machining Operation

Identify whether you need to perform roughing, side milling, slot milling, cavity machining, or surface finishing.

Step 3: Choose the Tool Geometry

Select a square end mill for suitable flat-bottom and slotting operations, a ball nose end mill for curved surfaces and 3D contours, or a corner radius end mill where a rounded cutting corner is required.

Step 4: Confirm the Tool Specification

Compare the HRC series, substrate, coating, flute count, diameter, flute length, shank diameter, and overall length. Confirm the manufacturer's recommendations for the intended material and operation.

Step 5: Verify the Machining Conditions

Check the machine, toolholder, overhang, cutting parameters, and chip-removal strategy before production.

Recommended HIBOO Product Categories

The most suitable tool depends on the exact application. Confirm model availability and technical specifications with HIBOO Tools before making a final selection.

Need Help Choosing the Right HRC Grade?

Share your workpiece material, hardness, machining operation, and required tool dimensions with HIBOO Tools. The team can help you review available tool options and identify a suitable specification for your application.

Contact HIBOO Tools for End Mill Selection Advice

8. Frequently Asked Questions

What Is the Best Carbide End Mill for Hardened Steel?

The best carbide end mill depends on the workpiece material, actual hardness, machining operation, tool geometry, coating, and machine conditions. Confirm the manufacturer's application recommendations before selecting a specific model.

How Do I Choose Between HRC55 and HRC60 End Mills?

Compare the intended workpiece hardness range, carbide substrate, coating, geometry, and recommended cutting conditions. Do not assume that the HRC60 designation automatically makes a tool better for every application.

Is an HRC65 End Mill Suitable for Every Hardened Steel Application?

No. Suitability depends on the specific tool design and the workpiece and machining conditions. Verify the recommended application range for the exact HRC65 model before use.

Should I Use a Square or Ball Nose End Mill for Mold Steel?

A square end mill is generally considered for suitable flat-bottom features, slots, and side milling. A ball nose end mill is commonly used for curved surfaces and 3D contours. Complex mold components may require both tool types at different machining stages.

How Can I Improve Carbide End Mill Life When Machining Hardened Steel?

Start with a tool that matches the material and operation. Maintain a rigid setup, minimize unnecessary overhang, follow recommended cutting parameters, and ensure effective chip evacuation. Monitor wear and adjust the machining strategy based on actual results.

What Information Should I Provide When Ordering a Carbide End Mill?

Provide the workpiece material and hardness, machining operation, required tool diameter, flute length, overall length, flute count, coating requirements, machine conditions, and expected order quantity. Drawings or a sample tool specification can help clarify custom requirements.

Conclusion

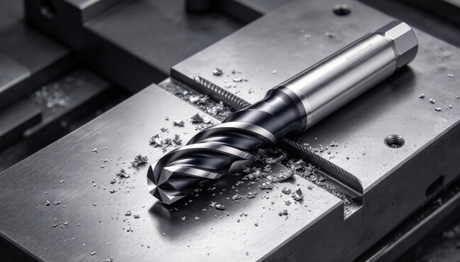

Choosing a carbide end mill for hardened steel requires a complete evaluation of workpiece hardness, tool geometry, HRC series, coating, carbide substrate, and CNC machining conditions. Rather than selecting a cutter based on its grade label alone, compare the actual specifications and confirm that the tool is suitable for the intended application.

HIBOO Tools offers multiple carbide end mill categories, including square end mills, ball nose end mills, corner radius end mills, and long neck end mills. Reviewing the relevant product specifications and providing accurate machining details can help narrow the options and support a more informed purchasing decision.

Request a Quote for Your Hardened Steel Machining Project

Looking for a carbide end mill for hardened steel or mold machining? Send HIBOO Tools your workpiece grade, hardness, machining operation, required tool dimensions, coating preferences, and order quantity.

The team can review your requirements, confirm available specifications, and provide product recommendations and a quotation.

Contact HIBOO Tools to Request a Quote
