The Complete Guide to Choosing the Best Drill Bit for Aluminum

Aluminum is widely used in automotive, aerospace, electronics, and CNC machining because of its lightweight and excellent machinability. However, choosing the right drill bit is essential for achieving clean holes, efficient chip evacuation, and consistent tool life. This guide explains how to select the best drill bit for aluminum based on material, geometry, cooling, and drilling depth.

1. Why Is Choosing the Right Drill Bit Important for Aluminum?

Although aluminum is generally easier to machine than steel, its relatively soft and ductile characteristics can create specific drilling challenges. Aluminum chips may become attached to the cutting edge or accumulate inside the flute if chip evacuation is insufficient. This can result in increased cutting resistance, poor hole quality, burr formation, and shortened tool life.

For this reason, an effective aluminum drill bit should provide sharp and stable cutting performance while allowing chips to leave the cutting zone efficiently.

HIBOO's general-purpose carbide drill bits are designed for machining multiple materials, including aluminum, carbon steel, alloy steel, steel components, and cast iron. This makes them suitable for manufacturers that process different workpiece materials and want to reduce tool changes and inventory requirements.

2. Solid Carbide or HSS: Which Drill Bit Is Better for Aluminum?

The material of the drill is one of the first factors to consider.

HSS drills can be suitable for general-purpose drilling, maintenance work, manual machining, and applications where cutting speeds are relatively moderate. They are economical and widely available.

For CNC machining and production environments, however, solid carbide drill bits provide important advantages. Carbide offers high hardness, rigidity, wear resistance, and excellent dimensional stability. These properties make carbide drills particularly suitable for high-speed and precision machining.

HIBOO uses carbide raw materials from recognized suppliers such as GESAC and controls the chemical composition, physical properties, and geometric consistency of the material before production. Its finished tools also undergo multiple inspection procedures to ensure consistent specifications and drilling performance.

3. How Does Drill Point Angle Affect Aluminum Drilling?

Point angle is another important factor when selecting a drill bit.

HIBOO's drill product range includes different point-angle options. A 118° tip angle is described as the most common configuration and is suitable for a wide range of materials. For harder materials, 135° or 140° geometries can provide better positioning and stability.

When drilling aluminum, a suitable point geometry can help the drill enter the workpiece smoothly and maintain stable cutting. However, point angle should not be considered independently. The optimal configuration also depends on the aluminum alloy, hole diameter, machine rigidity, drilling depth, and required hole tolerance.

For standard aluminum drilling, a properly engineered carbide drill with controlled cutting-edge geometry can provide a good balance between cutting efficiency and hole accuracy.

4. Should You Choose a Straight Shank Tungsten Steel Drill?

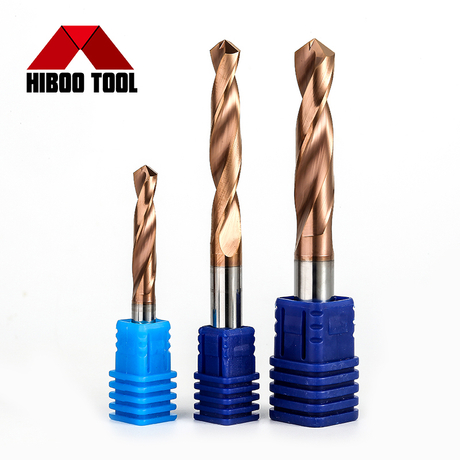

Straight Shank Tungsten Steel Drills are one of HIBOO's main drill categories.

Their rigidity and wear resistance make them suitable for stable, high-precision drilling operations. For aluminum components requiring standard through holes, clearance holes, or pilot holes, a straight-shank carbide drill can be a practical option.

This type of drill is especially useful when the hole is relatively short and external cooling is sufficient. It can also be integrated into standard CNC tool libraries, making it convenient for manufacturers managing multiple machining operations.

When selecting the diameter, shank configuration, total length, and cutting geometry, always match the tool with the machine spindle, workholding system, and actual hole requirements.

5. When Should You Use an Internal Coolant Drill for Aluminum?

For deeper holes, chip evacuation and heat management become increasingly important.

HIBOO offers Internal Coolant Drills with integrated coolant channels. According to the company's product information, these coolant channels help reduce heat buildup, improve chip evacuation, and extend tool life during deep-hole drilling.

For aluminum machining, internal coolant can be particularly useful when drilling deeper holes where chips have a longer distance to travel before leaving the workpiece.

HIBOO's drill range includes 3D, 5D, 8D, and 12D configurations, including models with internal cooling holes. The appropriate drill depth should be selected according to the required hole depth and the rigidity of the machining system.

As a general selection principle:

The actual recommended machining parameters should always be confirmed according to the specific tool, aluminum alloy, machine, and workpiece conditions.

6. What About Spot Drill Bits?

A good drilling process does not always begin with the final drill.

Spot drilling can be used to create an accurate starting position before the main drill enters the workpiece. HIBOO provides Spot Drill Bits designed for precise centering and positioning.

For CNC aluminum machining, a suitable spot drill can help reduce positioning errors and improve the consistency of subsequent drilling operations.

This is especially valuable when multiple holes must maintain accurate locations or when the workpiece has a surface condition that could cause the main drill to move during entry.

7. How Should You Choose the Drill According to Hole Depth?

Hole depth is one of the most important specifications when selecting an industrial drill bit.

A short hole generally provides easier chip evacuation because chips can leave the cutting zone quickly. As the hole becomes deeper, chip accumulation and tool deflection become greater concerns.

HIBOO's product range covers 3D, 5D, 8D, and 12D carbide drills, allowing manufacturers to choose different drilling lengths according to application requirements.

For deep-hole aluminum machining, buyers should pay particular attention to:

• Drill length-to-diameter ratio

• Internal or external coolant

• Chip evacuation capability

• Machine spindle rigidity

• Workpiece clamping

• Drill runout

• Hole tolerance

• Cutting parameters

Choosing a drill that is unnecessarily long can reduce rigidity, while selecting a drill that is too short may not reach the required hole depth.

8. Coated or Uncoated Drill Bits for Aluminum?

Coating is another consideration when purchasing carbide drills.

HIBOO's drill products can be supplied with coating or without coating depending on the product specification. For aluminum machining, the final selection should be based on the specific aluminum alloy, cutting speed, production volume, and desired tool life.

A coating is not automatically better simply because it increases wear resistance. Aluminum can generate adhesion and chip-sticking problems, so the compatibility between the coating, carbide substrate, cutting geometry, and machining parameters is critical.

For high-volume production, manufacturers should evaluate tool performance based on cost per hole and tool life rather than initial purchase price alone.

9. How to Choose the Best Drill Bit for Aluminum CNC Machining?

Before purchasing an aluminum drill bit, CNC machining companies should evaluate the following factors:

Aluminum Alloy

Different aluminum alloys have different machining characteristics. Identify the exact alloy and temper before choosing the tool.

Hole Diameter

Select the correct drill diameter according to the required hole size and tolerance.

Hole Depth

Determine whether a 3D, 5D, 8D, or 12D drill is appropriate for the application.

Cooling Method

For deeper holes and demanding production applications, consider an internal coolant drill.

Drill Geometry

Point angle, cutting-edge geometry, flute design, and overall tool construction all influence drilling performance.

Machine Condition

Tool runout, spindle accuracy, workholding rigidity, and machine capability should be considered before selecting high-performance carbide drills.

Production Volume

For high-volume CNC production, prioritize tool life, consistency, and cost per hole rather than tool purchase price alone.

10. Why Work with a Professional Drill Bit Manufacturer?

Choosing a reliable drill bit manufacturer is just as important as selecting the correct drill geometry.

HIBOO Tools has specialized in carbide cutting tools since 2009 and produces carbide end mills, drills, inserts, reamers, and customized cutting tools. The company uses imported 5-axis grinding machines and Zoller measuring and inspection equipment for tool manufacturing and inspection. Its reported monthly production capacity reaches up to 50,000 carbide tools, with more than 20,000 cutters in stock.

For aluminum machining customers, a professional supplier can provide more than standard drills. Technical consultation, customized diameters, different drill lengths, cooling configurations, point geometries, coatings, and application-specific solutions can help manufacturers achieve better results.

Conclusion

Choosing the best drill bit for aluminum depends on the aluminum alloy, hole diameter, depth, machine conditions, and cooling method. HIBOO offers solid carbide drills, straight shank drills, internal coolant drills, spot drills, and 3D, 5D, 8D, and 12D options to meet different CNC machining requirements. The right tool geometry can help improve hole quality, tool life, and machining efficiency.
