What Is A Ball End Mill And How Does Hiboo Tools Use It in Machining

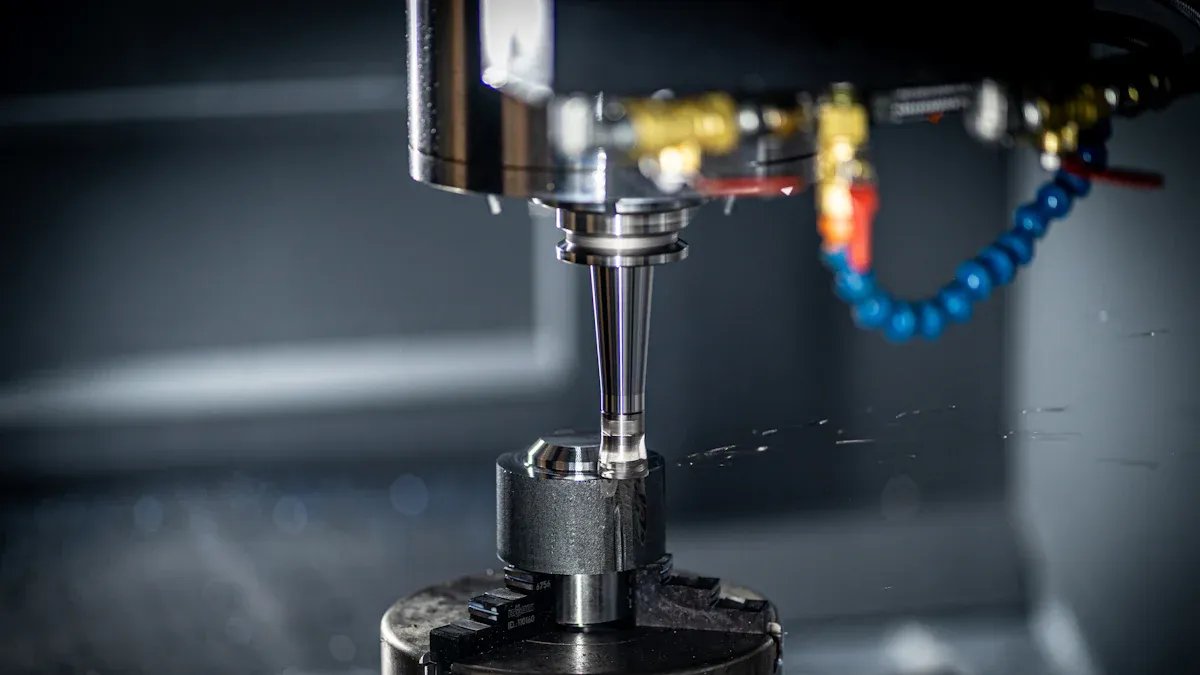

Image Source: pexels

A ball end mill has a rounded tip. This helps you cut smooth curves and detailed shapes. Flat or square end mills do not make smooth curves like this. Ball end mills help make curved surfaces look smooth. You use ball end mills for complex 3D shapes or when you want a nice finish.

• Ball end mills are great for:

• Cutting curved surfaces and tricky shapes

• Making hard 3D shapes for molds and dies

• Making smooth finishes in cars, planes, and medical tools

• CNC milling for art and detailed carving

You can trust hiboo tools at hiboo-tools.com. They have good ball nose end mills and ball nose endmill solutions for today’s milling needs.

Key Takeaways

• Ball end mills have a round tip. This helps them cut smooth curves. They can also make detailed 3D shapes. This makes them great for complex parts. They are also good for fine finishes.

• These tools work on many materials. They can cut metals, plastics, and composites. Ball end mills come in different sizes. They also have different flute counts and coatings. You can pick the right one for your job.

• Ball end mills make smooth surfaces. They help lower tool stress. They save time by covering more area. You need fewer passes to finish the job. This is very helpful in advanced multi-axis machines.

• Hiboo tools sells high-quality ball nose end mills. These are made from strong carbide. They have special coatings and polished edges. This gives better accuracy and longer tool life.

• Picking the right ball end mill is important. You should choose the right size, flute count, and coating. Taking care of your tools helps you get the best results. It also keeps your tools sharp.

Ball End Mill Basics

Structure and Design

A ball end mill is a cutting tool used in milling. People also call it a ball nose end mill. Its tip is round like a ball. This shape helps you make smooth curves and 3D shapes. You can work with high accuracy.

Ball end mills come in many sizes and materials. They have different parts that help them work well. Here is a table that shows the main features:

You can pick 2-flute or 4-flute ball end mills. Two flutes are good for rough work and soft metals like aluminum. Four flutes give a better finish and are stronger for hard metals like steel. The flute length changes how deep you can cut. Shorter flutes make the tool more steady and precise.

The shape of a ball end mill helps move chips away and keeps it cool. The round tip touches the material gently. This means less bending and a smoother finish. The flute shape and angle also help move chips out and cool the tool.

Tip: For the best results, use carbide ball end mills with special coatings. These tools last longer and work better on tough materials.

Key Differences

You may wonder how ball end mills are different from flat or square end mills. The biggest difference is the tip shape. Ball end mills have a round, dome-shaped tip. Flat end mills have a flat tip with sharp corners.

Here are some key differences:

• Ball end mills are great for curved surfaces, 3D shapes, and rounded grooves. They make smooth, wavy finishes on tricky shapes.

• Flat end mills are best for flat surfaces, sharp corners, and straight sides. They cut fast and leave crisp edges.

• Ball end mills are perfect for finishing detailed 3D parts, like molds and dies, where smooth changes matter.

• Flat end mills are better for cutting out big areas or making slots and pockets with sharp corners.

When you use a ball end mill, you can make soft curves and detailed shapes. Flat end mills cannot do this. Ball end mills are slower at cutting flat areas, but they are best for tricky shapes. You often use ball end mills in advanced machines for parts that need lots of detail.

Note: If you need sharp corners and flat areas, use a flat end mill. For smooth curves and 3D details, pick a ball end mill.

Ball End Mills in Milling

Main Uses

Ball end mills help you make hard 3D shapes. They are good for smooth surfaces and detailed designs. Flat end mills cannot do this kind of work. Ball end mills are used for 3D profiling, contouring, and sculpting. You can use them for side milling and face milling. They also work for drilling shallow holes with a round bottom.

Ball end mills are important in many jobs. Here are some ways people use them:

• Mold and die making: You shape plastic molds and stamping dies. You also make die-casting molds with high accuracy. Ball end mills help you rough, semi-finish, and finish tricky cavities.

• Aerospace: You make turbine blades and engine casings. These parts need smooth curves and complex shapes.

• Automotive: You create engine covers and intake manifolds. You also make other parts from aluminum or titanium. These parts often have detailed designs and need 3D profiling.

• Medical devices: You make artificial joints and implants. Ball end mills help you get smooth surfaces and no burrs.

• Artistic and custom work: You carve patterns, make jewelry, and create models or building parts.

Tip: Ball end mills can follow tricky tool paths in multi-axis machines. You can reach deep pockets and tight curves easily.

You can also use ball end mills for finishing. They trace the final shape and leave a smooth surface. This means you do not need much extra polishing.

Advantages

Ball end mills have many good points. They are a top pick for many milling jobs. You get accuracy when shaping curves and pockets. The round tip helps you avoid steps that flat end mills leave.

Here are the main benefits:

1. Ball end mills give smooth finishes. The round tip glides over the material. You spend less time polishing by hand.

2. You feel less cutting force. This means less stress on the tool and less bending. You can work on small or detailed parts safely.

3. Ball end mills are flexible. They work with metals, plastics, and composites. You can pick different coatings and shapes for your material.

4. Long-neck ball end mills reach deep pockets and cavities. You can machine small features in molds and dies.

5. Ball end mills are great for finishing. You can trace tricky shapes with few tool marks.

6. You get help from multi-axis machining. Ball end mills keep touching the surface. This helps you avoid sharp turns and keeps the finish smooth.

7. You save time. Ball end mills with big radii cover more area each pass. You change tools less and set up less, especially with advanced software and 5-axis machines.

Note: Ball end mills are very flexible. You can use them in many fields and for many materials. Their design works for both simple and advanced milling.

Ball end mills help you get accuracy, flexibility, and speed. You can make hard 3D shapes, detailed designs, and smooth surfaces with less work.

hiboo tools and Ball Nose End Mills

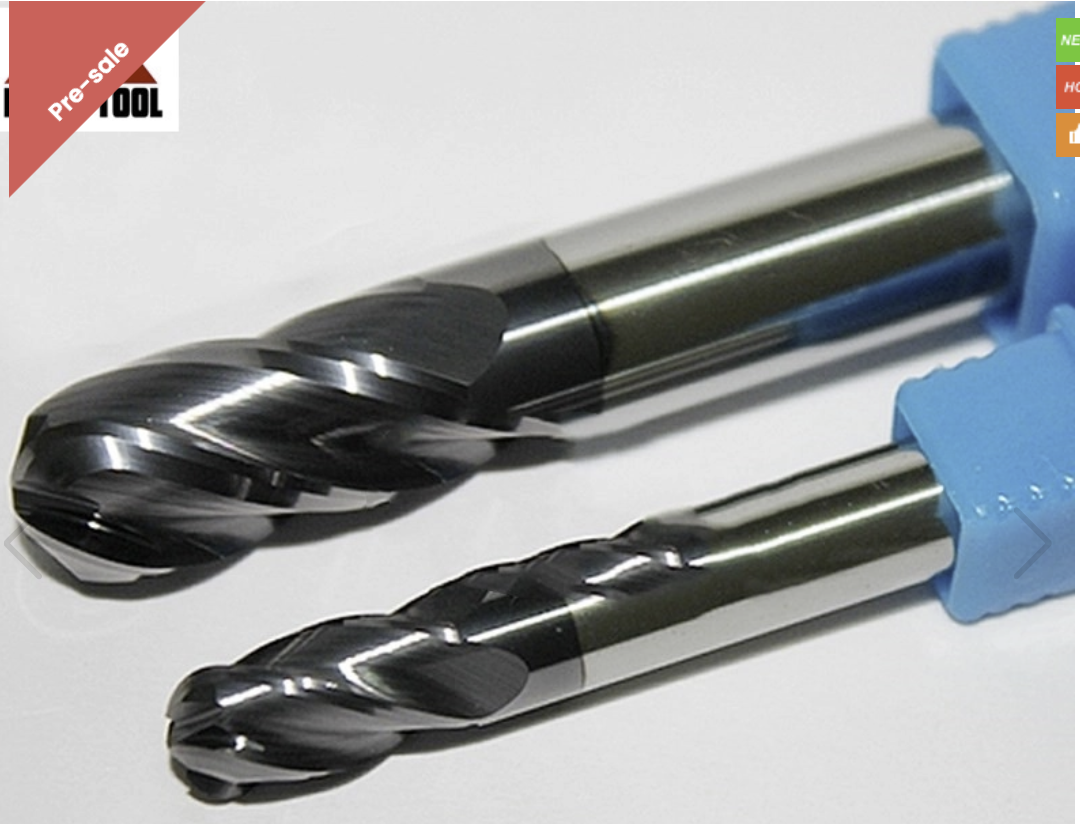

Image Source: pexels

Product Features

When you pick hiboo tools, you get strong ball nose end mills. These tools have a round cutting tip. This tip helps you make tricky 3D shapes and detailed molds. Hiboo tools uses carbide that is tough and lasts a long time. The carbide has tiny grains and bends without breaking. This makes the ball nose endmill hard to break.

Hiboo tools uses special ways to make their tools better. They use a two-blade tungsten carbide design. This makes the tool stiff and helps it cut more accurately. It also stops the tool from shaking and wearing out fast. The bronze coating keeps the tool cool and stops stuff from sticking. This helps chips move away and gives a smooth finish.

Hiboo tools polishes the cutting edges of each tool. This makes the finish look great, especially on aluminum or copper. Every tool is checked many times with Zoller machines. You can trust that these tools are the right size and made from good materials.

Tip: Hiboo tools lets you order custom ball nose end mills. You can get solid carbide ball nose or other types made just for your job.

Industry Solutions

You can use hiboo tools’ ball nose end mills in many jobs. These tools work well for making molds, airplane parts, car parts, and medical devices. If you need to cut tricky 3D parts or want a smooth finish, you can find the right tool.

Hiboo tools’ factory has SGS and ISO9001 certificates. You get good quality with samples before and checks after making the tools. They use CNC grinding machines like ANCA and Walter. This makes sure every tool is made well.

Go to hiboo-tools.com to see all the ball nose end mills and tools. You can find tools that help you do better work and finish hard projects.

Choosing a Ball Nose Endmill

Selection Tips

When you choose a ball nose endmill, you want the best tool for your job. Start by looking at the cutter diameter. Small diameters help you reach tight spots and make fine details. Large diameters give you more strength and work well for bigger jobs.

Next, check the length of the tool. Shorter tools are more stable and do not bend as much. Use the shortest tool that can reach your cutting area. If you need to cut deep, pick a tool with a necked reach.

Think about the number of flutes. Fewer flutes, like two or three, help remove chips quickly in soft materials. More flutes, like four or more, give a smoother finish in hard metals. The right flute count depends on your material and if you want to rough or finish.

Coatings matter, too. Coatings like TiN, TiCN, and TiAlN make your tool last longer. They help the tool resist heat and wear. For steel, TiCN or TiAlN coatings work well. For softer metals, you might use ZrN or no coating.

Always match your tool to the material. Harder materials need tougher tools and coatings. Softer materials need tools that clear chips fast. Use the right speeds and feeds to avoid overheating and tool wear.

Tip: If you are not sure which tool to pick, ask your supplier or check with experts. They can help you choose the best ball nose endmill for your project.

Maintenance

Good maintenance keeps your tools sharp and working well. Check your tools often for wear or damage. Use a magnifier to spot small chips or cracks. Measure the tool to make sure it has not worn down too much.

Clean your tools after each use. Remove chips and dust with a soft brush or compressed air. Store each tool in a protective case or foam-lined box. This stops the tips from chipping and keeps them dry.

Sharpen your tools when they get dull. Keep the original angles for the best cutting. After sharpening, clean the tool again and check the surface finish. If needed, re-coat the tool to protect it from heat and wear.

Use coolants or lubricants during cutting. This reduces heat and helps the tool last longer. Make sure your tool holder is tight and does not let the tool move or vibrate.

Note: Regular checks and careful storage help your tools last longer and keep your cuts smooth.

Ball end mills help you create smooth, complex shapes in many industries. You see them used for 3D contouring, profile milling, and finishing tight surfaces. Hiboo tools shows strong commitment to quality by using sharp cutting edges, polished flutes, and strict inspections.

For better machining results:

• Pick the right tool material and coating for your job.

• Choose the correct flute count and tool size.

• Keep your tools clean and well-maintained.

You can explore more solutions and product options at hiboo-tools.com.

FAQ

What materials can you cut with a ball nose end mill?

You can cut metals like steel, aluminum, and copper. You can also use it for plastics and composites. Always match your tool and coating to the material for the best results.

How do you get a smooth finish with a ball nose end mill?

Use the right speeds and feeds. Choose a tool with polished flutes. Make sure your machine is stable. Clean your tool often to avoid buildup.

When should you use a ball nose end mill instead of a flat end mill?

Pick a ball nose end mill when you need to make curved surfaces or 3D shapes. Use it for finishing work on molds, dies, or detailed parts.

How do you keep your ball nose end mill sharp?

Check your tool for wear after each use. Clean it with a soft brush. Store it in a dry, safe place. Sharpen it when you see dull edges.

Can you use a ball nose end mill for deep pockets?

Yes, you can. Choose a long-neck tool for deep pockets. Make sure the tool is stable and does not bend during cutting.
