How to Choose the Right Chamfering End Mill

When it comes to precision machining, every tiny detail matters. One wrong move or the wrong tool, and your finish could go from perfect to problematic. That’s where the Chamfering End Mill steps in—a small but mighty tool that makes a huge difference in the quality of your work. But with so many options available, how do you choose the right chamfering end mill for your project? Let’s break it down step by step.

---

Table 1: Quick Overview — Key Factors for Choosing a Chamfering End Mill

---

Table 2: Common Chamfering Angles and Their Applications

---

What Is a Chamfering End Mill?

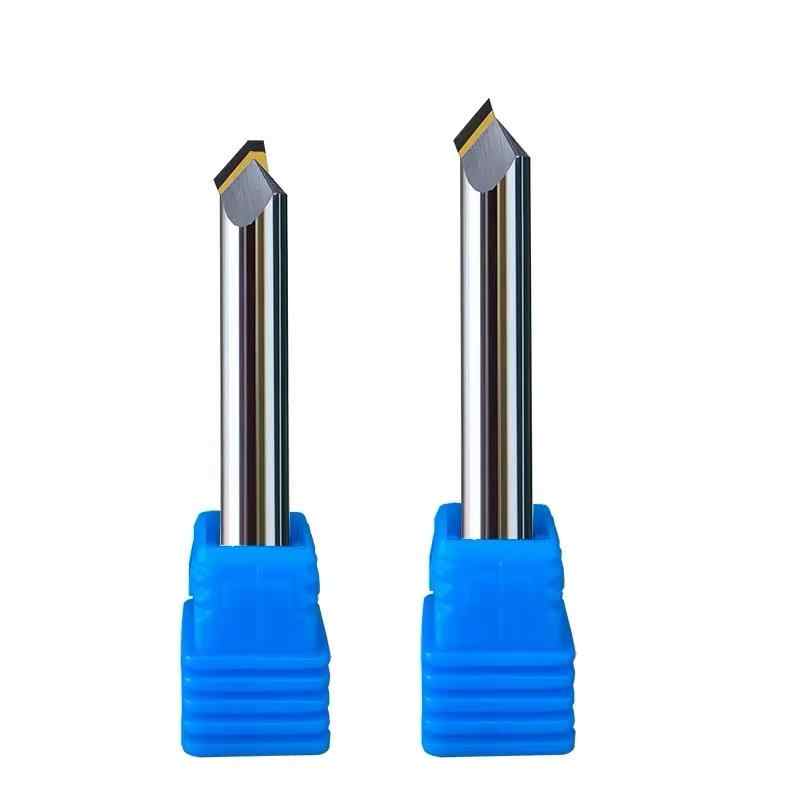

Let’s start with the basics. A Chamfering End Mill is a cutting tool designed to create a beveled edge (or chamfer) on the workpiece. This tiny bevel might look like a small detail, but it’s essential for removing burrs, improving assembly fit, and giving parts a clean, professional look.

Think of it like polishing the corners of a diamond—the structure might be strong, but that final touch brings perfection.

---

Why Choosing the Right Chamfering End Mill Matters

You might be thinking, “A chamfer is just a small angle—how hard could it be?” Well, here’s the catch: using the wrong end mill can lead to chatter, tool wear, or poor surface finish. And in industries like aerospace, automotive, or mold making, even a small imperfection can mean big losses.

Choosing the right chamfering end mill ensures:

• Smooth, burr-free edges

• Consistent angles

• Longer tool life

• Higher productivity

It’s not just about cutting—it’s about cutting smart.

---

1. Know Your Workpiece Material

Before anything else, you need to understand what you’re cutting. The material dictates what kind of chamfering end mill will work best.

• Aluminum or Soft Metals: Go for uncoated carbide or TiB2-coated tools. These reduce material sticking (built-up edge).

• Stainless Steel or Hard Alloys: Choose TiAlN-coated carbide for superior heat resistance.

• Plastics and Composites: High-Speed Steel (HSS) works great due to its flexibility and lower cutting speed requirements.




  Tip: Carbide end mills offer better wear resistance but can be brittle; HSS is more forgiving for less rigid setups.

2. Pick the Right Chamfer Angle

The chamfer angle determines how wide and deep the beveled edge will be.

Here’s how to choose:

• 30° for fine detailing and light chamfers.

• 45° for general-purpose work—this is the most popular.

• 60°–90° for countersinking holes or creating sharp angles.

If you’re unsure, start with a 45° chamfering end mill—it’s versatile, durable, and widely used in workshops across the globe.

---

3. Consider the Tool Material

Chamfering end mills come in several materials, each with unique advantages:

• Carbide: Extremely hard, ideal for high-speed machining and precision work.

• High-Speed Steel (HSS): Affordable and flexible; perfect for beginners or softer materials.

• Cobalt (HSS-Co): A middle ground—stronger than HSS and more heat-resistant.

If your production involves long runs or tough materials, carbide is your best friend. For general-purpose jobs, HSS gives a solid performance without breaking the bank.

---

4. Check the Coating

Tool coatings aren’t just for looks—they make a huge difference in performance and lifespan.

• TiN (Titanium Nitride): Boosts hardness and reduces friction.

• TiAlN (Titanium Aluminum Nitride): Great for high-temperature applications.

• AlTiN: Offers superior oxidation resistance—great for stainless steel and cast iron.

• Uncoated: Best for non-ferrous materials like aluminum or brass.

Choosing the right coating can mean fewer tool changes, better finishes, and lower costs in the long run.

---

5. Mind the Number of Flutes

The number of flutes (cutting edges) affects chip evacuation and surface quality.

• 2-Flute End Mills: Best for softer materials; excellent chip clearance.

• 3- or 4-Flute End Mills: Better finish for harder materials; less chip space but more strength.

Think of flutes like lanes on a highway—more lanes allow smoother traffic flow, but sometimes, fewer wide lanes are better for bulky “traffic” (chips).

---

6. Choose the Correct Shank Diameter

Shank size impacts tool rigidity and compatibility with your machine collet.

• Larger shanks = more stability (great for heavy-duty work).

• Smaller shanks = flexibility and lighter cuts.

Before buying, double-check your machine’s collet or holder specs—it’s the difference between a snug fit and a shaky cut.

---

7. Think About the Cutting Environment

Cutting dry? Using coolant? These conditions influence tool choice and coating selection.

• Dry machining: Requires coated tools (TiAlN or AlTiN) for heat protection.

• Wet machining: You can go with uncoated or TiN-coated tools since coolant removes heat efficiently.

Remember, the wrong environment can burn out even the toughest chamfering end mill faster than you’d think.

---

8. Match the Tool Geometry to the Task

Tool geometry—like cut length, tip design, and flute shape—determines how efficiently material is removed.

• For deburring, use shorter cutting edges.

• For deep chamfers, longer flutes help maintain smooth cuts.

• For precision work, look for micro-grain carbide and sharp cutting edges.

---

9. Budget vs. Performance: Find the Balance

Let’s be real—everyone wants top performance at a low cost. But the truth is, cheap tools often cost more in the long run due to breakage or poor results.

If you’re machining frequently, invest in a quality carbide chamfering end mill with a protective coating. It’ll pay for itself through consistent performance and fewer replacements.

For hobbyists or small-scale operations, HSS tools are perfectly fine for light-duty work.

---

10. Don’t Forget Machine Compatibility

Even the best chamfering end mill won’t perform well if it doesn’t match your machine’s capabilities.

Check for:

• Spindle speed range

• Collet size

• Feed rate capacity

• Machine rigidity

The goal is harmony—your tool and machine should work together like a well-rehearsed duo, not a mismatched band.

---

Common Mistakes When Choosing a Chamfering End Mill

Let’s face it—we’ve all made these mistakes at some point:

1. Ignoring coating compatibility (e.g., using TiAlN on aluminum—bad idea).

2. Choosing the wrong angle for the job.

3. Overlooking tool wear until it’s too late.

4. Using the wrong feed or speed for the material.

5. Mixing metric and imperial shanks accidentally.

Avoid these slip-ups, and you’ll save yourself a lot of headaches (and broken tools).

---

How to Extend Tool Life

Want your chamfering end mill to last longer? Try these simple habits:

• Always use proper coolant or air blast to remove chips.

• Reduce spindle speed slightly for hard materials.

• Avoid sudden plunging—enter gradually.

• Regularly inspect your tools for wear and resharpen when needed.

Think of it like maintaining a car—take care of it, and it’ll take care of you.

---

When to Replace a Chamfering End Mill

You’ll know it’s time when:

• You see burn marks or rough finishes on the workpiece.

• The cutting sound changes (a high-pitched screech often means trouble).

• You feel increased vibration or chatter.

Never push a dull tool—it not only ruins your finish but also stresses your machine.

---

Expert Tips for Perfect Chamfers Every Time

1. Use trial cuts on scrap material first.

2. Adjust feed rate and RPM gradually until you find the sweet spot.

3. Keep your tool clean and dry after use.

4. Store end mills in protective holders to avoid chipping edges.

5. If precision matters, use digital measuring tools to verify chamfer depth.

---

Final Thoughts

Choosing the right Chamfering End Mill isn’t rocket science—but it’s definitely an art. By considering your material, angle, coating, and tool geometry, you can achieve flawless finishes, longer tool life, and better efficiency.

Remember: your chamfer is the final touch your part deserves. So why settle for less? Invest in the right tool, and your projects will shine—literally and figuratively.

---

In Summary: Key Takeaways

• Always match your tool material and coating to the workpiece.

• 45° chamfering end mills are the most versatile choice.

• Carbide tools outperform HSS in long-term use.

• Pay attention to flutes, shank size, and angle for best results.

• Proper maintenance equals longer life and smoother cuts.
