Bull Nose End Mill vs Ball Nose End Mill: What You Need to Know

Choosing the right cutting tool is one of the most important decisions in CNC machining. The correct end mill not only affects machining efficiency but also determines surface finish, tool life, production cost, and overall manufacturing quality.

Among various CNC cutting tools, Corner Radius End Mills (also known as Bull Nose End Mills) and Ball Nose End Mills are two widely used carbide tools. Although both feature rounded cutting edges, their designs, machining capabilities, and applications are significantly different.

For CNC manufacturers, mold makers, and machining professionals, understanding the difference between Corner Radius End Mill vs Ball Nose End Mill helps select the right tool for each machining operation.

As a professional carbide end mill manufacturer, Hiboo provides high-performance CNC cutting tools, including corner radius end mills, ball nose end mills, and customized carbide solutions for global machining industries.

What Is a Corner Radius End Mill (Bull Nose End Mill)?

A Corner Radius End Mill, commonly called a Bull Nose End Mill, is a type of carbide end mill that combines a flat bottom cutting edge with rounded corners.

Unlike a square end mill with sharp edges, the corner radius design strengthens the cutting edge and reduces stress concentration during machining.

A typical corner radius end mill consists of:

• Flat bottom cutting surface

• Rounded corner radius

• Multiple flute cutting edges

• Solid carbide construction

The corner radius can vary according to machining requirements, such as:

• R0.2

• R0.5

• R1.0

• R2.0

This design makes the tool suitable for high-efficiency machining while maintaining good surface quality.

Key Features of Bull Nose End Mill

1. Stronger Cutting Edge

The biggest advantage of a carbide corner radius end mill is its improved cutting strength.

The rounded corner reduces sharp edge weakness, helping to:

• Prevent edge chipping

• Reduce cutting impact

• Extend tool life

• Improve machining stability

Compared with traditional square end mills, bull nose end mills can withstand heavier cutting conditions.

2. Higher Material Removal Efficiency

Because Corner Radius End Mills have a flat bottom cutting area, they can remove material efficiently during machining.

They are widely used for:

• Pocket machining

• Slot machining

• Profiling

• Rough machining

For manufacturers requiring higher productivity, corner radius end mills provide excellent performance.

3. Excellent Machining Stability

The reinforced corner structure helps reduce vibration and improve cutting stability.

This makes them ideal for:

• Mold roughing

• Semi-finishing operations

• General CNC milling applications

What Is a Ball Nose End Mill?

A Ball Nose End Mill is a carbide milling cutter with a fully rounded spherical cutting tip. Unlike a Corner Radius End Mill, which has a flat bottom with rounded corners, a Ball Nose End Mill has a completely curved cutting surface.

Its unique geometry makes it ideal for machining complex shapes and three-dimensional surfaces.

Common applications include:

• Mold cavities

• Die manufacturing

• Aerospace components

• Medical parts

• Precision 3D machining

Key Features of Ball Nose End Mills

1. Excellent 3D Contouring Capability

The spherical cutting edge allows Ball Nose End Mills to smoothly machine curved surfaces.

They are widely used in:

• CNC contour machining

• 3D surface finishing

• Complex geometry machining

2. Superior Surface Finish

Ball Nose End Mills are especially valuable for finishing operations. They can produce:

• Smooth curved surfaces

• High-quality mold finishes

• Precise contour profiles

This is why carbide ball nose end mills are commonly used in mold and die industries.

3. Ideal for Complex Components

Industries requiring complex geometries often rely on carbide ball nose end mills.

Typical applications include:

• Automotive molds

• Aircraft components

• Precision medical parts

• High-end mechanical components

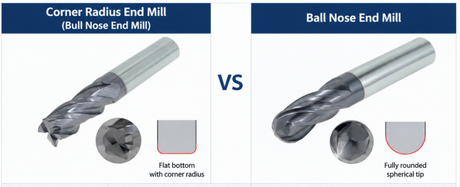

Bull Nose End Mill vs Ball Nose End Mill: Key Differences

Bull Nose End Mill vs Ball Nose End Mill: Application Comparison

When Should You Use a Bull Nose End Mill?

A Bull Nose End Mill is the better choice when machining requires strength, stability, and efficient material removal.

1. Pocket Machining

Bull Nose End Mills are suitable for machining pockets because the flat bottom design provides efficient cutting performance.

Advantages:

• Faster material removal

• Stable cutting

• Better tool durability

2. Mold Rough Machining

During mold manufacturing, large amounts of material need to be removed before finishing.

Bull Nose End Mills provide:

• Strong cutting capability

• Longer tool life

• Better resistance to impact

3. Semi-Finishing Operations

For manufacturers looking for a balance between efficiency and surface quality, Bull Nose End Mills are an excellent solution.

When Should You Use a Ball Nose End Mill?

A Ball Nose End Mill is recommended when surface quality and complex geometry are the priority.

1. 3D Surface Machining

Ball nose cutters are widely used for:

• Mold cavities

• Curved surfaces

• Free-form components

2. Precision Finishing

When the final surface finish is critical, ball nose end mills provide smoother machining results.

3. Complex Geometry Components

Industries such as aerospace and medical manufacturing often use ball nose end mills for precision components.

Corner Radius End Mill vs Ball Nose End Mill: Which One Should You Choose?

There is no universal answer because the best tool depends on machining requirements.

Choose a Corner Radius End Mill If You Need:

• Higher material removal efficiency

• Stronger cutting performance

• Better tool durability

• Flat surface machining

• Roughing and semi-finishing capability

Choose a Ball Nose End Mill If You Need:

• Smooth 3D surfaces

• Excellent finishing quality

• Complex contour machining

• Precision mold finishing

Can You Use Both Corner Radius and Ball Nose End Mills in One CNC Process?

Yes. In many mold manufacturing applications, both tools are used together to achieve higher productivity and better surface quality.

A common machining process is:

Step 1: Rough Machining

Tool: Corner Radius End Mill

Purpose:

• Remove large amounts of material

• Improve machining efficiency

Step 2: Semi-Finishing

Tool: Corner Radius End Mill

Purpose:

• Prepare surface for finishing

• Maintain machining stability

Step 3: Final Finishing

Tool: Ball Nose End Mill

Purpose:

• Achieve smooth curved surfaces

• Improve final surface quality

How to Choose the Right Carbide End Mill for CNC Machining?

Selecting the right carbide end mill requires considering multiple factors, including workpiece material, machining operation, tool coating, and cutting requirements.

For CNC manufacturers, choosing a suitable cutting tool can significantly improve machining efficiency, extend tool life, and reduce production costs.

1. Consider the Workpiece Material

Different materials require different carbide cutting tool designs and geometries.

Aluminum Machining

For aluminum machining, manufacturers usually choose high-performance aluminum end mills with optimized flute designs for efficient chip evacuation.

Recommended tools:

• Aluminum End Mills

• 3 Flute Carbide End Mills

• High-speed CNC Milling Cutters

Hardened Steel Machining

For hardened steel applications, high hardness carbide tools are recommended to maintain wear resistance and machining stability.

Recommended tools:

• HRC60 Carbide End Mills

• HRC65 Carbide End Mills

• Coated Solid Carbide Tools

Stainless Steel Machining

Stainless steel requires cutting tools with good heat resistance and wear resistance.

Recommended solutions:

• Coated Carbide End Mills

• Variable Helix End Mills

• High-performance CNC Cutting Tools

2. Consider the Machining Operation

The machining process determines which end mill design provides the best performance.

• Roughing: Choose strong cutting tools such as Corner Radius End Mills.

• Finishing: Choose Ball Nose End Mills for better surface quality.

• Slotting: Select suitable flute designs for efficient chip removal.

• Profiling: Choose tools according to workpiece geometry.

3. Select the Proper Tool Coating

Coating technology plays an important role in improving tool performance.

Common carbide end mill coatings include:

• TiAlN Coating

• AlTiN Coating

• DLC Coating

Proper coating selection can improve:

• Wear resistance

• Heat resistance

• Tool life

• Machining stability

4. Consider the Number of Flutes

2 Flute End Mill

Two-flute end mills provide excellent chip evacuation and are commonly used for materials requiring efficient cutting performance.

4 Flute End Mill

Four-flute end mills provide better surface finish and are widely used for precision CNC machining applications.

Why Choose Hiboo as Your Carbide End Mill Manufacturer?

Hiboo is a professional carbide end mill manufacturer specializing in high-performance CNC cutting tools for global machining industries.

With advanced manufacturing technology and strict quality control processes, Hiboo provides reliable tooling solutions for CNC machining, mold manufacturing, automotive components, aerospace parts, and precision industries.

Complete Carbide Tool Solutions

Hiboo offers a wide range of precision cutting tools, including:

• Corner Radius End Mills

• Bull Nose End Mills

• Ball Nose End Mills

• Square End Mills

• Aluminum End Mills

• Custom Carbide Tools

Custom CNC Cutting Tool Manufacturing

Hiboo supports customized carbide tool solutions based on customer requirements, including:

• Tool diameter customization

• Flute design optimization

• Special geometry development

• Coating selection

Reliable Manufacturing Capability

With professional production equipment, precision grinding technology, and strict inspection standards, Hiboo delivers stable and durable cutting tools for customers worldwide.

FAQ About Corner Radius End Mill and Ball Nose End Mill

Q1: Is a Corner Radius End Mill the same as a Bull Nose End Mill?

Yes. In CNC tooling applications, Corner Radius End Mills are commonly called Bull Nose End Mills because both feature flat bottoms with rounded cutting corners.

Q2: What is the difference between a Corner Radius End Mill and a Ball Nose End Mill?

A Corner Radius End Mill has a flat bottom with rounded corners, while a Ball Nose End Mill has a fully spherical cutting tip. Corner radius tools are better for efficient material removal, while ball nose tools are designed for curved surface finishing.

Q3: Which end mill is better for mold machining?

Corner Radius End Mills are usually used for roughing and semi-finishing operations, while Ball Nose End Mills are preferred for final finishing of complex curved surfaces.

Q4: Are Corner Radius End Mills stronger than Ball Nose End Mills?

Yes. The reinforced corner radius structure provides higher cutting strength and better resistance to edge damage compared with fully rounded ball nose designs.

Q5: Can one tool replace both Corner Radius and Ball Nose End Mills?

No. Each tool has different advantages. Many CNC manufacturers use Corner Radius End Mills for rough machining and Ball Nose End Mills for finishing to achieve the best balance between efficiency and surface quality.
