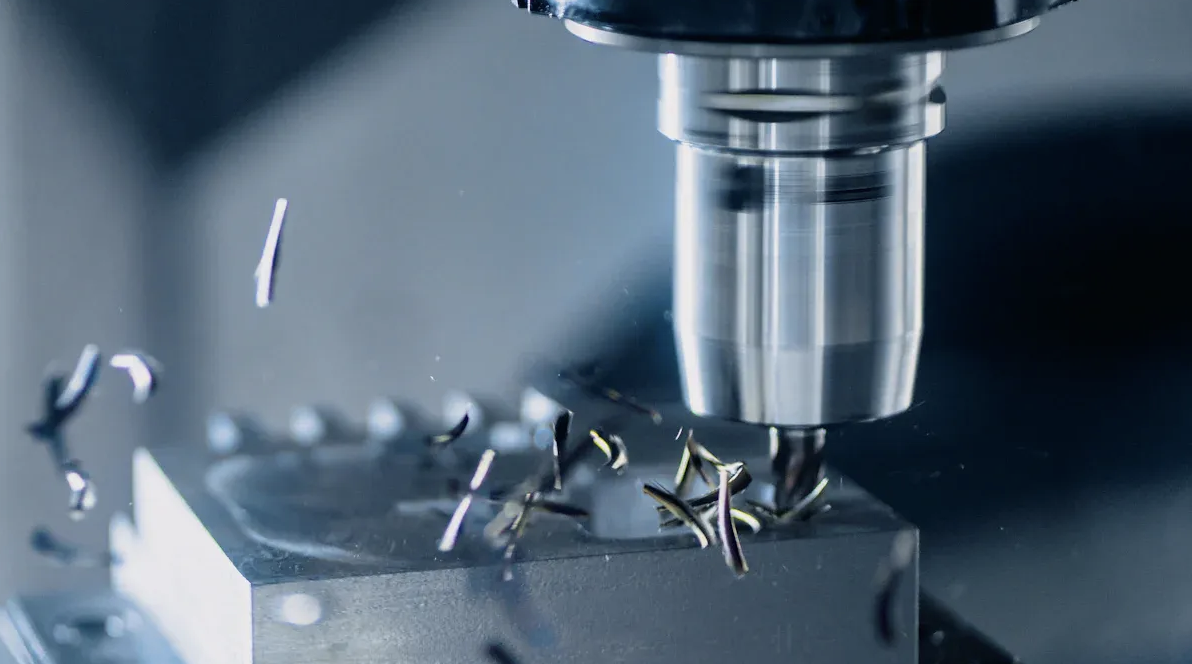

End Mill Selection Guide for Aluminum Machining

Image Source: pexels

When cutting aluminum, picking the right end mill is important. Aluminum is soft and sticky, so tool choice matters. The wrong tool can cause rough surfaces or chips to stick. Use tools made for aluminum to cut smoothly and last longer. Knowing end mill features helps improve cutting and get great results.

Key Takeaways

• Use carbide end mills for cutting aluminum. They last longer, cut quicker, and give smoother finishes than HSS tools.

• Pick the right flute design to clear chips better. Tools with 2-3 flutes work well for aluminum, stopping chip buildup and making cleaner cuts.

• Try coatings like Zirconium Nitride (ZrN) or Diamond-Like Carbon (DLC). These coatings lower friction and wear, helping tools last longer.

• Match the end mill shape to your job needs. High-helix flutes make smooth cuts, and the right flute count balances speed and control.

• Test tools on scrap material before starting production. This finds the best mix of durability and cost, saving time and cutting waste.

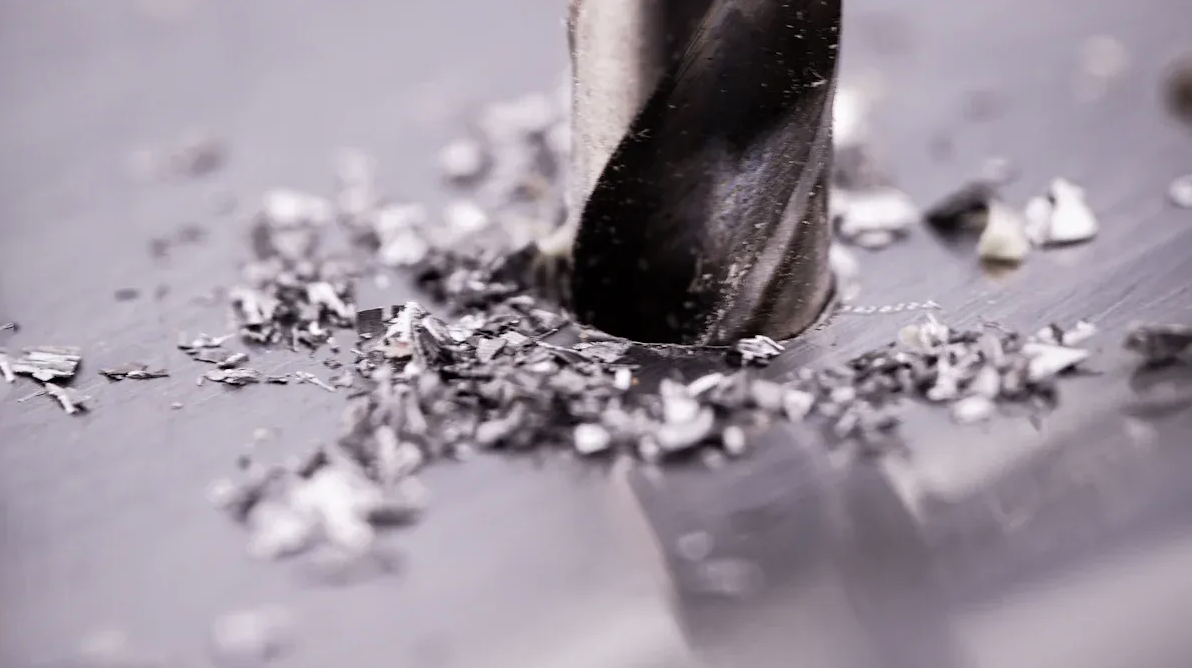

Material Selection for Aluminum End Mills

Image Source: pexels

Why Carbide is Ideal for Aluminum

Carbide end mills work best for cutting aluminum. They are harder and last longer than other tools. This means they stay sharp even when cutting fast. Carbide also handles heat well, so cuts stay accurate without bending.

For aluminum, you need tools that cut quickly and leave smooth surfaces. Carbide end mills do this better with less bending. Tests by OSG Tap and Die show uncoated coarse-grained carbide tools work better than coated ones at high speeds.

Here’s a simple comparison of carbide and HSS tools:

Comparing Carbide and High-Speed Steel (HSS)

Carbide and HSS tools perform very differently. Carbide tools cut faster and feed quicker, which is great for aluminum. HSS tools cost less but wear out faster, especially with tough jobs.

Carbide tools also make smoother cuts, which is important for precise work. HSS tools bend more, leaving rougher surfaces. For aluminum 6061, studies show carbide tools with MQL can make surfaces 20% smoother than dry cutting.

Tip: For high-speed aluminum cutting, uncoated coarse-grained carbide tools often work best.

Balancing Durability and Cost

Durability and cost matter when picking tools for aluminum. Carbide tools last longer but cost more. For small jobs or tiny tools, testing cheaper tools on scrap can save money.

Keeping vibrations low also helps tools last longer. Balanced tools cut better and protect your machine. Cheaper tools may seem good, but they can cost more later if they waste time or make bad cuts.

Note: End mills affect costs not just by price but also by how long they take to cut. Pick tools that balance cost and performance for the best results.

Coatings for Aluminum End Mills

Why Coatings Matter in Aluminum Cutting

Coatings help tools work better when cutting aluminum. They lower friction, so less heat is made. This keeps the tool sharp and reduces wear. Coatings also stop chemical reactions that cause material to stick to the tool.

In industries like aerospace, coatings make aluminum parts last longer. They protect against damage and rust, even in tough conditions. For example, anodizing adds a strong layer that resists wear and rust. This helps tools and parts stay reliable for a long time.

Top Coatings for Aluminum (e.g., ZrN, DLC)

Picking the right coating improves how well your tool works. Some great coatings for aluminum are:

• Zirconium Nitride (ZrN): It stops aluminum from sticking and resists wear.

• Diamond-Like Carbon (DLC): This coating is very hard and reduces friction, great for fast cutting.

• Titanium Diboride (TiB2): Made for aluminum, it reduces wear and makes tools last longer.

Studies show coatings like Titanium Aluminum Nitride (TiAlN) can make tools last four times longer. They also let you cut faster, boosting productivity by 30%.

Making Tools Last Longer with Coatings

Coatings not only help tools cut better but also last longer. For example, Titanium Nitride (TiN) makes tools harder and less likely to wear out. Titanium Carbonitride (TiCN) works well in high heat, while Aluminum Chromium Nitride (AlCrN) resists heat and wear even better.

Research proves coatings reduce tool wear. TiCN coatings cut tool wear by 40% with MQL and by 24% in dry cutting. This means better results and lower tool costs.

Tip: Choose a coating based on your cutting needs. The right one saves money and gives better results.

Flute Design in Aluminum End Mills

Why Chip Clearance Matters in Aluminum Cutting

Chip clearance is very important when cutting aluminum. Aluminum makes long, sticky chips that can block the cutting area. If chips are not cleared, it causes problems. The flute design of an end mill helps remove these chips. Good rake and clearance angles make cutting easier and smoother.

Studies show flute count and clearance angle help clear chips. End mills with 2-3 flutes work well for aluminum. They give enough space for chips to escape, even at fast speeds. A clearance angle of 6° to 10° lowers friction and stops tool vibration, giving cleaner cuts.

Tip: Pick an end mill with a flute design that clears chips well. This avoids chip buildup and improves cutting.

Picking Between 2-Flute and 3-Flute End Mills

Choosing the right flute count is key for aluminum cutting. Both 2-flute and 3-flute tools have their own uses.

• 2-Flute End Mills:
  These tools clear chips best, making them great for rough cuts. They have bigger flute spaces, so chips don’t clog, even in deep cuts.

• 3-Flute End Mills:
  These tools balance chip clearance and cutting speed. They cut faster and remove material quickly while staying stable. Many users see better results with 3-flute tools. For example:

• One machinist used a 3-flute tool at 12,000 RPM and 240 IPM.

• Another user saved 45 seconds per cycle by switching to a 3-flute tool.

  Note: Use 2-flute tools for rough cuts and 3-flute tools for finishing or fast cutting.

Flute Design for Better Speed and Cutting

The flute design affects how fast and well a tool cuts. A good design reduces bending, improves accuracy, and clears chips easily. The table below shows how flute features improve cutting:

For regular cutting, 2-3 flutes work best to clear chips. For small tools or tough jobs, 4-5 flutes can last much longer.

Tip: Match the flute design to your job. Fewer flutes are better for rough cuts, while more flutes are great for smooth, precise work.

Geometry of Aluminum End Mills

High-Helix Flutes for Chip Removal

High-helix flutes help remove chips when cutting aluminum. The steep angle lifts chips away, stopping clogs and lowering heat. This design avoids chip buildup, which can harm the part and wear out tools faster.

These flutes also make cutting easier and more accurate. Tools with high helix angles stay stable, letting you cut faster without losing precision. The table below shows how this design helps:

Tip: Choose high-helix end mills for smoother cuts and longer-lasting tools.

Geometry for Smooth Finishes and Performance

The shape of an end mill affects how smooth and precise it cuts. A higher helix angle with the right flute count lowers cutting forces and improves surface quality. Studies show a four-flute tool with a 55° helix angle makes smoother cuts on aluminum alloy 2024-T351 than tools with lower angles.

Good geometry also stops surface damage. Smaller tools with high helix angles vibrate less, creating better finishes. Cooling methods like MQL or CO2 improve results further. For example, CO2 cooling can make surfaces 39.28% smoother.

Note: Match the tool's shape to your cutting needs for the best results.

Picking Geometry for Different Jobs

The right tool shape depends on the job. For round parts, check the length-to-diameter ratio to avoid bending. Flat parts need strong clamping for accuracy. Complex shapes may need special setups or multi-axis machines.

Thin-walled aluminum parts are tricky to machine. They can bend easily, making cutting slow and costly. Adjusting feed rates and spindle speeds can improve results and reduce waste.

Tip: Think about your part's shape and cutting needs before picking a tool. This helps save time and money.

Picking the right end mill for aluminum cutting improves results and saves money. The tool's material, coating, flute design, and shape are all important. Always choose a tool that fits your cutting needs. For instance, carbide tools with steep flutes and good coatings are great for quick, accurate cuts.

Tip: Try tools on scrap pieces first. This helps find the best mix of durability and cost, saving time and reducing waste.

FAQ

What is the best end mill material for aluminum?

Carbide is the top choice for cutting aluminum. It stays sharp, handles heat, and cuts faster. High-speed steel (HSS) is cheaper but wears out quickly. For smoother cuts and longer tool life, pick carbide.

How many flutes should an end mill have for aluminum?

Use 2-flute tools for rough cuts and clearing chips. For faster cutting and smoother surfaces, choose 3-flute tools. Both work well, but 3-flute tools give better speed and precision.

Do coatings really improve aluminum machining?

Yes, coatings help tools last longer by reducing friction and heat. Zirconium Nitride (ZrN) and Diamond-Like Carbon (DLC) are great choices. They stop aluminum from sticking and improve cutting results.

Why is chip clearance important in aluminum cutting?

Aluminum makes long, sticky chips that can block the tool. Good flute design clears chips, lowers heat, and reduces tool wear. Without it, cuts may turn rough and less accurate.

Can I use high-helix end mills for all aluminum jobs?

High-helix tools are great for smooth cuts and fast chip removal. But for thin parts or tricky shapes, you may need special tools. Always match the tool to the job for the best results.
