Top End Mills for Superalloys Compared for 2025 Machining Needs

Image Source: pexels

Machining superalloys requires precision, robust tools, and innovative techniques. These materials are challenging to work with due to their toughness and heat resistance, making them difficult to cut. Standard tools frequently struggle with superalloys like Nimonic. It is crucial to use the correct speed and feed rate. The demand for better tools, such as an end mill for superalloys, is rapidly increasing. The market for solid carbide end mills is projected to grow from $1.2 billion in 2024 to $1.8 billion by 2033. Selecting the appropriate end mill for superalloys not only extends tool life but also saves costs and enhances performance.

Key Takeaways

• Picking the right end mill for superalloys is important. It makes cutting easier and helps tools last longer, saving money.

• Special end mills made of carbide or ceramic work well. They handle heat and wear better for cutting tough metals like titanium.

• Coatings like TiAlN and AlCrN make tools work better. They lower friction and wear, helping cuts go faster and smoother.

• Good tool design, like helix angles and flute numbers, matters. It helps with cutting and removing chips for better results.

• Taking care of end mills makes them last longer. Clean them after use and check for damage to keep them working well.

Why Picking the Right End Mill is Important for Superalloys

Special Features of Superalloys

Superalloys are made to handle tough conditions. They resist heat, wear, rust, and damage from air. This makes them perfect for industries like airplanes, energy, and medical tools. These materials work well in stressful places like jet engines or turbines. They last a long time and need less fixing.

Problems When Cutting Superalloys

Cutting superalloys is hard. They get tougher as you cut them. This wears out tools faster and makes cutting harder. Cutting creates heat and needs strong tools. Without the right tools, it’s hard to cut them well.

Superalloys need tools with more cutting edges. For example, using a four-flute tool on Inconel 718 won’t work well. The hard material will wear out the tool fast. The heat from cutting will make the material even harder.

How End Mills Help Solve These Problems

The right end mill makes cutting superalloys easier. Modern end mills are built for these tough materials. They have special shapes, coatings, and materials to cut better and last longer.

• New end mills and cutting tools make superalloy machining easier, especially for airplanes.

• Special shapes and tool types for certain materials improve cutting and reduce problems.

• Tools made for specific cuts give better results, like smoother surfaces and less tool wear.

Picking the right tool helps you cut superalloys better and get great results.

Key Features of Top End Mills for Superalloys in 2025

Image Source: pexels

Materials Used in End Mills (e.g., carbide, ceramic, cobalt)

The material of an end mill affects how well it works. It must handle the tough conditions of superalloys. Modern end mills use strong materials like carbide, ceramic, and cobalt to perform better.

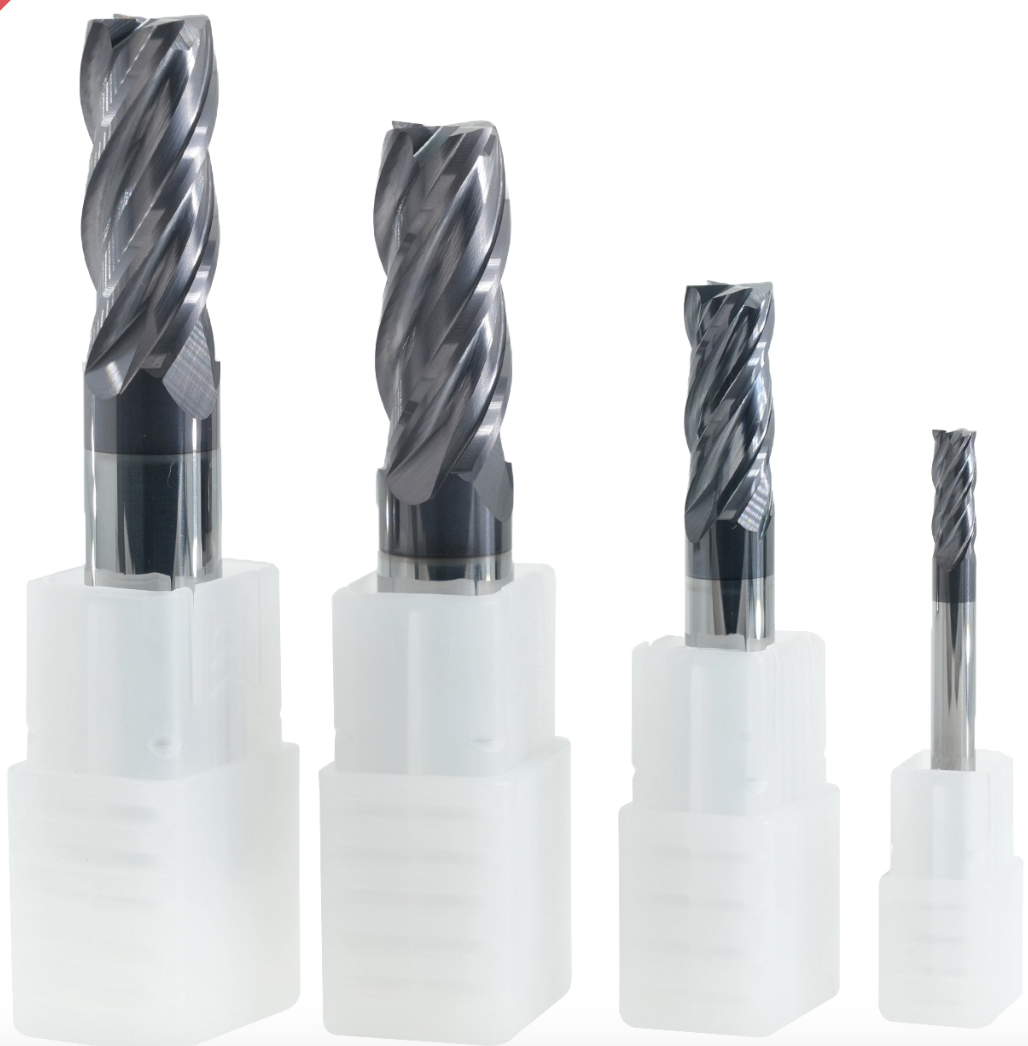

• Carbide: Made from tungsten carbide and cobalt, these tools are very hard. They stay sharp even in high heat, making them great for cutting titanium and hard steels.

• Ceramic: Ceramic tools are best for fast cutting. They resist heat and wear, so they last longer when cutting superalloys.

• Cobalt: Cobalt tools are tough and handle heat well. They work best for materials that get very hot during cutting.

Knowing these materials helps you pick the right tool. This ensures better cutting and longer-lasting tools.

Coatings for Enhanced Performance (e.g., TiAlN, AlCrN, ceramic coatings)

Coatings improve how end mills perform. They reduce wear, handle heat better, and make tools last longer. For superalloys, choose coatings made for high heat and cutting stress.

For instance, AlCrN coatings work better than TiAlN at faster speeds. They perform up to 95% better at 260 m/min. These coatings help your tools handle tough jobs easily.

Geometry and Design for Superalloy Machining

The shape of an end mill affects how it cuts superalloys. Tools need special designs to cut precisely and efficiently. Features like angles, flutes, and edges are made for these tough materials.

• Helix Angles: Higher angles lower cutting force and clear chips better. This is important for hard materials.

• Flute Counts: More flutes give smoother cuts and better stability. Fewer flutes are better for clearing chips in softer superalloys.

• Cutting Edge Design: Sharp, strong edges reduce wear and cut more efficiently.

Choosing the right tool shape helps you cut accurately, protect tools, and improve performance.

Comparison of the Top End Mills for Superalloys

Ceratizit USA End Mills: Features, Benefits, and Performance

Ceratizit USA makes tools for cutting tough superalloys. Their MaxiMill 211-DC lasts longer than regular tools. It works well with heat-resistant metals like titanium. This tool is strong and dependable for hard materials.

A special feature is its cooling system. It uses 3D-printed channels to improve coolant flow. This keeps the tool cooler and reduces wear. It helps the tool work better in tough conditions.

If you need a tool for superalloys, Ceratizit USA is a great choice. Their tools are durable, precise, and efficient. Advanced technology makes them reliable for machining needs.

CM-RMS Ceramic End Mills: Features, Benefits, and Performance

CM-RMS makes ceramic tools for fast cutting. These tools handle heat and wear well. They cut superalloys quickly and last a long time.

Ceramic tools work without coolant, saving time and money. They are light, which reduces vibration. This gives smoother cuts and better finishes.

CM-RMS ceramic tools are great for machinists who want speed and durability. They are perfect for cutting tough materials with accuracy.

Sandvik Coromant Solid Carbide End Mills: Features, Benefits, and Performance

Sandvik Coromant makes strong carbide tools for superalloys. These tools are hard and resist heat. They cut tough metals like titanium and Inconel easily.

One key feature is their flute design. It clears chips better and prevents tool damage. Sandvik also uses coatings to make tools last longer.

Sandvik Coromant carbide tools are reliable and versatile. They help machinists cut superalloys with precision and efficiency.

Kennametal HARVI III End Mills: Features, Benefits, and Performance

Kennametal's HARVI III End Mills are great for cutting superalloys. These tools work well in tough jobs, especially in airplanes and energy industries. They are made for precision and long-lasting use.

Features:

• Smart Design: The HARVI III has special flutes that lower vibration. This helps make smoother cuts and keeps the tool from wearing out.

• Strong Coating: It uses a TiAlN coating to handle heat better and last longer.

• Flexible Shape: Its design works with many superalloys like Inconel and titanium.

Benefits:

• Lasts Longer: The coating and design help the tool stay sharp during fast cutting.

• Better Finish: Less vibration means smoother surfaces on your workpiece.

• Saves Money: Its durability reduces downtime and replacement costs.

Performance:

The HARVI III works well at high speeds. It stays steady and accurate even with fast feed rates. For example, it cuts Inconel 718 without breaking or losing sharpness. This makes it a dependable tool for cutting superalloys.

Tip: Use the HARVI III with good coolant flow and correct settings. This will help you get the best results.

Hiboo Tools Solid Carbide End Mills: Features, Benefits, and Performance

Hiboo Tools makes strong solid carbide end mills for cutting superalloys. These tools are tough, precise, and affordable, making them popular with machinists.

Features:

• Hard Material: Made from tungsten carbide, these tools resist wear and stay sharp.

• Special Coating: AlCrN coatings help the tool handle heat and last longer.

• Smart Flute Design: High helix angles clear chips faster and lower cutting force.

Benefits:

• Long-Lasting: The carbide material and coating make the tool durable.

• Works on Many Alloys: These tools cut superalloys like Hastelloy and Waspaloy easily.

• Affordable Quality: Hiboo Tools give great performance at a lower cost.

Performance:

Hiboo Tools end mills are good for rough and smooth cutting. They stay sharp and steady, even at high speeds. For example, they cut titanium alloys precisely with little wear.

Note: Clean and store Hiboo Tools properly to make them last longer.

Benefits of Using Advanced End Mills for Superalloys

Longer Tool Life and Strength

Advanced end mills last much longer when cutting superalloys. They are built to handle high heat and tough conditions. This makes them strong for hard jobs. Coatings like AlTiN help tools resist wear and lower friction. These coatings are great for fast cutting in hot conditions.

New designs, like coolant channels in PCD end mills, keep tools cool. This lowers heat, reduces stress, and makes tools last longer. These tools work well for a long time, saving money on replacements and downtime.

Better Cutting and Accuracy

Modern end mills cut better and more precisely. Special shapes and coatings improve how they work. Sub-micro grain carbide resists wear, and chip-breaker edges reduce stress. These features make smoother cuts, even in hard metals like Inconel and titanium.

• Main Benefits:

• Faster cutting with less vibration.

• Better chip removal for cleaner cuts.

For example, Sandvik AB's end mills last 18–22% longer. They also cut vibration by 15% when making turbine blades. This boosts productivity and gives better results in industries like aerospace.

Saving Money in High-Performance Cutting

Advanced end mills may cost more at first, but they save money over time. Tools like PCBN cutters pay for themselves in 6–8 months. They cut tooling costs by 28% compared to carbide. They also cut faster, saving time.

1. PCBN lowers costs for very precise cuts (<5µm).

2. Faster cutting increases production and saves time.

A German car company saved 22% on machining costs by using PCBN tools. Picking the right end mill for superalloys helps you save money while keeping quality high.

Practical Tips for Choosing and Using End Mills for Superalloys

Factors to Consider When Selecting an End Mill

Picking the right end mill means knowing your needs and the tool's abilities. Here are some simple tips to help you choose:

1. Material: Match the tool material to the metal you're cutting. For tough superalloys, use carbide or ceramictools. They are strong and handle heat well.

2. End Mill Coating: Coatings like titanium nitride (TiN) or aluminum chromium nitride (AlCrN) make tools last longer. Pick a coating that works with your metal's heat and wear levels.

3. Geometry: The tool's shape affects how it cuts. High helix angles lower cutting force. The number of flutes helps clear chips faster.

Tip: Sialons, a type of ceramic, are great for cutting superalloys. They handle heat well and don’t expand much.

Best Practices for Using End Mills with Superalloys

To use end mills well, adjust for the challenges of superalloys. Follow these easy steps:

• Set the Right Settings: Change speed, feed rate, and cut depth to fit the metal. For example, Inconel needs slower speeds and faster feed rates to avoid hardening.

• Cut Continuously: Don’t use pecking motions, as they cause heat and stress. Instead, make smooth, steady cuts for better results.

• Check Tools Often: Look for wear or damage after each use. Catching problems early keeps cuts smooth and prevents tool breaks.

Pro Tip: Start with a softened piece of superalloy like Inconel. This reduces hardening and helps tools last longer.

Maintenance and Care for Prolonged Tool Life

Taking care of your tools keeps them working longer. Follow these simple care tips:

Note: Clean tools after every use to remove dirt and stop rust. Store them in a dry, safe place to avoid damage.

By following these steps, your end mills will last longer and work better. This saves money and makes machining easier.

Picking the right end mill for superalloys improves cutting and saves money. Brands like Ceratizit USA, CM-RMS, and Kennametal HARVI III are strong and precise. Special coatings and smart designs help tools last longer and cut better.

Pro Tip: Choose tools with materials and coatings that fit your job. Take care of tools to keep them sharp and working well.

In 2025, use top-quality tools made for superalloys. These tools increase efficiency and make tough jobs easier in industries like aerospace and energy.

FAQ

What is the best material for end mills when machining superalloys?

Carbide is the best choice for cutting superalloys. It handles heat and wear well. Ceramic tools are great for fast cutting. Pick the material based on your needs and the type of superalloy.

How do coatings improve the performance of end mills?

Coatings help tools last longer and cut better. For example, TiAlN and AlCrN coatings handle heat and stress well. They also lower friction, making cuts smoother and faster. Always choose a coating that fits your job.

How can you extend the life of your end mills?

Clean tools after each use to remove dirt. Store them in a dry place to avoid rust. Check for damage often. Use the right speed, feed rate, and coolant to reduce tool stress.

Why is geometry important in end mills for superalloys?

The shape of an end mill affects how it cuts. High helix angles make chip removal easier. Sharp edges reduce wear. Picking the right shape gives smoother cuts and longer tool life.

Can you use the same end mill for all superalloys?

No, different superalloys need different tools. For example, Inconel needs heat-resistant tools, while titanium needs sharp, strong edges. Always use a tool made for the specific superalloy.

Tip: Follow the manufacturer's advice for the best results.
