What Are Solid Carbide Square End Mills in Machining?

Image Source: pexels

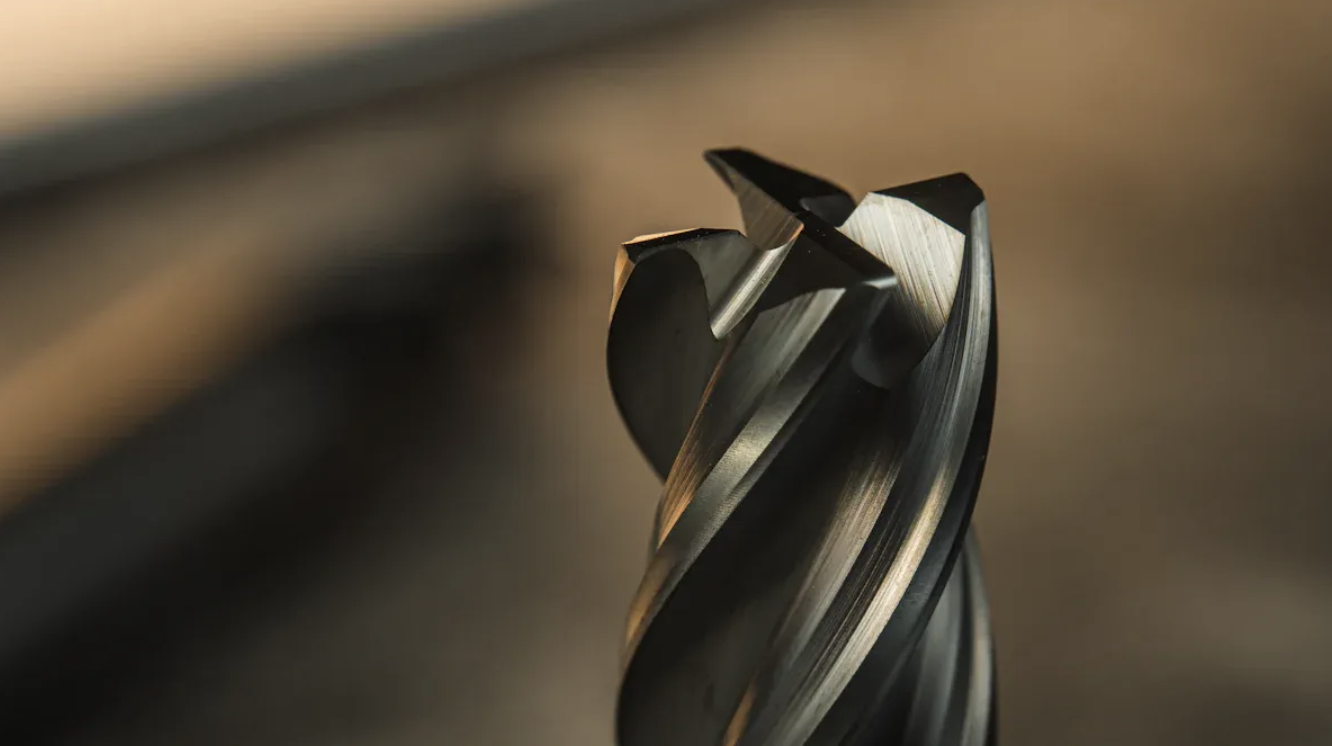

Solid carbide square end mills are tools made from carbide. They have a square cutting edge for precise machining work. These tools are known for being accurate and efficient.

Their use is increasing in the machining industry. The global market for these tools, worth $1.2 billion in 2024, may grow to $1.8 billion by 2033. This shows they improve machining accuracy and efficiency. That’s why many professionals prefer them.

Key Takeaways

• Solid carbide square end mills are strong tools made of carbide. They last long and resist wearing out easily.

• The square cutting edge helps make sharp corners and flat grooves. This gives accurate results when machining.

• Flutes are important because they remove chips and keep tools cool. This makes cutting better and helps tools last longer.

• These tools resist heat, so they work well at high speeds and temperatures.

• Solid carbide end mills can be used in many industries like aerospace, cars, and factories.

• Picking the right number of flutes and coating improves cutting based on the material used.

• Taking care of these tools, like cleaning and oiling, makes them last longer.

• Hiboo Tools sells solid carbide square end mills and gives expert advice to help users choose the right tools for their jobs.

Key Features of Solid Carbide Square End Mills

Material Composition

The material of a solid carbide square end mill is very important. These tools are made from carbide, which is super hard and resists wear. This makes them great for fast machining and tough materials.

• Carbide tools last longer than high-speed steel (HSS) ones.

• They stay sharp even during hard jobs.

• Their toughness means fewer replacements, saving time and money.

Using a solid carbide square end mill gives you strong performance and a longer-lasting tool, even in tough conditions.

Square Cutting Edge

The square cutting edge is what makes these tools special. It helps with accurate machining and clean results.

• The square tip makes sharp, straight edges.

• It cuts flat-bottom grooves needed for precise work.

• The 90° angle is great for square slots and pockets.

This design also clears chips better, making cutting smoother. Whether you're making detailed parts or grooves, the square edge gives steady and exact results.

Flute Design

The flute design affects how well the tool cuts. Flutes are the grooves along the tool that remove chips.

• Good flutes clear chips fast and stop buildup.

• They keep the tool cooler, so it stays sharp.

• Fewer flutes work best for soft materials, while more flutes suit harder ones.

Picking the right flute design helps improve your machining and get better outcomes.

Heat Resistance and Cutting Efficiency

Heat resistance is very important for these tools to work well. When used at high speeds, they get very hot from friction. Without heat resistance, the tool can bend, lose strength, or cut poorly. Solid carbide tools handle heat well, staying strong and cutting accurately even when very hot.

One reason they resist heat is their special coatings. These coatings, made in the last 10 years, make the tools last longer. They stop wear and help control heat better. This means the tool stays cooler and works smoothly. The coatings also help remove chips faster, keeping the tool in good shape.

Handling high heat also makes cutting more efficient. These tools stay accurate even during tough jobs like milling. They make clean cuts without losing quality, even in hard tasks. By avoiding heat problems, they save time and reduce wasted materials.

In hot machining conditions, heat resistance and cutting efficiency are key. Whether cutting hard materials or doing detailed work, these tools perform well. Their design and materials make them great for both speed and precision.

Applications of Solid Carbide Square End Mills

Common Machining Tasks

Solid carbide square end mills are great for many tasks. Their design helps you work with accuracy and speed. Whether cutting, slotting, or shaping, they give steady results.

Here are some main benefits that make them useful:

Benefit	Description
Long-Lasting	Carbide stays strong and lasts longer than other materials.
Handles High Heat	Works well in hot conditions without losing sharpness.
Smooth Surface Finish	Makes parts look polished, so less extra work is needed.
Cuts Tough Materials	Easily works on hard metals like titanium and stainless steel.
Saves Money	Lasts longer, so you spend less over time.
Better Chip Removal	Fewer grooves help clear chips faster and avoid problems.

With these tools, you can make flat-bottom pockets, sharp edges, and detailed grooves. They also leave smooth finishes, so you don’t need extra polishing or grinding.

Industry Applications

Solid carbide square end mills are used in many industries because they are reliable. If you work in aerospace, automotive, or manufacturing, these tools are very helpful.

In aerospace, they are great for cutting strong but light materials like aluminum. They stay precise even at high speeds, making sure parts are made perfectly.

In the car industry, they help create engine and transmission parts. Their strength lets you cut hard metals while staying accurate.

For general manufacturing, these tools are perfect for making molds, dies, and machine parts. Their sharp edges and heat resistance work well for both small and big projects.

No matter the job, these tools give the precision and speed needed for today’s machining work.

Advantages of Solid Carbide Square End Mills

Precision and Accuracy

Solid carbide square end mills help you make precise cuts. They are designed to give clean and exact results every time.

Feature	How It Helps with Precision
Tool Shape	Improves cutting accuracy and smoothness
Special Coatings	Lowers heat and friction for faster cutting
Strong Build	Stops bending, ensuring straight and accurate cuts
Heat Resistance	Works well even when it gets very hot
Material Match	Fits well with different materials for better performance

These tools reduce shaking, so your cuts are smoother. Their strong build lets you cut faster without losing accuracy. Whether making detailed shapes or sharp edges, they always perform well.

Longevity and Durability

These tools are made to last a long time. The carbide material is very strong and doesn’t wear out easily. This means you won’t need to replace them often.

They stay sharp even after many uses. Heat-resistant coatings protect them from damage caused by high temperatures. This keeps them working well during tough jobs. Using these tools saves you time and money on replacements.

They can also handle hard materials like titanium and stainless steel. This makes them great for both small projects and big industrial tasks.

Great for High-Speed Machining

High-speed machining needs tools that can handle tough conditions. Solid carbide square end mills are perfect for this. They stay strong and work well even at high speeds.

Their special design reduces shaking and clears chips quickly. This makes cutting faster and keeps the workspace clean.

You can use them to cut hard materials quickly while staying accurate. They resist heat and friction, making them ideal for fast and precise work.

With these tools, you can finish jobs faster without losing quality. They are a smart choice for professionals who need speed and accuracy.

Comparison with Other End Mills

Choosing the right cutting tool is very important. Solid carbide square end mills are better than other tools in many ways. Let’s see how they compare in hardness, durability, speed, and heat resistance.

Feature	Solid Carbide End Mills	Other End Mill Types
Material Hardness	Very hard	Not as hard
Durability	Lasts longer	Wears out faster
Cutting Speed	Works faster	Slower cutting
Heat Resistance	Handles heat well	Struggles with heat

Solid carbide square end mills are much harder. Their carbide material cuts tough metals like titanium easily. Other tools may wear out quickly on such materials.

These tools are also more durable. They last longer, even in tough jobs. Other end mills need replacing more often, which wastes time and money.

They cut faster without losing accuracy. Their design reduces shaking and makes smooth cuts. Other tools may not work well at high speeds and can break or cut poorly.

Heat resistance is another big advantage. Solid carbide tools stay strong and sharp, even when hot. This makes them great for fast machining. Other tools may bend or lose quality under heat.

Tip: Use solid carbide square end mills for tough materials or fast jobs. They are hard, durable, and handle heat well, giving you better results.

Knowing these differences helps you pick the best tool. Solid carbide square end mills are reliable and perform better, making them a smart choice for machining tasks.

How to Choose the Right Solid Carbide Square End Mill

Material Considerations

Picking the right material for your tool is very important. The tool's material affects how long it lasts and how well it cuts. Solid carbide is very hard and resists wear, making it a top choice. Special shapes and coatings on carbide can make it work even better.

• A study showed coated carbide tools work better on tough materials.

• Experts say the shape of the tool is key to its success.

• Tools with better coatings and designs perform best in hard jobs.

Think about the material you’ll be cutting and your project needs. This helps you get great results and makes the tool last longer.

Flute Count and Diameter

Flutes are grooves on the tool that remove chips while cutting. The number of flutes and the tool’s size affect how well it works.

For harder materials, tools with more flutes work better. They give smoother finishes and last longer. For example, tools with 5-7 flutes are great for cutting steel. Softer materials, like aluminum, need tools with 3 flutes for faster cutting.

Different jobs need different flute counts. Fewer flutes are good for rough cutting because they clear chips quickly. More flutes are better for finishing, giving smoother surfaces. Knowing your material and job type helps you pick the right tool for the best results.

Coating Options

Coatings help tools last longer and cut better. Different coatings work best for different jobs.

Coating Type	Benefits	Best Use Case
Titanium Nitride (TiN)	Reduces wear and handles heat well	General materials
Titanium Aluminum Nitride (TiAlN)	Handles high heat and tough conditions	Hard metals
Diamond-Like Carbon (DLC)	Very hard and reduces friction	Soft metals

TiN coatings are great for everyday cutting jobs. TiAlN coatings are better for hot and tough tasks, like cutting steel. DLC coatings are perfect for soft metals, making cutting smooth and easy.

Choose the right coating based on your material and job conditions. The right coating makes your tool work better and last longer, saving you time and money.

Operational Tips for Solid Carbide Square End Mills

Speeds and Feeds

Using the right speeds and feeds helps your solid carbide square end mill work well. These settings affect how long the tool lasts and how it performs. To find cutting speed, use this formula: (Cutter Diameter * RPM) / 3.82. This gives you the surface feet per minute (SFM), which is key for good cutting.

Feed rate, measured in inches per minute (IPM), depends on the tool's speed and the material. Chip load per tooth is the amount of material one cutting edge removes in one turn. It is measured in inches per tooth (IPT). Chip load per tool is the total material removed by all edges in one turn, measured in inches per revolution (IPR).

For soft materials like aluminum, use faster speeds and slower feed rates. For hard materials like stainless steel, slower speeds and faster feed rates work better. Always check the manufacturer's guide for exact settings.

Tip: Change speeds and feeds based on the material and tool size to avoid overheating or wearing out the tool.

Proper Handling and Maintenance

Taking care of your solid carbide square end mill makes it last longer. Keep tools in a clean, dry place to stop rust. Use cases or holders to protect the cutting edges from damage.

Before using the tool, check for wear or damage. A dull or chipped tool can ruin your work and give bad results. Clean the tool after each use to remove dirt and coolant. Use a soft brush or air to avoid scratching it.

Lubrication is important too. Use the right cutting fluid during machining to lower friction and heat. This improves cutting and protects the tool from wearing out too fast.

Note: Regular care keeps the tool working well and reduces how often you need to replace it.

Tool Life Extension

To make your solid carbide square end mill last longer, follow some easy steps. First, don’t use the tool at very high speeds or feeds. This can cause overheating and wear it out quickly. Match the settings to the material and job.

Second, use coatings that make the tool stronger. For example, titanium aluminum nitride (TiAlN) coatings help with heat resistance, making the tool better for fast machining. Third, rotate tools if you use more than one. This spreads out wear and makes all tools last longer.

Finally, watch how the tool performs. If it cuts poorly, replace or regrind it right away. Using a worn tool can damage your work and slow down machining.

Pro Tip: Buying good tools and taking care of them saves money over time by reducing downtime and replacements.

Hiboo Tools: Your Trusted Partner for Solid Carbide Square End Mills

About Hiboo Tools

Hiboo Tools is known for making top-quality cutting tools. With years of experience, they focus on creating precise and innovative products. Their tools are designed to meet modern machining needs, helping you get the best results.

Did You Know? Hiboo Tools uses advanced technology and strict quality checks to make tools that perform better than others.

Hiboo Tools cares about their customers by offering tools that are strong, accurate, and efficient. Whether you're working on airplane parts or car components, they have the right tools for your job.

Product Range

Hiboo Tools has many solid carbide square end mills for different tasks. Their tools can cut, shape, and slot materials like aluminum, steel, and titanium.

Key Features of Hiboo Tools' Product Range:

• Material Options: Made from high-quality carbide for long-lasting use.

• Flute Variations: Choose 2-flute, 3-flute, or multi-flute designs for your needs.

• Coating Choices: Special coatings like TiN and TiAlN improve heat resistance and cutting.

• Custom Solutions: Get custom tools for unique machining challenges.

Product Type	Best Use Case	Key Benefit
2-Flute End Mills	Soft materials like aluminum	Removes chips faster
4-Flute End Mills	Hard materials like steel	Gives smoother finishes
Coated End Mills	High-speed machining	Handles heat better

With Hiboo Tools, you can find the right tool for your job. Their tools help you work faster and more accurately.

Customer Support

Hiboo Tools knows how important good customer service is. They offer full support to help you use their tools effectively.

What You Can Expect from Hiboo Tools' Customer Support:

1. Expert Guidance: Get help choosing the best tool for your project.

2. Technical Assistance: Learn how to maintain and fix your tools.

3. Fast Response Times: Get quick answers to your questions.

4. Educational Resources: Use guides and tutorials to improve your skills.

Tip: Contact Hiboo Tools' support team for advice and solutions made just for you.

Hiboo Tools wants you to succeed. They provide the tools and knowledge you need to do great work. With their focus on quality and customer care, you can trust Hiboo Tools for all your solid carbide square end mill needs.

Solid carbide square end mills are strong, precise, and efficient tools. They make clean cuts and stay accurate, which is why they are important in industries like aerospace, cars, and medical equipment. These tools work well at high speeds and with tough materials, lasting a long time.

Feature	Description
Durability	Built to last, these tools are strong and reliable.
Performance	They cut cleanly and accurately, improving the quality of parts.
Efficiency	Need sharpening less often, saving both time and money.
Applications	Used in aerospace, automotive, and medical fields for precise parts with tight measurements.

Hiboo Tools makes top-quality solid carbide square end mills for your needs. Their smart designs and helpful support make them a great choice for precise and efficient machining.

FAQ

What are solid carbide square end mills used for?

These tools cut, slot, and shape materials like aluminum and steel. They make sharp edges, flat grooves, and smooth finishes. This makes them perfect for industries like aerospace and automotive.

How do I choose the right flute count for my project?

Use fewer flutes for soft materials like aluminum to clear chips. For hard metals like steel, more flutes give smoother results. Match the flute count to your material for the best performance.

Can solid carbide square end mills handle high-speed machining?

Yes, they are built for high-speed work. Their heat resistance and strength let them stay sharp and accurate at fast speeds.

What coatings work best for solid carbide square end mills?

Titanium Nitride (TiN) is good for general tasks. Titanium Aluminum Nitride (TiAlN) works well with heat and tough jobs. Diamond-Like Carbon (DLC) reduces friction and is great for soft metals.

How can I extend the life of my solid carbide square end mill?

Use the right speeds and feeds to avoid overheating. Apply cutting fluids to lower friction. Store tools in a dry place and check for damage often. Rotate tools to spread out wear.

Are solid carbide square end mills suitable for tough materials?

Yes, they are great for cutting hard materials like titanium. Their strength and heat resistance make them reliable for tough jobs.

What makes Hiboo Tools’ solid carbide square end mills unique?

Hiboo Tools makes strong, precise tools with advanced coatings. They also offer custom solutions and great customer support.

How do I calculate the correct cutting speed for my tool?

Use this formula: (Cutter Diameter * RPM) / 3.82. Adjust speeds and feeds based on your material and tool size for better results.
