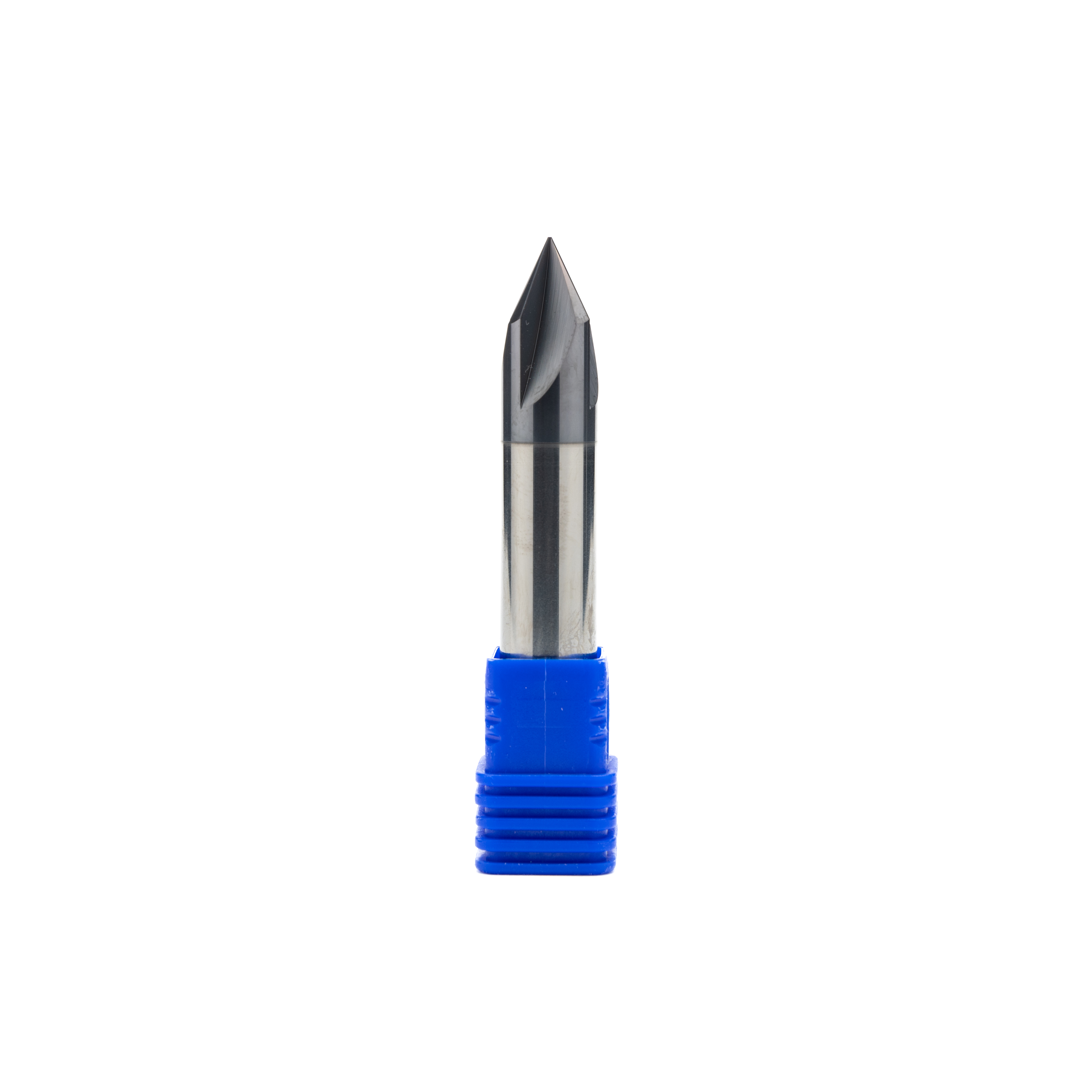

The chamfer end mill (or chamfering tool) is a type of cutting tool used for performing operations such as chamfering, deburring, edge trimming, and positioning at the edges of workpieces. It is widely applied in fields like metal processing, mold manufacturing, and automated components.

The main applications of the chamfering tool are as follows:

1. Edge chamfering (Chamfering)

After the processing of the parts is completed, the edges are treated with a sloping edge to remove sharp corners, preventing cuts and facilitating assembly.

The common angles are 45°, 60°, 30°, 90 °etc.

2. Deburring

Remove the burrs produced during cutting or milling, making the product edges smoother and enhancing the appearance quality and safety.

3. Corner rounding of the hole

After drilling, use a corner rounding tool to round the hole opening. This facilitates the installation of bolts and screws and helps prevent stress concentration.

It is particularly suitable for countersunk screw holes, pre-drilled holes for threading, and positioning holes, etc.

4. Inclined surface insertion (angle processing)

Helps ensure that the parts can be smoothly inserted or positioned during automated assembly, thereby improving assembly efficiency and coordination accuracy.

5. Welding Preparation

Some welding components require prior chamfering to form the weld joint, which facilitates deep penetration welding and enhances the welding strength.

6. Aesthetic Treatment

Beveling can enhance the appearance quality of the finished product, making the structural lines clearer and neater. It is suitable for precision molds or exposed structural components.

Examples of application industries:

Industry	The purpose of chamfering
Machining	Edge treatment of parts, chamfering of hole openings
Mould making	Mold core chamfering and guide surface processing
Automobile making	Chassis components, counter-angles of bolt holes
Aerospace	Beveling of aluminum parts and titanium alloy components
Electronic products	Precision component anti-scuff chamfering
Stainless steel processing	Preparation for avoiding welding cracks and chamfering

Common types of chamfering tools

Type	Characteristic	Applicable scene
Single-edge chamfering cutter	The forming angle is precise and the cutting is gentle.	Precision chamfering processing
Multi-edge chamfering cutter	High processing efficiency	Volume production
Replaceable head chamfering tool	Low cost and easy to maintain	Automated machining center
Beveling ball cutter (R cutter)	Round corners, chamfers, 3D edges	Molds and exterior components

Processing suggestion:

Spindle speed: Medium to high speed (depending on the material)

Feed speed: Moderate, to avoid blade breakage

Suggested cutting depth: Generally not more than 1/3 of the tool diameter. For molds and exterior components.
