What is a taper ball cutter

What is a taper ball cutter

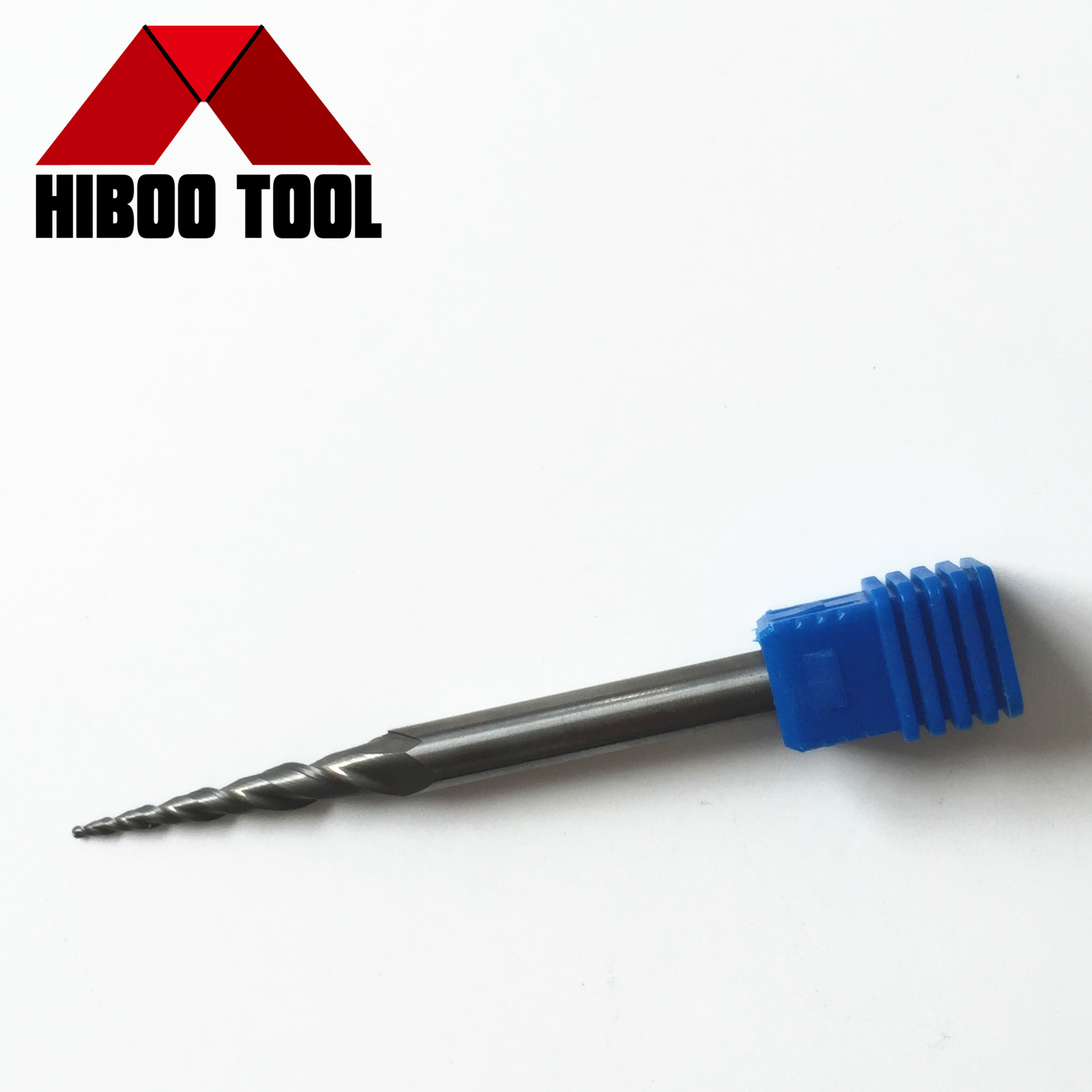

The taper ball cutter is a specially designed milling cutter with a taper tip and spherical curved surface. This structure combines the advantages of taper tools and ball-end tools and is often used for efficient processing of parts with complex curved surfaces. The following is a detailed introduction to all aspects of it:

1. Structural features

Conical design: The conical part enables the tool to gradually cut into the material, making it suitable for processing scenarios with high requirements for depth and Angle. This design is conducive to reducing sudden cutting loads and improving tool life.

Spherical tool tip: The spherical head part usually has a smooth curved surface, which can achieve multi-angle and multi-directional cutting. This enables the processing of fine curved surfaces and transition surfaces, making it particularly suitable for parts in industries such as molds, aviation, and medical devices that have high requirements for curved surface accuracy.

Tool material: Taper ball cutters are typically made of high-performance materials such as high-speed steel (HSS), cemented carbide or ceramics to ensure stable cutting performance and wear resistance under high-speed and high-load conditions.

2. Processing Principles and Advantages

Progressive cutting: The conical part can provide a smooth feed transition, reduce cutting force and vibration, and help improve machining accuracy and surface quality.

Multi-directional cutting: The spherical tip design enables the tool to achieve multi-directional cutting during the feed process, making it particularly suitable for processing complex curved surfaces, precision molds, and three-dimensional curved surface parts.

Extending service life: A well-designed combination of conical and ball heads not only enhances processing efficiency but also disperses the cutting load to a certain extent, reduces the tool wear rate, and thus prolongs the tool's service life.

3. Application fields

Taper ball cutters are widely used in situations where precise surface processing is required, mainly including:

Mold manufacturing: In the processing of plastic, rubber molds and metal molds, conical ball cutters can be used to achieve fine processing of complex curved surfaces and high-quality surface treatment.

Aerospace: For the complex curve and free-form surface processing of aircraft components, taper ball cutters can effectively improve the processing quality and accuracy.

Automotive industry: It is used for processing engine molds, curved structural parts, etc., to ensure the precision and surface finish of components.

Medical devices: In the manufacturing of some high-precision medical devices and surgical instruments, the curved surfaces processed by taper ball cutters often require extremely high levels of detail and surface quality.

4. Selection and Maintenance

Selection note: It is very crucial to choose the appropriate tool material and geometric parameters (such as cone Angle, ball diameter, etc.) based on the material hardness, processing requirements and tool life. When processing different materials, cutting parameters and cooling conditions need to be considered to avoid overheating or tool failure.

Maintenance and care: Regularly inspect the wear of the cutting tools, use appropriate sharpening methods for repair, and maintain the sharpness of the cutting tools. In addition, reasonable planning of the processing path and the adoption of layer-by-layer cutting methods can also effectively extend the service life of the cutting tools.

5. Summary

Taper ball cutters, with their unique geometric shapes and excellent cutting performance, play a significant role in modern high-precision machining. Its conical tool body combines the dual advantages of ball head cutting, which not only enables efficient cutting but also meets the processing requirements of complex curved surfaces, providing key technical support for industries such as mold manufacturing, aviation, automobiles, and medical care.

This type of cutting tool needs to be comprehensively evaluated in combination with the workpiece material, processing equipment and specific processes in practical applications in order to achieve the best performance. It is hoped that the above information can help you fully understand the concept, structure, application and key points of selection and maintenance of taper ball cutters.
