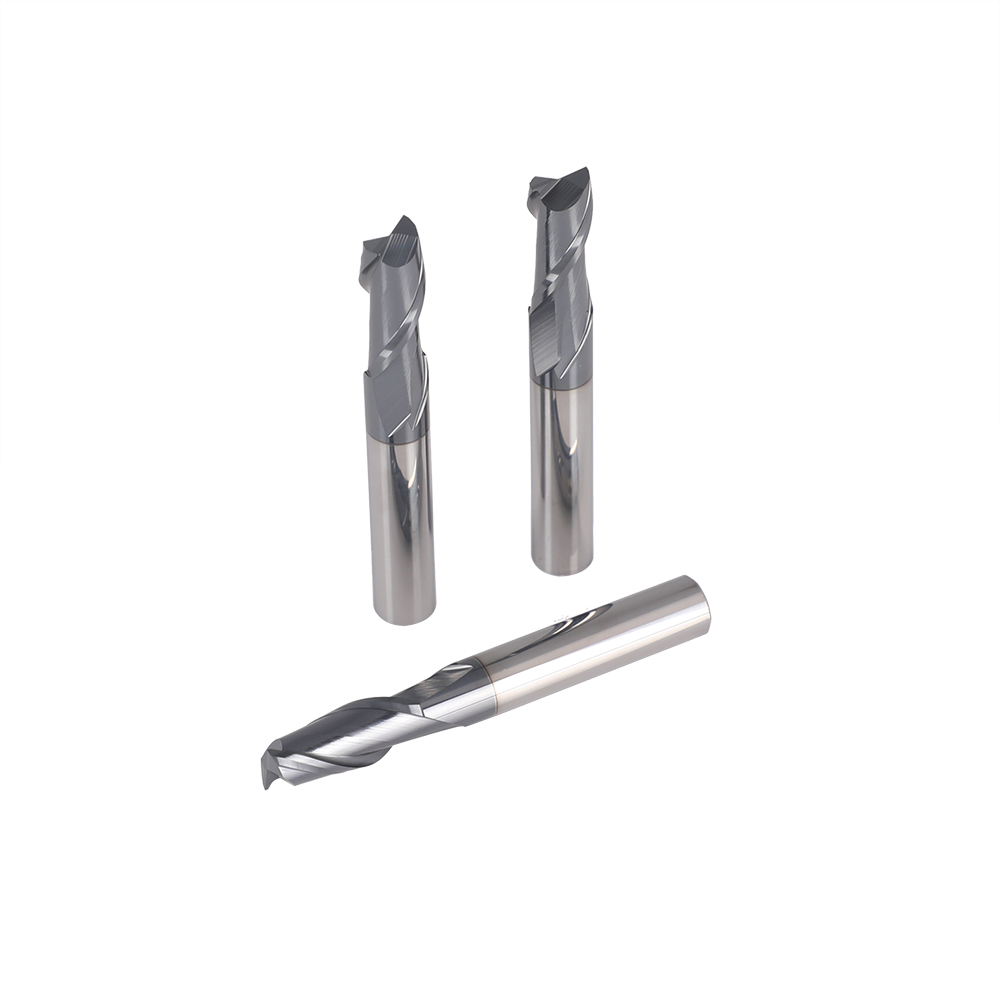

Carbide 2 Flutes End Mills HRC48 Milling Cutters

Two-edge milling cutters are suitable for processing a variety of materials, depending on their material, design and application scenarios. Two-edge end mills are usually used for rough processing of non-ferrous metals (such as aluminum alloys, copper, etc.) and low-carbon steel.

Brand:
Hiboo Tools

Availability:

Quantity:



Inquire Add to Basket

Carbide Milling Cutters carbide end mills 2 flutes end mills HRC48 Carbide End Mills

Product Description

4 Flute HRC58 Solid Square Carbide End Mills with Tisin Coated

Product Description

Advantage Introduction for our CNC Solid carbide Endmills:

1. 100% Virgin Raw Material.

2. 100% QC inspection before shipment.

3. Prompt aftersales service within 24 hours

4.Long use life and high performance

5. Non-Standard sizes and OEM orders are available

6. We are a Real Factory with ISO9001:2015 Certification

7.Suitable for cutting steel/cast iron/aluminum/copper/plastic/alloy steel/titanium alloy etc

Raw Material	Carbide, Tungsten Cobalt Alloy, tungsten carbide
Coating	AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or as your requirements
Overall Length	38-330mm (customized is acceptable)
Flute Diameter	0.3-40mm (customized is acceptable)
Diameter	4-40mm (customized is acceptable)
Precision	0.005-0.01 (high precision)
HRC	45/50/55/65 HRC
Controlling Mode	cnc tooling system
Processing Type	Finishing Maching
Suitable for	wood, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel, etc.

Product Specification

The following Specification for your refer, We also provide the OEM or ODM service

Diameter(d) Radius(R)	Cutter length(l)	Overall length(L)	Shank diameter(D)
Diameter(d) Radius(R)	Cutter length(l)	Overall length(L)	Shank diameter(D)
∮1	3	50	∮4
∮1.5	4	50	∮4
∮2	6	50	∮4
∮2.5	8	50	∮4
∮3	8	50	∮4
∮3.5	10	50	∮4
∮4	11	50	∮4
∮4	15	75	∮4
∮4	20	100	∮4
∮4.5	13	50	∮6
∮5	13	50	∮6
∮5	20	75	∮6
∮5	30	100	∮6
∮5.5	15	50	∮6
∮6	15	50	∮6
∮6	20	75	∮6
∮6	30	100	∮6
∮6	20	60	∮8
∮8	20	60	∮8
∮8	25	75	∮8
∮8	35	100	∮8
∮9	25	75	∮10
∮10	25	75	∮10
∮10	40	100	∮10
∮11	30	75	∮12
∮12	30	75	∮12
∮12	45	100	∮12
∮14	35	100	∮14
∮16	40	100	∮16
∮18	45	100	∮18
∮20	45	100	∮20
Notes:If there are special requirements,can be customized.
