A square end mill, also known as a flat end mill, is a type of cutting tool used in milling operations. It has a flat bottom and straight cutting edges, making it ideal for machining flat surfaces, square corners, and shoulders. Square end mills are commonly used in a variety of materials, including metals, plastics, and wood.
Key Features:
Flat Bottom: This allows for the creation of flat surfaces and square corners.
Straight Cutting Edges: These edges enable the mill to cut cleanly and efficiently through the material.
Various Sizes and Coatings: Square end mills come in different diameters, lengths, and with various coatings to enhance performance and tool life, such as TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride).
Applications:
Face Milling: Creating a flat surface on the workpiece.
Slot Milling: Cutting slots into the material.
Side Milling: Machining the sides of a workpiece.
Contour Milling: Machining complex shapes with flat surfaces and sharp corners.
Material Considerations:
High-Speed Steel (HSS): Good for general-purpose milling.
Carbide: Offers higher cutting speeds and longer tool life, suitable for harder materials.
Cobalt: Provides better wear resistance and toughness than HSS.
The following Specification for your refer, We also provide the OEM or ODM service.

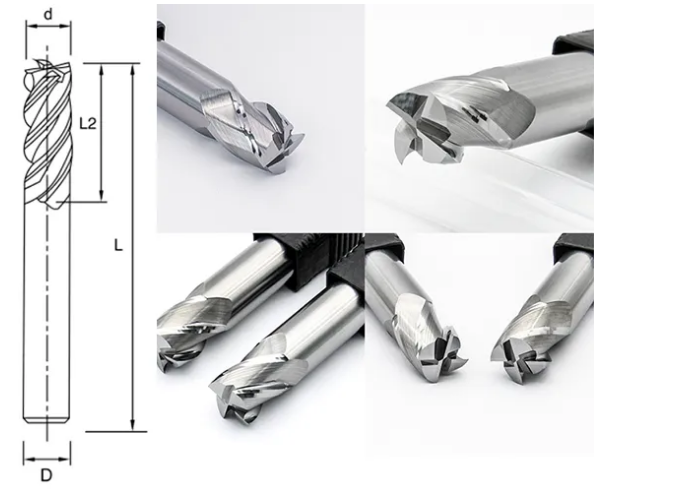

| D(Diameter of cut) | d(Shank Diameter) | l(Flute Length) | L(Overall Length) |
| 1 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2 | 6 | 4 | 50 |
| 2.5 | 8 | 4 | 50 |
| 3 | 8 | 6 | 50 |
| 3.5 | 10 | 6 | 50 |
| 4 | 11 | 6 | 50 |
| 4.5 | 13 | 6 | 50 |
| 5 | 13 | 6 | 50 |
| 5.5 | 13 | 6 | 50 |
| 6 | 15 | 6 | 50 |
| 7 | 16 | 8 | 60 |
| 8 | 20 | 8 | 60 |
| 9 | 20 | 10 | 75 |
| 10 | 25 | 10 | 75 |
| 11 | 25 | 12 | 75 |
| 12 | 30 | 12 | 75 |
| 14 | 35 | 14 | 100 |
| 16 | 40 | 16 | 100 |
| 18 | 45 | 18 | 100 |
| 20 | 45 | 20 | 100 |
Product Details:
Package and shipping details:

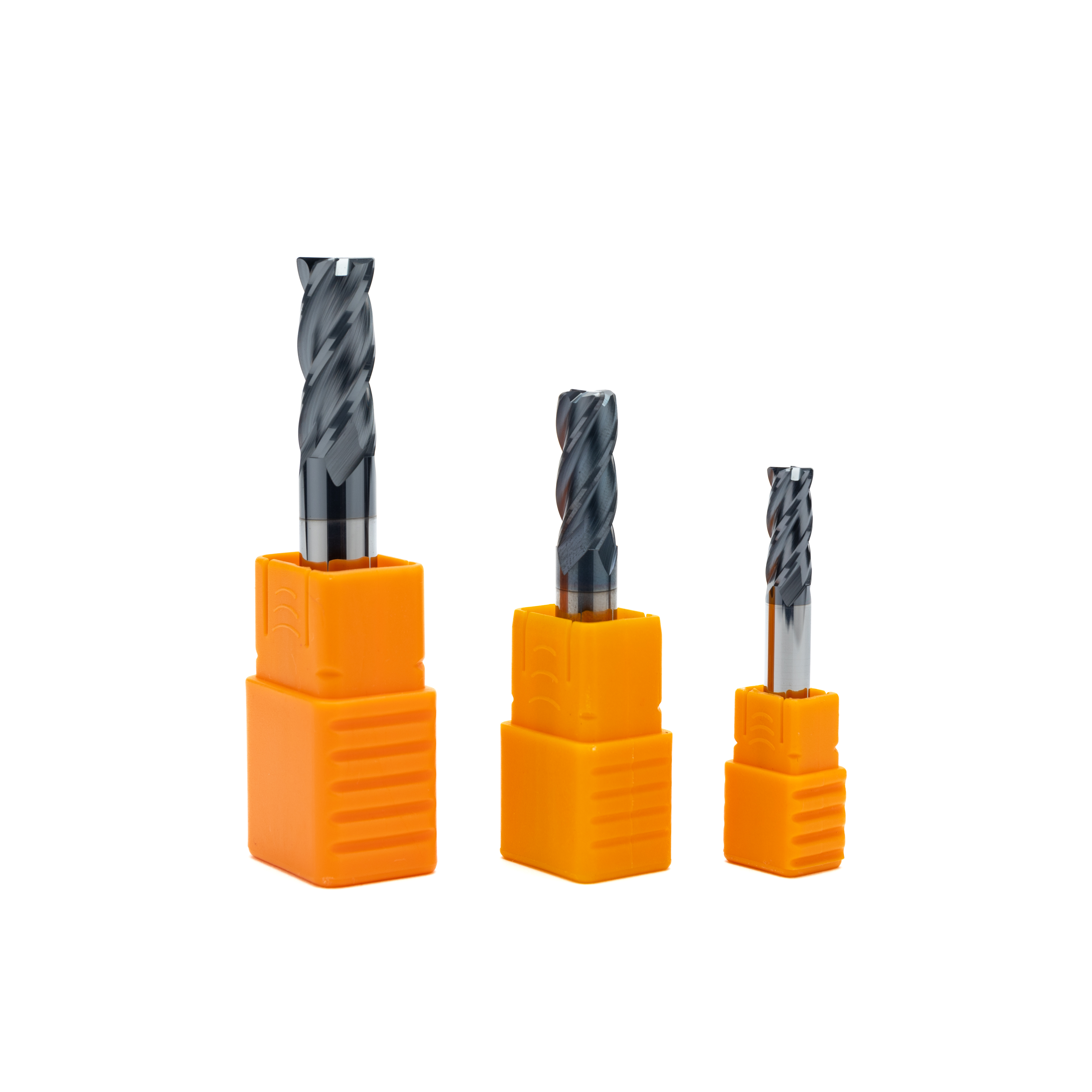

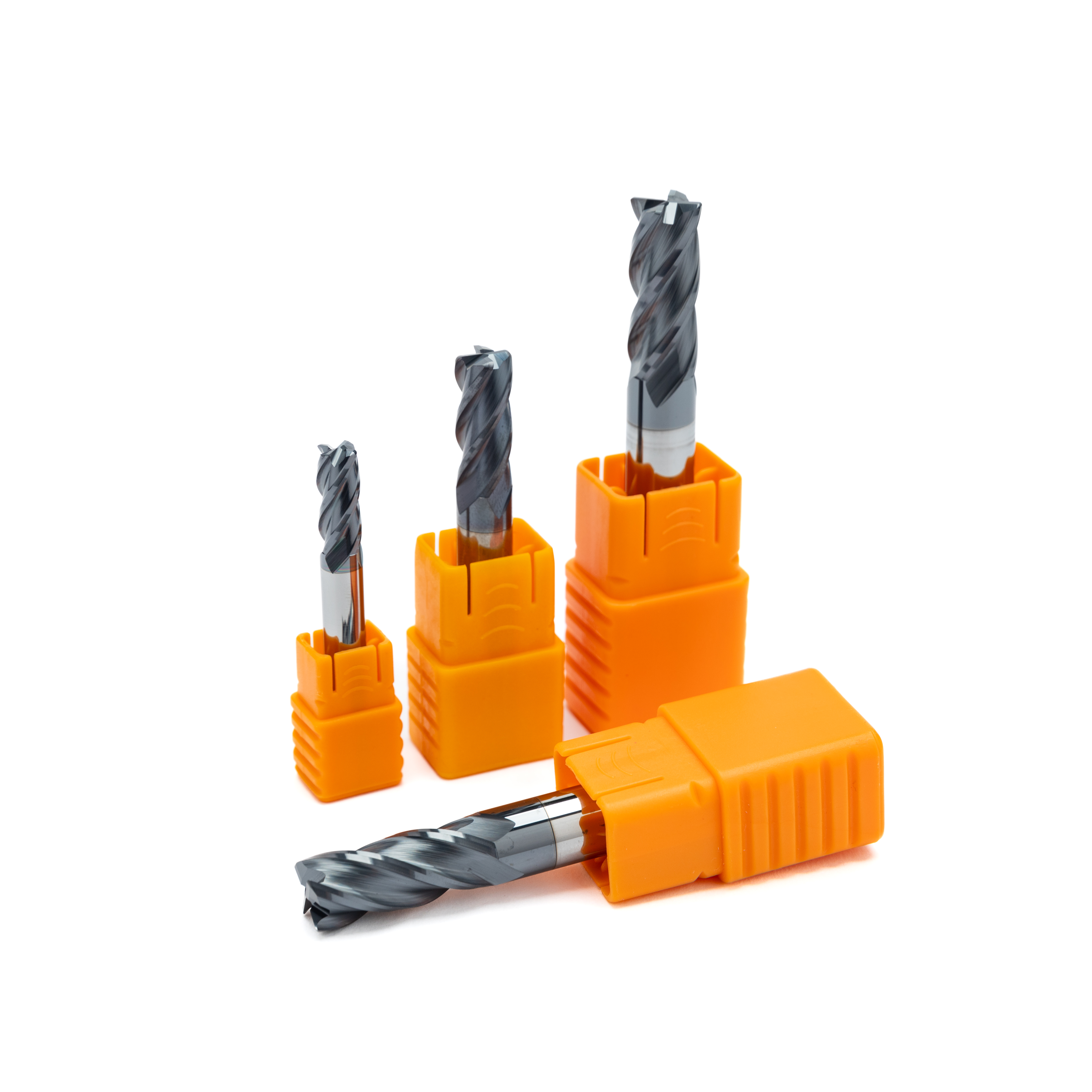

Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
Payment Terms:
T/T ,Western Union, MoneyGram,Alipay,Wechat pay

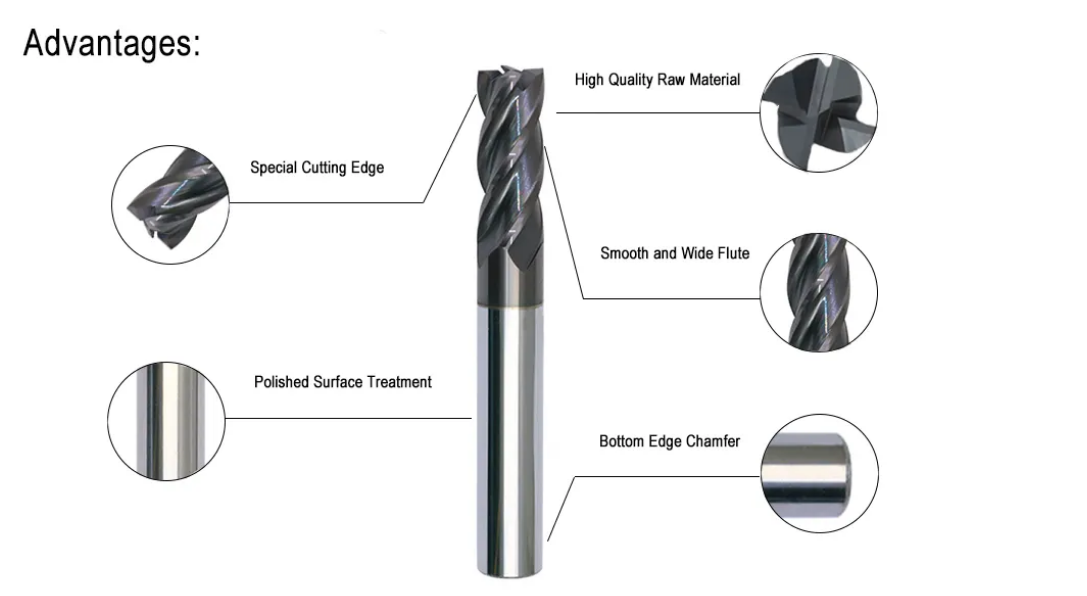

Why Choose Hiboo Tools:
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
