CNC Machine Cutting Tool HRC48 2flutes Solid Carbide Long Neck End Mill

Brand :Hiboo Tool
Raw Material:Carbide, Tungsten Cobalt Alloy
Coating:AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or as your requirements
Overall Length:50-150mm
Flute Diameter:0.3-40mm
Diameter:2-20mm
HRC:45/50/55/65 HRC
Suitable for:wood, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel, etc

Brand:
Hiboo TOOL

Availability:

Quantity:



Inquire Add to Basket

carbide end mill cutter square end mill Solid Carbide Long Neck End Mill

Product Description

Products Function

1. Raw Material

Material	HRC48 carbide rod
WC	88.5%
Co	11.5%
TRS	>4000N/mm2
Hardness	>92HRA
Cutting diameter	1-20mm
A.O.L	50-100mm
Grain size	0.5um
Helix angle	30° degree
Upto	HRC48
Flutes No	2Flutes
Coating	Super TiAIN or others,reduce the friction
Made by	ANCA
Inspected by	Zoller
Suitable for	Steel,stainless steel,nickel alloy,Titanuim
	alloy,cast iron,plastic and other materials

2.Typical application scenarios include:

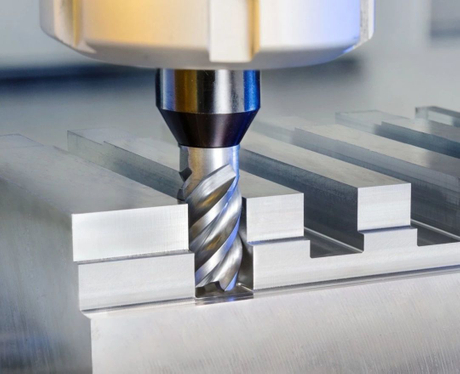

Grooving: Suitable for processing medium-deep grooves, especially parts with strict requirements on depth and width.

Medium hardness materials: 48HRC tools are suitable for processing materials with moderate strength, such as some unhardened steels and some stainless steels.

Medium speed cutting: Medium speed cutting can be used during the processing process to extend tool life and ensure the smoothness of the cutting surface.

Scope-of-application

Product Specification

The following Specification for your refer, We also provide the OEM or ODM service

d	l	D	L
0.5×1×5×4D×50L×2F	0.5	1	4	50
0.6×1.2×6×4D×50L×2F	0.6	1.2	4	50
0.8×1.4×8×4D×50L×2F	0.8	1.4	4	50
1.0×2.5×6×4D×50L×2F	1	2.5	4	50
1.0×2.5×12×4D×50L×2F	1	2.5	4	50
1.0×2.5×16×4D×50L×2F	1	2.5	4	50
1.5×3.0×12×4D×50L×2F	1.5	3	4	50
1.5×3.0×16×4D×50L×2F	1.5	3	4	50
2.0×5.0×12×4D×50L×2F	2	5	4	50
2.0×5.0×20×4D×50L×2F	2	5	4	50
3.0×7.0×16×6D×50L×2F	3	7	6	50
3.0×7.0×25×6D×75L×2F	3	7	6	75

Packaging & Shipping

Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.
Payment Term
T/T ,Western Union , MoneyGram,L/C

packing Exhibition Records

Over the years, we have participated in multiple leading trade shows across the globe, including those in Russia, Mexico, Brazil, Italy, Malaysia, India, and South Africa. These international exhibitions have allowed us to showcase our products, connect with global distributors, and stay ahead of industry trends. By engaging with professionals worldwide, we continue to improve our offerings and meet the unique needs of customers in various industries."

FAQ

1. Are you manufacturer? Do you have factory?
We are professional manufacturer,have more than20 years experience in this field.

2.what can you buy from us?
We specialized in producing and exporting Carbide End Mills, Drills, Inserts, cutter bodies,Reamers and more other customized cutting tools.

3. Is free shipping possible?
We don't offer free shipping service,but we will give you some discount if you buy large quantity products. We have cooperation Express Companies,can offer you the best price of shipping cost.

4. Can you send products to our Forwarder in China?
Yes,if you have Forwarder in China,we will glad to send products to him/her.

5.What cnc machines do you use?
More than 5 pcs ANCA ,Walter CNC grind machines ,and professional staff to make sure the good quality , with short delivery time .

6.Can we be your distributor?
Yes, of course . Welcome to contact us for this matter.

7.Can you product special cutting tools according to drwaing?
Yes We can. We will check the drwaing and reply you in 1 workday.
