Colar Coating Solid Carbide Single Flute Cutter for Aluminum Processing

Product Description

item	value
Customized support	OEM, ODM
Place of Origin	China
Model Number	Variable diameter single edge milling cutter
Material	Tungsten steel
Coating	DLC Coating/Color Coating
Product name	Variable diameter single edge milling cutter
Material	Tungsten steel
Shank diameter	3.175-12mm
Feature	1
Usage	Glass Tile Ceramic Cutting
Advantage	Long Service Life Time
Quality	High Qulaity
Type Of Machine	CNC machine tools
Application range	Ordinary Glass
Packing	10 Pcs/ Box

Specification

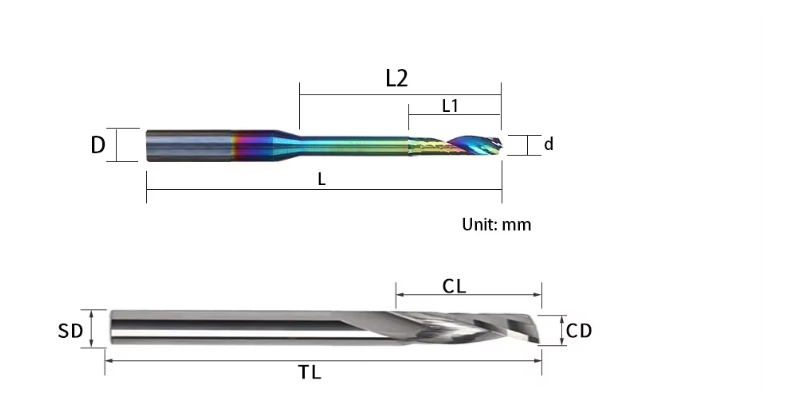

Order No	d Dia	Length of Cut	Shank Dia	O.A.L
1*3/4*3.175*38.5	1	3/4	3.175	38.5
1.5*5/6/8*3.175*38.5	1.5	5/6/8	3.175	38.5
2*6/8/10/12*3.175*38.5	2	6/8/10/12	3.175	38.5
3.175*8/12/15/17*3.175*38.5	3.175	8/12/15/17	3.175	38.5
4*12/17/22*4*45	4	12/17/22	4	45
4*25*4*50	4	25	4	50
5*17/22*6*50	5	17/22	6	50
6*25*6*50	6	25	6	50
8*17/22*8*50	8	17/22	8	50
8*28*8*60	8	28	8	60
8*32*8*75	8	32	8	75
8*52*8*85	8	52	8	85
10*25*10*75	10	25	10	75
10*32*10*75	10	32	10	75
10*45*10*75	10	45	10	75
10*52*10*100	10	52	10	100
12*22/25*12*75	12	22/25	12	75
12*32/35*12*75	12	32/35	12	75

CNC Tungsten Carbide Single Flute End Mill for Aluminum

CNC milling of aluminum can be difficult, because the material can stick to the flutes and the chips can pack. Today's high performance cutting tools for aluminum have large flutes to yield the maximum metal removal rates possible. They also feature eccentric grinding on the outside diameters of the bits to give them strength and stability, and large flute gullets for high metal removal rates. Aluminum milling bits are available in square end and ball end mill geometries. They are also available in 1,2 and 3 flute end mill designs. These are the best carbide end mill bits for aluminum milling!

Advantages CNC Tungsten Carbide Single Flute End Mill for Aluminum
1. Innovative new geometries designed in conjunction. The benefit is a range of state-of-the-art carbide cutting tools with superior performance.
2. Sub-micron carbide grade of origin.
3. Optimal flute geometry delivers maximum metal removal rates and better chip evacuation.
4. Effective in a full range of machine speeds.
5. Only one tool is needed for use in roughing and finishing operations.
6. Can take deeper and wider cuts - axial and radial.
7. Shank tolerances to h6.
8. Reinforced corner by extra positive dubbing for long tool life.
9. Centre cutting with drilling possibility.
10. Designed to works standard over the 1mm to 20mm diameter range.
11. Multiple corner radii and extended neck configurations are available to maximise metal removal rates.

Process introduction:
1. Surface TiSiN Coated
2. Strength2500-4000N/mm2 Controling ModeCNC
3. UsageMetal Chemical Composition6%-12%Co-WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic
materials,fiberglass,carbon fiber and other non-metallic.
