Product Description
China Solid Carbide CNC End Mill Cutter Single Flute Router Bits Suitable for Aluminum, Plastic, Acrylic, MDF, PVC processing.

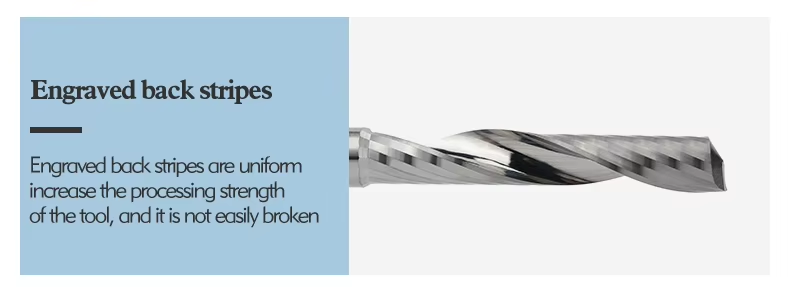

Engraved back stripes
Engraved back stripes are unifom increase the processing strength of the tool, and it is not easily broken.

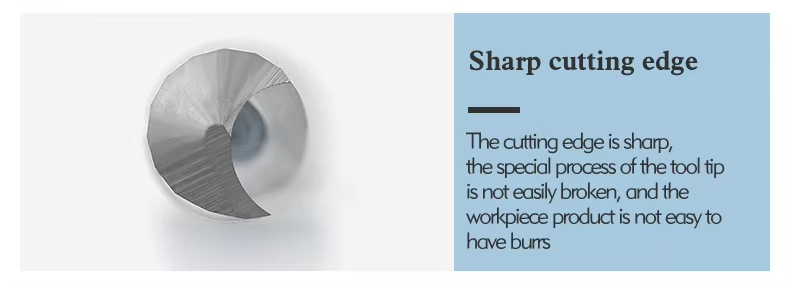

The cutting edge is sharp,
the special process of the tool tip is not easily broken, and the workpiece product is not easy to have buns.

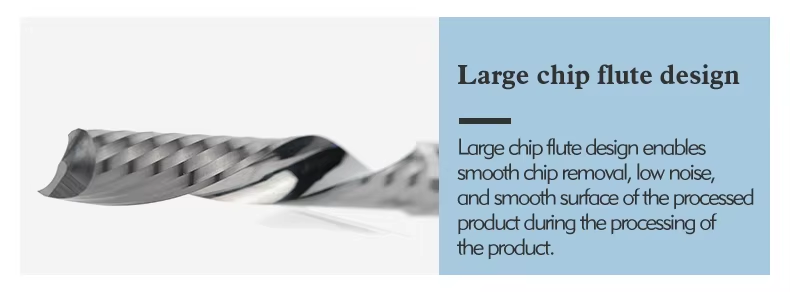

Large chip flute design
Large chip flute design enables smooth chip removal, low noise, and smooth surface of the processed product during the processing of the product.
|
Order No
|
d Dia
|
Length of Cut
|
Shank Dia
|
O.A.L
|
|
1*3/4*3.175*38.5
|
1
|
3/4
|
3.175
|
38.5
|
|
1.5*5/6/8*3.175*38.5
|
1.5
|
5/6/8
|
3.175
|
38.5
|
|
2*6/8/10/12*3.175*38.5
|
2
|
6/8/10/12
|
3.175
|
38.5
|
|
3.175*8/12/15/17*3.175*38.5
|
3.175
|
8/12/15/17
|
3.175
|
38.5
|
|
4*12/17/22*4*45
|
4
|
12/17/22
|
4
|
45
|
|
4*25*4*50
|
4
|
25
|
4
|
50
|
|
5*17/22*6*50
|
5
|
17/22
|
6
|
50
|
|
6*25*6*50
|
6
|
25
|
6
|
50
|
|
8*17/22*8*50
|
8
|
17/22
|
8
|
50
|
|
8*28*8*60
|
8
|
28
|
8
|
60
|
|
8*32*8*75
|
8
|
32
|
8
|
75
|
|
8*52*8*85
|
8
|
52
|
8
|
85
|
|
10*25*10*75
|
10
|
25
|
10
|
75
|
|
10*32*10*75
|
10
|
32
|
10
|
75
|
|
10*45*10*75
|
10
|
45
|
10
|
75
|
|
10*52*10*100
|
10
|
52
|
10
|
100
|
|
12*22/25*12*75
|
12
|
22/25
|
12
|
75
|
|
12*32/35*12*75
|
12
|
32/35
|
12
|
75
|
