HRC 65 Tungsten Carbide CNC Milling Cutter 2 Flutes

HRC65 2 Flutes ball nose end mills:

1. Features of Two-edge Alloy Ball Cutter
1. Multi-edge design: The Two-edge alloy ball cutter adopts a two-edge design, which enables the tool to evenly distribute the cutting force during the cutting process, improving the cutting efficiency and stability.
2. High hardness material: The two-edge alloy ball cutter usually adopts high-hardness alloy material, such as cemented carbide or high-speed steel, etc., which has good wear resistance and impact resistance, and can cope with various complex and harsh processing environments.
3. Excellent cutting performance: Due to the use of high-hardness material and multi-edge design, the four-edge alloy ball cutter can maintain a sharp cutting edge during the cutting process, providing excellent cutting performance, such as high cutting speed, low cutting force, good chip control, etc.
4. Applicable to a variety of materials: The four-edge alloy ball cutter can be used for the processing of a variety of materials, such as stainless steel, titanium alloy, aluminum alloy, etc. It can cope with the cutting requirements of different materials and provide stable processing quality and efficiency.

Brand:
HIBOO TOOL

Availability:

Quantity:



Inquire Add to Basket

ball nose end mills round nose end milling cutter round nose end mills ball nose cnc milling cutter

Product Description

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

1.Product Name: Factory wholesale CNC Metalworking Nano Coating Ball Nose End Mills For Steel Cutting
2.Standard size: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3.Advantages: High Precision,Good Surface & Performace

Product Name	Factory wholesale CNC Metalworking Nano Coating Ball Nose End Mills For Steel Cutting
Material	100% New material
Coating	Nano Coating
Standard	ISO
OEM	Supply
HRC	65°
Machining	Carbon Steel/Mould steel /Stainless steel

Super Raw Material

Item Grade	HRC45 (YG10X )	HRC55 (YL10.2 & WF25)	HRC60 (Germany K44 &K40)	HRC65 (Sandvik H10F)
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

Super Coating

Coating Classifying and Advantage
Item	Coating Type	AlTin	TiAlN	TiSiN	Naco
Characteristic	Hardness(HV)	3300	2800	4300	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(°C)	900	800	1000	1200
	Friction Coefficient	0.35	0.3	0.25	0.4
	Color	Black	Bronze	Bronze and gold	Blue
	Advantages	High heat stability	Normally cutting	Suitable for heavy cutting, and high hardness cutting	For high precision cutting
		Suitable for high speed, dry cutting		Suitable for cutting mould steel, stainless steel	Suitable for high hardness cutting, mould steel processing
		Most suitable for carbide cutting tools, turning insert

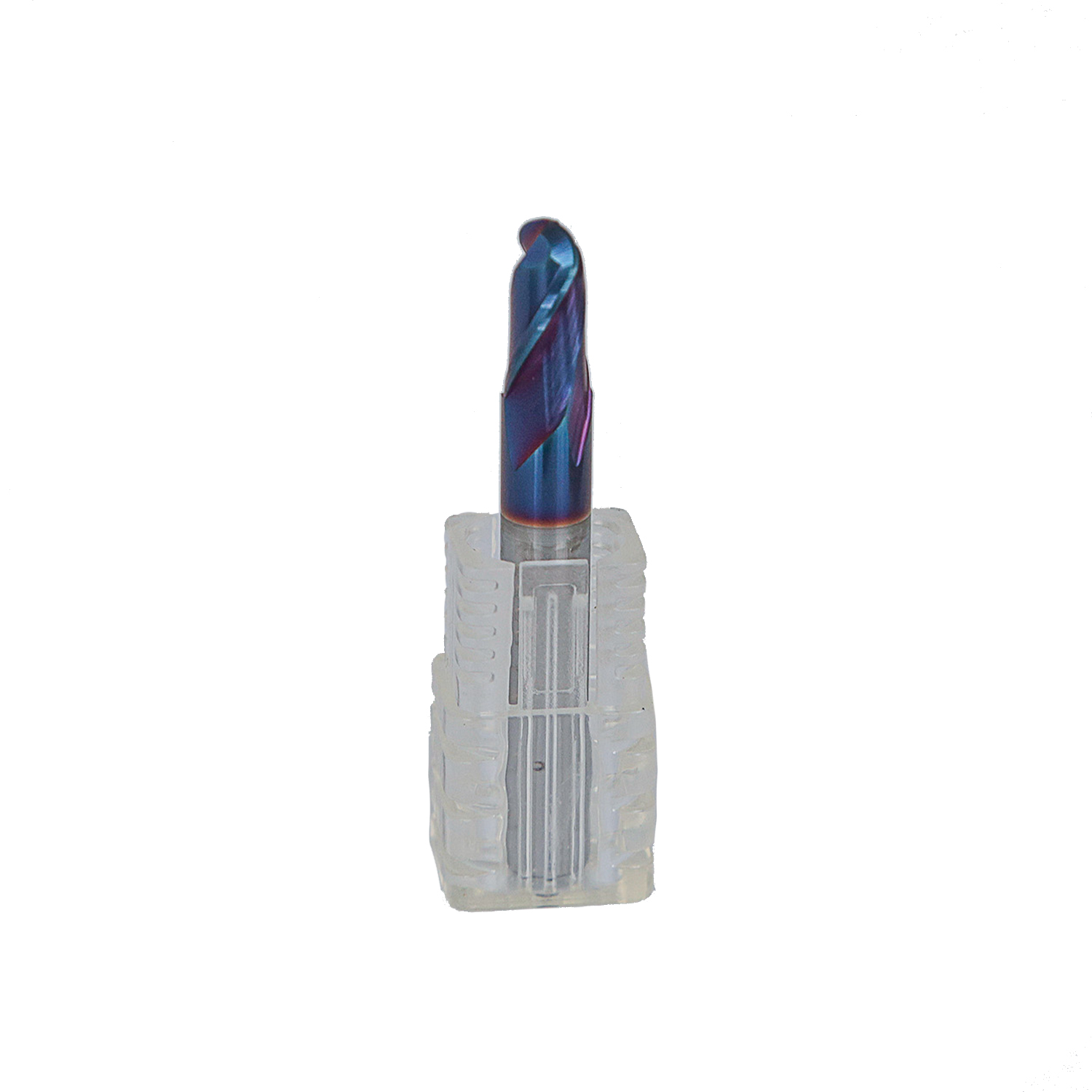

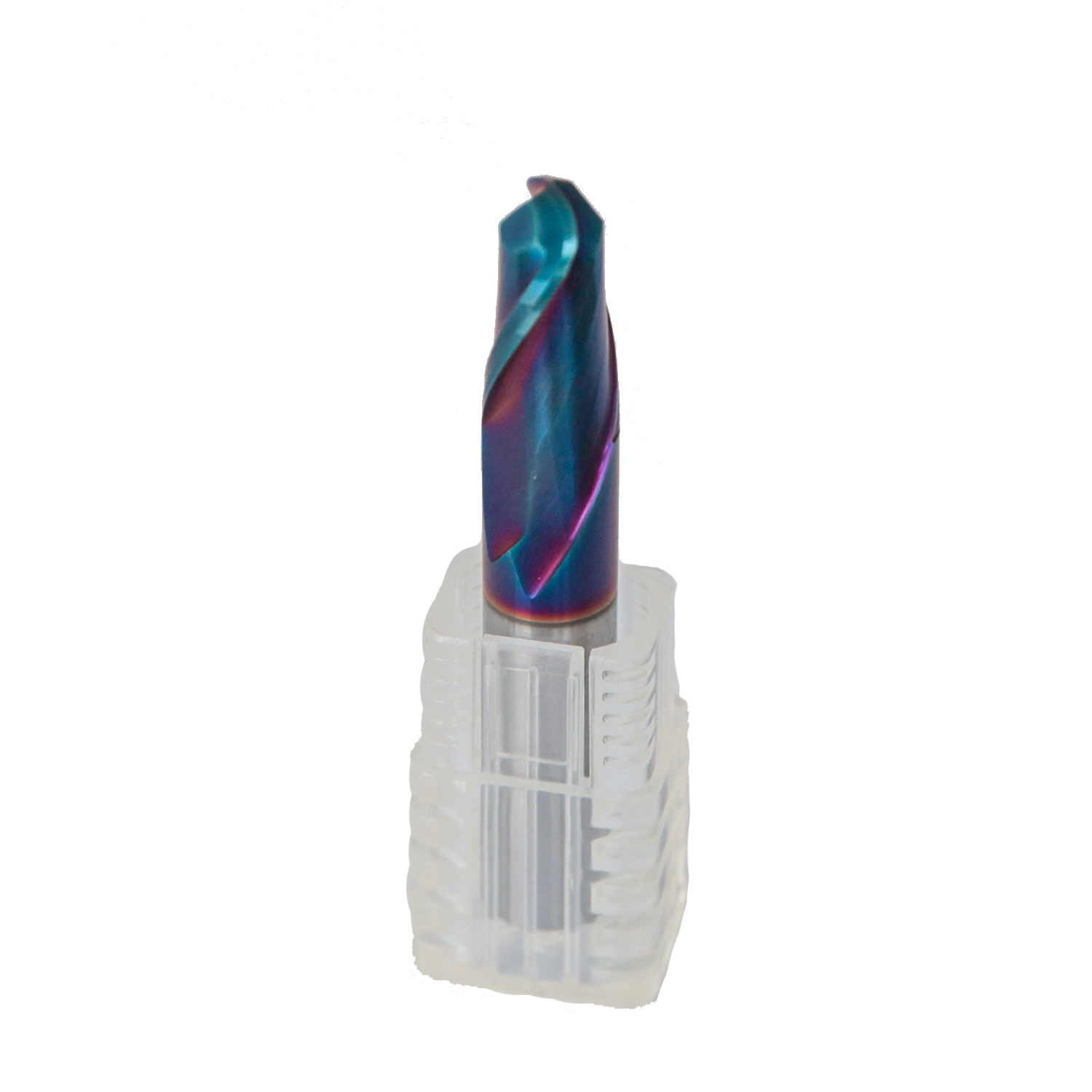

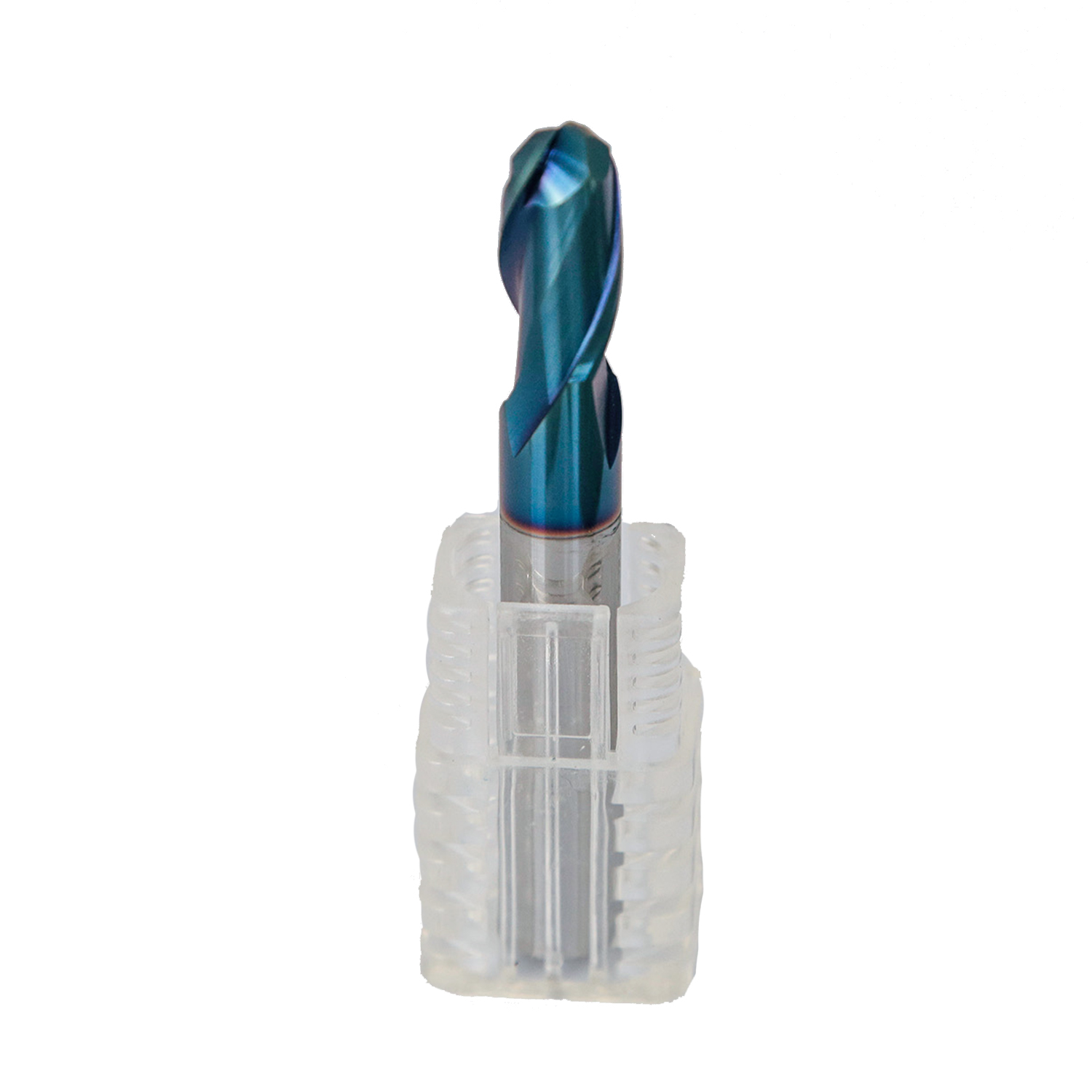

Product Show

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

Product Features

1. The tungsten steel raw material is finely ground and has a spiral groove to prevent the blade from being stuck.
2. Imported passivation equipment, spray type increases the corrosion resistance and wear resistance of the tool, and careful grinding makes the cutting edge of the tool without burrs, and the product has a high chamfering finish.
3. The full-edge anti-vibration design can suppress chatter during processing and improve the quality of the processed surface.
4. The design of the circular arc margin is adopted to make the milling cutter wear less during milling, the blade edge is lasting and sharp, and the spiral groove is used for smooth chip removal.

Wyk Blue Nano Ball Nose Milling Cutter Ballnose End Mill for Metalworking Carbide End Mills Manufacturer 2 Flutes Ball Nose End Mills

Product Instructions

1. Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.
2. The shorter the tool extends from the chuck, the better. If the tool extends longer, the speed, feed speed or cutting amount shall be reduced.
3. In case of abnormal vibration or sound during cutting, please reduce the rotation speed and cutting amount until the condition is improved.
4. Spray type and air jet type are preferred for steel cooling, which can improve the use effect of milling cutter.
5. Note: it is not applicable to low-speed machines such as bench drill and hand electric drill

D(radius)	l (blade length)	d(Shank diameter)	L(total length)
R0.5	2	4	50
R0.75	3	4	50
R1	4	4	50
R1.25	5	4	50
R1.5	6	4	50
R1.5	6	3	50
R1.5	6	4	75
R1.5	6	5	100
R1.75	7	4	50
R2	8	4	50
R2	8	4	75
R2	8	4	100
R2.5	10	6	50
R2.5	10	5	50
R2.5	10	6	75
R2.5	10	7	100
R3	12	6	50
R3	12	6	75
R3	12	6	100
R3.5	14	8	60
R4	16	8	60
R4	16	8	75
R4	16	8	100
R4.5	18	10	75
R5	20	10	75
R5	20	10	100
R6	24	12	75
R6	24	12	100
R7	28	14	80
R8	32	16	100
R9	36	18	100
R10	40	20	100
R3	12	6	150
R4	16	8	150
R5	20	10	150
R6	24	12	150
R7	28	14	150
R8	32	16	150
R9	36	18	150
R10	40	20	150

Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group

CNC Machine Cutting Tool HRC55 Solid Carbide Long Neck End Mill

Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .

7. Payment Term
T/T ,Western Union , MoneyGram,L/C

8.Why Choose Hiboo Tools
Several years' professional producting and exporting experience

Advanced RD department meet your special demands

High precision CNC machines,high standard and strict inspection

Custom demand are welcomed ,OEM and ODM Service

All payment terms supported

Fast delivery time and Convenient Transportations

More than 20000 products are available

For your suggestions or complaints,We will handle them Soonest
