| Name | End mill |
| Hardness | HRC48/HRC55/HRC58/HRC60/HRC63/HRC65 |
| Type | Flat/Ball Nose/Corner Radius/Rough |
| Flutes | 2/3/4/5/6 Flutes |
| Size | Our standard size or as request |
| Coating | Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond |
| Public errand | 0-0.5um |
| Suitable to process | Copper,cast iron,carbon steel,mould Steel, Stainless Steel, , tool Steel, etc. |
| OEM | OEM/ODM highly welcome |
| Item Grade | HRC48 | HRC55 | HRC60 | HRC65 |
| | Grain size 0.7um Co10%
Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12%
Flexural strength
4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
| Details | TiN | TiAlN | AlTiN | TISIN | Nano Blue | DLC |
| Color | Golden | Purple | Black | antique brass | Dazzle blue | Dazzle black |
| HV | 2300 | 3200 | 3400 | 3600 | 42(GPA) | 1000~4000 |
| Thickness/µm | 0.4 | 0.5 | 0.5 | 0.4 | 0.4 | 0.5-2.0 |
| Friction coefficient | 0.4 | 0.35 | 0.4 | 0.45 | 0.4 | 0.05 |
| MAX Temperature | 500 | 800 | 900 | 1000 | 1200 | 400 |
| Description | cost-effective | General | High speed
Hige HRC | Processing copper, titanium, mold Steel | General High Speed Cutting | non-ferrous metals
graphite and plastics |
| Blade Dia | Blade Length | Shank Dia(D) | Overall Length(L) |
| 1.0 | 3 | 4 | 50 |
| 1.5 | 4 | 4 | 50 |
| 2.0 | 6 | 4 | 50 |
| 2.5 | 8 | 4 | 50 |
| 3.0 | 8 | 4 | 50 |
| 3.5 | 10 | 4 | 50 |
| 4.0 | 11 | 4 | 50 |
| 5 | 13 | 6 | 50 |
| 5 | 13 | 5 | 50 |
| 6 | 15 | 6 | 50 |
| 8 | 20 | 8 | 60 |
| 10 | 25 | 10 | 75 |
| 12 | 30 | 12 | 75 |
| 14 | 35 | 14 | 100 |
| 16 | 40 | 16 | 100 |
| 18 | 45 | 18 | 100 |
| 20 | 45 | 20 | 100 |
if need other size, pls feel free to contact us!
Tolerance of End Mill Diameter:
1<D≤6-0.010~-0.030
6<D≤10-0.015~-0.040
10<D≤20-0.020~-0.050
Cutting Parameters:
VC=150(120-180)m/min(4F)
Vc=130(120-180)m/min(2F)
ap=1/3D(1/8-1/2D)
ae=1/2D(1/4-1D)
fz=0.15mm(0.02-0.2)
Please adjust the parameters according to the material and hardness of workpiece.
Coating: TiSiN,containing silica,very high surface hardness and high thermal resistance.

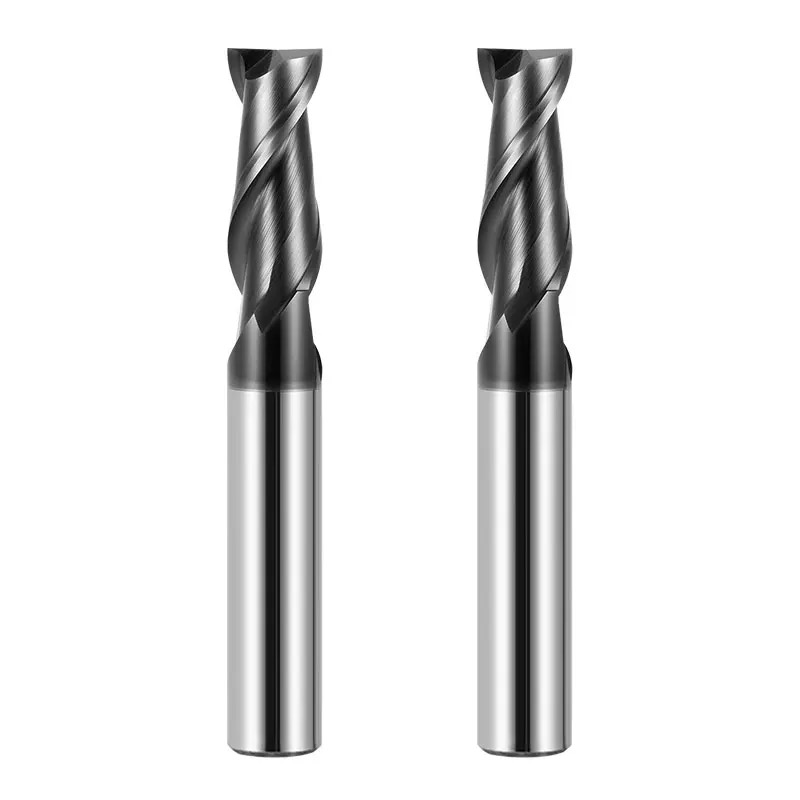

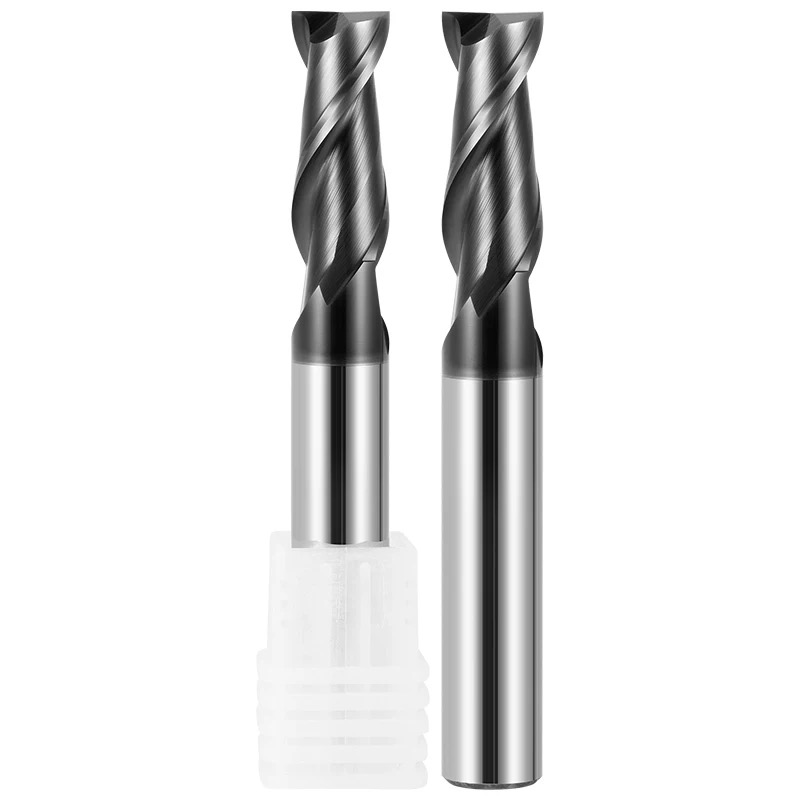

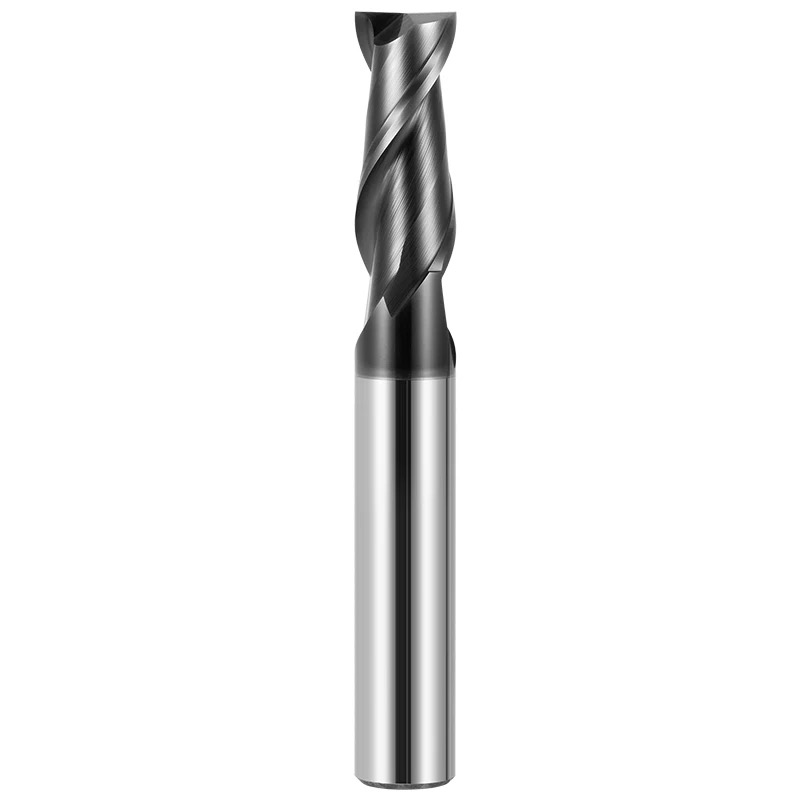

2Fluters: good for chip removal,easy for vertical feed processing,widely used in slot and hole processing.
4Fluters: high rigidity,widely used in shallow slot,profile milling,and finish machining.
Professional Carbide End Mill Manufacture
Size (standard & non-standard)
Standard:
our standard carbide milling cutters cover the diameter range from 0.2mm to 16mm meeting the international
manufacturing management and quality standards.
Non-Standard:
Our factory can manufacture the non-standard products as per the technology drawing or samples.
