Advanced Producing Equipment and Inspection Equipment.
Widely use in aerospace,rail transportation,medical equipment and electronic production,automobile industry .

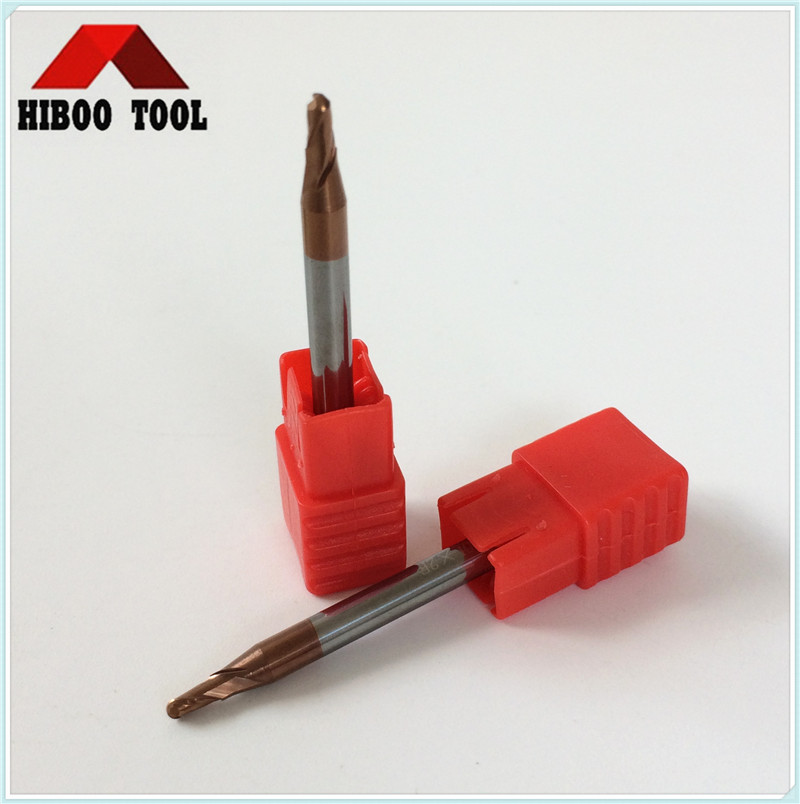

1. Basic Principle of Ball Cutter
Ball Cutter is a rotary tool, mainly composed of a cutter head, a handle and a clamping device. There is a spherical cutting edge on the cutter head, which realizes cutting work by rotation.
Ball Cutter adopts two methods: full circle cutting and semicircular cutting, and has the advantages of high cutting efficiency and good processing quality.
2. Common Application Scenarios
1. Manufacturing high-precision bearings: Ball Cutter can be used for turning the outer spherical surface and inner spherical surface when manufacturing bearings, which can meet the requirements of high precision and high surface quality.
2. Manufacturing molds: Ball Cutter can be used to process various shapes of concave and convex molds, with high processing efficiency, high processing accuracy, and good surface quality of the processed mold, which can meet the requirements of
mold manufacturing.
.
3. Manufacturing parts: Ball Cutter can be used to process circular and spherical parts, such as gears, aviation parts, medical equipment, etc.
1. Super-Fine Micrograin carbide rod:
WC=90%, Co=10%, TRS>3800N/mm2; Hardness>91.8HRA, Grain size: 0.5um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel,
heat-treament steel. Aluminum alloy steel, Non ferrous alloy
(Order No) | Cutting | Shank | Flute | A. 0. l |
d | D | l | L | |
R0.5× 2× 4D× 50L × 2F | 1 | 4 | 2 | 50 |
R0.75× 3× 4D× 50L × 2F | 1.5 | 4 | 3 | 50 |
R1.0× 4× 4D× 50L × 2F | 2 | 4 | 4 | 50 |
R1.25× 5× 4D× 50L × 2F | 2.5 | 4 | 5 | 50 |
R1.5× 6× 4D× 50L × 2F | 3 | 4 | 6 | 50 |
R1.75× 7× 4D× 50L × 2F | 3.5 | 4 | 7 | 50 |
R2.0× 8× 4D× 50L × 2F | 4 | 4 | 8 | 50 |
R2.5× 10× 6D× 50L × 2F | 5 | 6 | 10 | 50 |
R3.0× 12× 6D× 50L × 2F | 6 | 6 | 12 | 50 |
R3.5× 14× 8D× 60L × 2F | 7 | 8 | 14 | 60 |
R4.0× 16× 8D× 60L × 2F | 8 | 8 | 16 | 60 |
R4.5× 18× 10D× 75L × 2F | 9 | 10 | 18 | 75 |
R5.0× 20× 10D× 75L × 2F | 10 | 10 | 20 | 75 |
R5.5× 22× 12D× 75L × 2F | 11 | 12 | 22 | 75 |
R6.0× 24× 12D× 75L × 2F | 12 | 12 | 24 | 75 |
R7.0× 28× 14D× 100L × 2F | 14 | 14 | 28 | 100 |
R8.0× 32× 16D× 100L × 2F | 16 | 16 | 32 | 100 |
R9.0× 36× 18D× 100L × 2F | 18 | 18 | 36 | 100 |
R10× 40× 20D× 100L × 2F | 20 | 20 | 40 | 100 |
