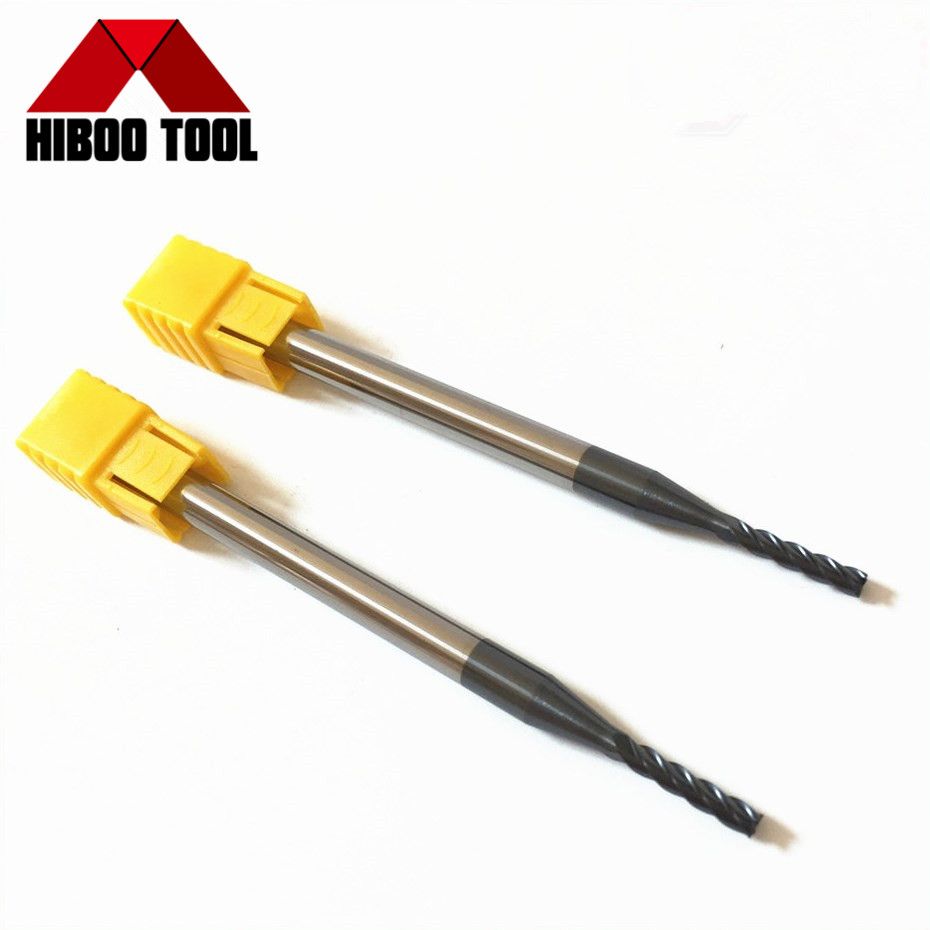

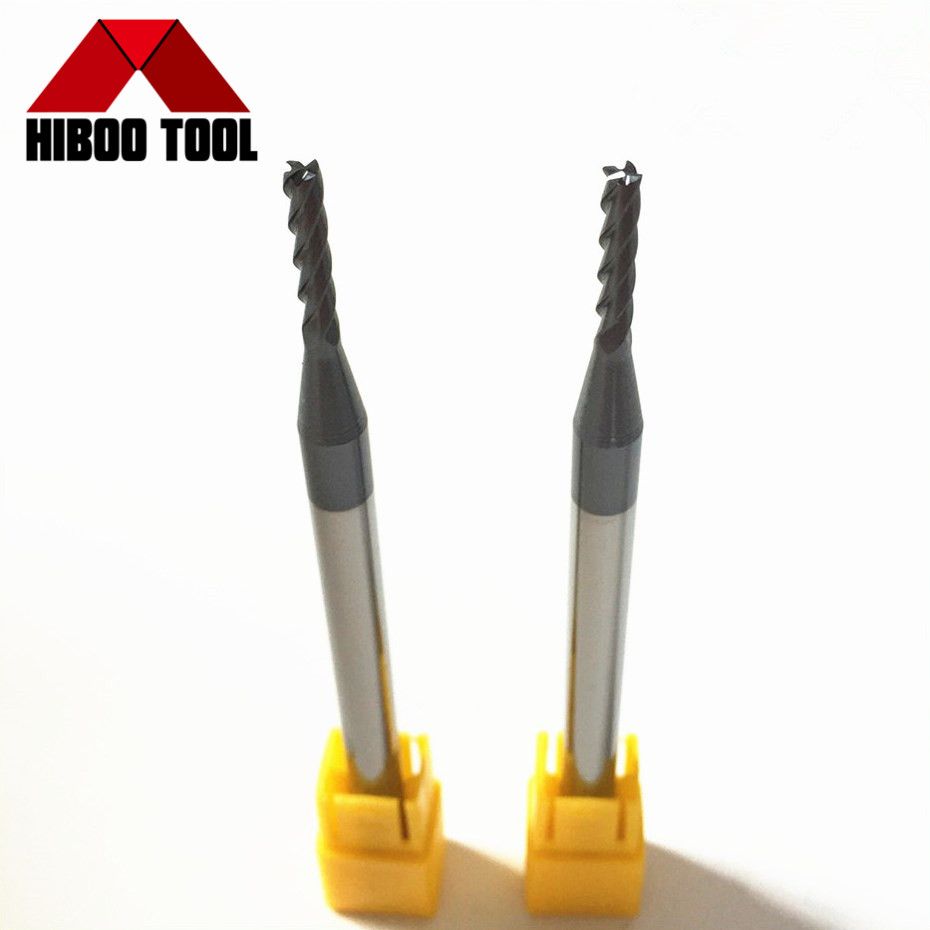

HRC55 Carbide Long neck square end mill
Name | Long Neck Square End Mill |
Material | Carbide |
Helix Angle | 35° |
Coating | AITiN/TiAlCN/TiSiN or customized |
HRC | 50 |
Diameter | 0.3-3mm or customized |
Neck Length | 2-20mm or customized |
Overall length | 50-mm or customized |
All the specs. can be customized |
The following are its main features:
55-degree cutting angle: This angle of the cutting edge design is suitable for machining medium to high hardness materials, which can effectively reduce cutting resistance, improve cutting stability, and reduce vibration.
4-edge structure: The 4-edge design increases the number of cutting edges, thereby improving cutting efficiency and ensuring a high surface finish. Suitable for efficient cutting needs in roughing and finishing.
Deep groove design: The deep groove chip groove allows chips to be discharged smoothly, reducing the wear of the tool caused by chip accumulation, which is particularly suitable for occasions where a large amount of chips is generated during milling, such as machining medium to high hardness materials.
Flat head (end mill): The flat head shape is suitable for plane machining and side milling, making it excellent in machining that requires precise vertical surfaces and smooth bottom surfaces.
Coating material (optional): Common coatings include titanium aluminum nitride (TiAlN), chromium aluminum nitride (AlCrN), etc. These coatings can improve the wear resistance and heat resistance of the tool and are suitable for machining under high speed and high temperature conditions.
3. The following Specification for your refer, We also provide the OEM or ODM service
d | l | D | L | |
0.5×1×5×4D×50L×2F | 0.5 | 1 | 4 | 50 |
0.6×1.2×6×4D×50L×2F | 0.6 | 1.2 | 4 | 50 |
0.8×1.4×8×4D×50L×2F | 0.8 | 1.4 | 4 | 50 |
1.0×2.5×6×4D×50L×2F | 1 | 2.5 | 4 | 50 |
1.0×2.5×12×4D×50L×2F | 1 | 2.5 | 4 | 50 |
1.0×2.5×16×4D×50L×2F | 1 | 2.5 | 4 | 50 |
1.5×3.0×12×4D×50L×2F | 1.5 | 3 | 4 | 50 |
1.5×3.0×16×4D×50L×2F | 1.5 | 3 | 4 | 50 |
2.0×5.0×12×4D×50L×2F | 2 | 5 | 4 | 50 |
2.0×5.0×20×4D×50L×2F | 2 | 5 | 4 | 50 |
3.0×7.0×16×6D×50L×2F | 3 | 7 | 6 | 50 |
3.0×7.0×25×6D×75L×2F | 3 | 7 | 6 | 75 |
