HRC65 Nano Coated 4 Flutes Ball Nose End Mill

‌4-flute flat end mills have multiple roles and benefits in industrial machining‌. First, the design of 4-flute flat end mills enables efficient chip evacuation and provides stability during the cutting process, thereby ensuring precision and accuracy in machining‌. Second, the versatility of this tool makes it suitable for a variety of machining operations, including roughing, finishing and grooving, and can cope with different materials and machining needs‌. In addition, 4-flute flat end mills excel in specific applications, such as when machining high-temperature alloys in the aerospace industry, its multiple grooves can effectively dissipate heat, prevent premature tool failure, and ensure consistent performance‌

Brand:
HIBOO

Availability:

Quantity:



Inquire Add to Basket

ball nose end mill 4 flutes ball nose end mills

Product Description

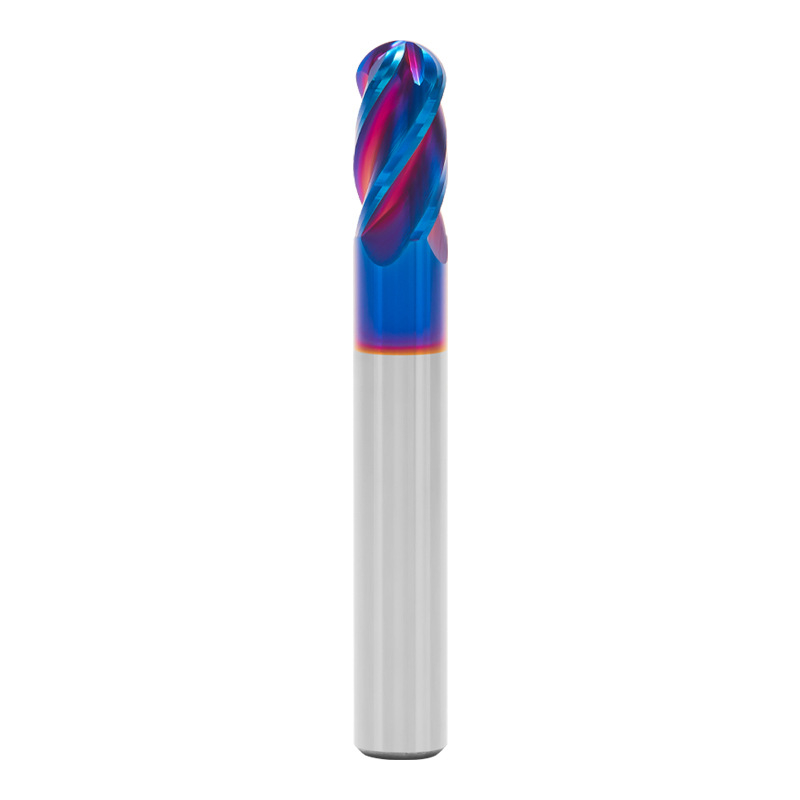

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

1.Product Name: Factory wholesale CNC Metalworking Nano Coating Ball Nose End Mills For Steel Cutting
2.Standard size: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3.Advantages: High Precision,Good Surface & Performace

Product Name	Factory wholesale CNC Metalworking Nano Coating Ball Nose End Mills For Steel Cutting
Material	100% New material
Coating	Nano Coating
Standard	ISO
OEM	Supply
HRC	65°
Machining	Carbon Steel/Mould steel /Stainless steel

Super Raw Material

Item Grade	HRC45 (YG10X )	HRC55 (YL10.2 & WF25)	HRC60 (Germany K44 &K40)	HRC65 (Sandvik H10F)
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

Super Coating

Coating Classifying and Advantage
Item	Coating Type	AlTin	TiAlN	TiSiN	Naco
Characteristic	Hardness(HV)	3300	2800	4300	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(°C)	900	800	1000	1200
	Friction Coefficient	0.35	0.3	0.25	0.4
	Color	Black	Bronze	Bronze and gold	Blue
	Advantages	High heat stability	Normally cutting	Suitable for heavy cutting, and high hardness cutting	For high precision cutting
		Suitable for high speed, dry cutting		Suitable for cutting mould steel, stainless steel	Suitable for high hardness cutting, mould steel processing
		Most suitable for carbide cutting tools, turning insert

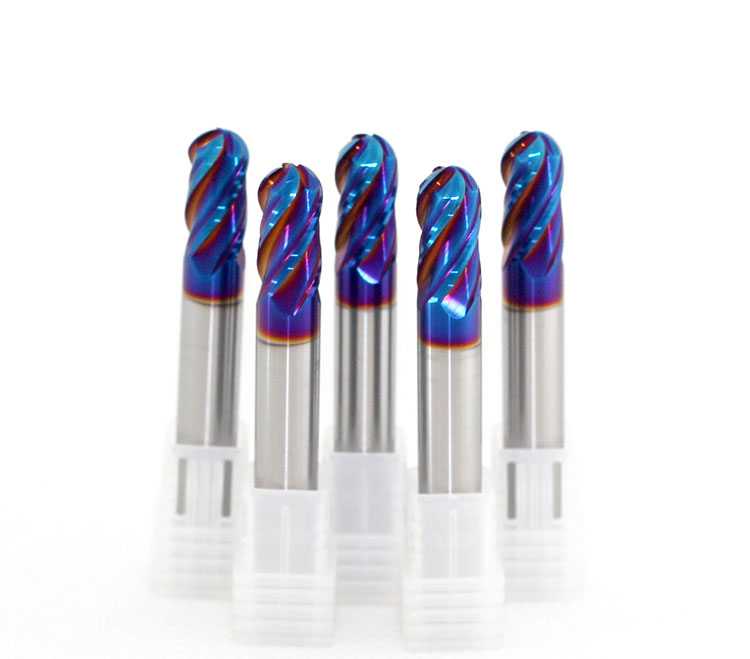

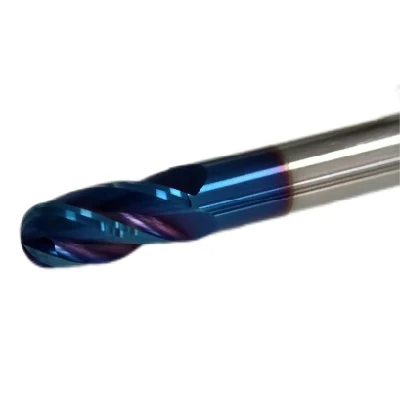

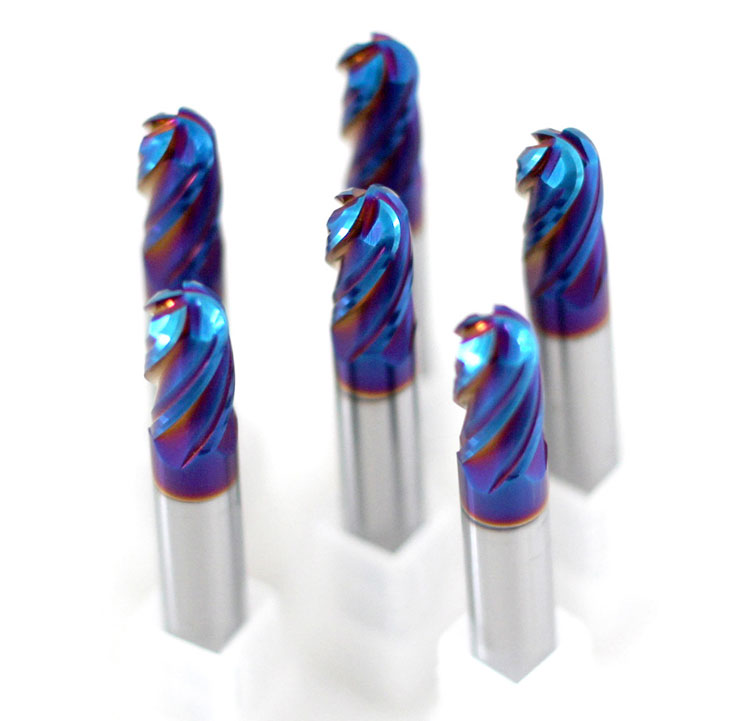

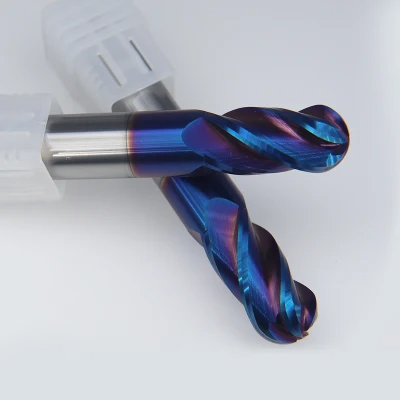

Product Show

O1CN01aEgLU527MfUILGHag_!!2216634277783-0-cib 1729494679312 详情-08 (1) 详情-10 (1)

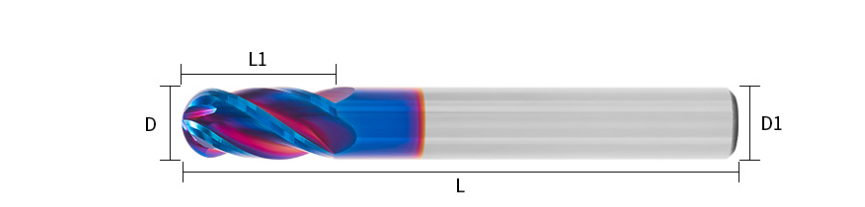

Product Specification

The following Specification for your refer, We also provide the OEM or ODM service

(Order No)	Cutting	Shank	Flute	A.0.l
(Order No)	d	D	l	L
R0.5×2×4D×50L×2F	1	4	2	50
R0.75×3×4D×50L×2F	1.5	4	3	50
R1.0×4×4D×50L×2F	2	4	4	50
R1.25×5×4D×50L×2F	2.5	4	5	50
R1.5×6×4D×50L×2F	3	4	6	50
R1.75×7×4D×50L×2F	3.5	4	7	50
R2.0×8×4D×50L×2F	4	4	8	50
R2.5×10×6D×50L×2F	5	6	10	50
R3.0×12×6D×50L×2F	6	6	12	50
R3.5×14×8D×60L×2F	7	8	14	60
R4.0×16×8D×60L×2F	8	8	16	60
R4.5×18×10D×75L×2F	9	10	18	75
R5.0×20×10D×75L×2F	10	10	20	75
R5.5×22×12D×75L×2F	11	12	22	75
R6.0×24×12D×75L×2F	12	12	24	75
R7.0×28×14D×100L×2F	14	14	28	100
R8.0×32×16D×100L×2F	16	16	32	100
R9.0×36×18D×100L×2F	18	18	36	100
R10×40×20D×100L×2F	20	20	40	100

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

Packaging & Shipping

Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.
Payment Term
T/T ,Western Union , MoneyGram,L/C

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

Company Profile:

HRC65 Nano Coated Ball Nose End Mill Machine Cutting Tools Milling Cutter

Changzhou Hiboo Tools Co., Ltd is a high-tech enterprise with all vitality, potential and comprehenive Strength. The company located in Changzhou, Jiangsu, China, a unique place near by Shanghai.We are Gold Supplier who specialized in producting and exporting Carbide End Mills, Drills, Inserts, Reamers and more other customized cutting tools.The efficient workshop and Imported 5AXIS grind machines run by skillful operators. The strict inspection standards to make sure each cutter is inspected by Zoller Measuring and Inspecting Machine. Now, Our monthly output up to 50000pcs of carbide end mills, drills ect, More than 20000 cutters are in stock which meet your urgent requirements. Enough Raw Materials in stock to keep the price stability.
