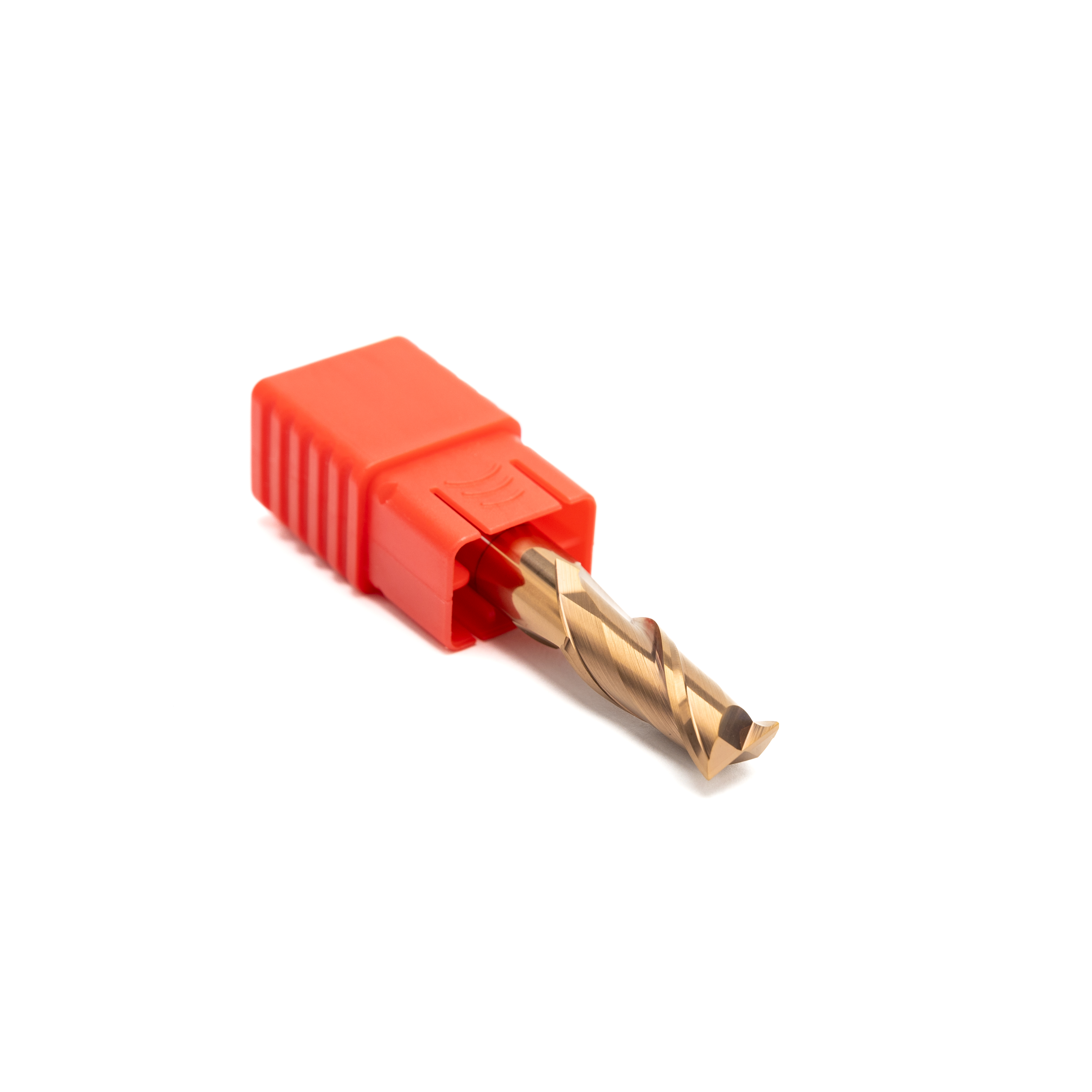

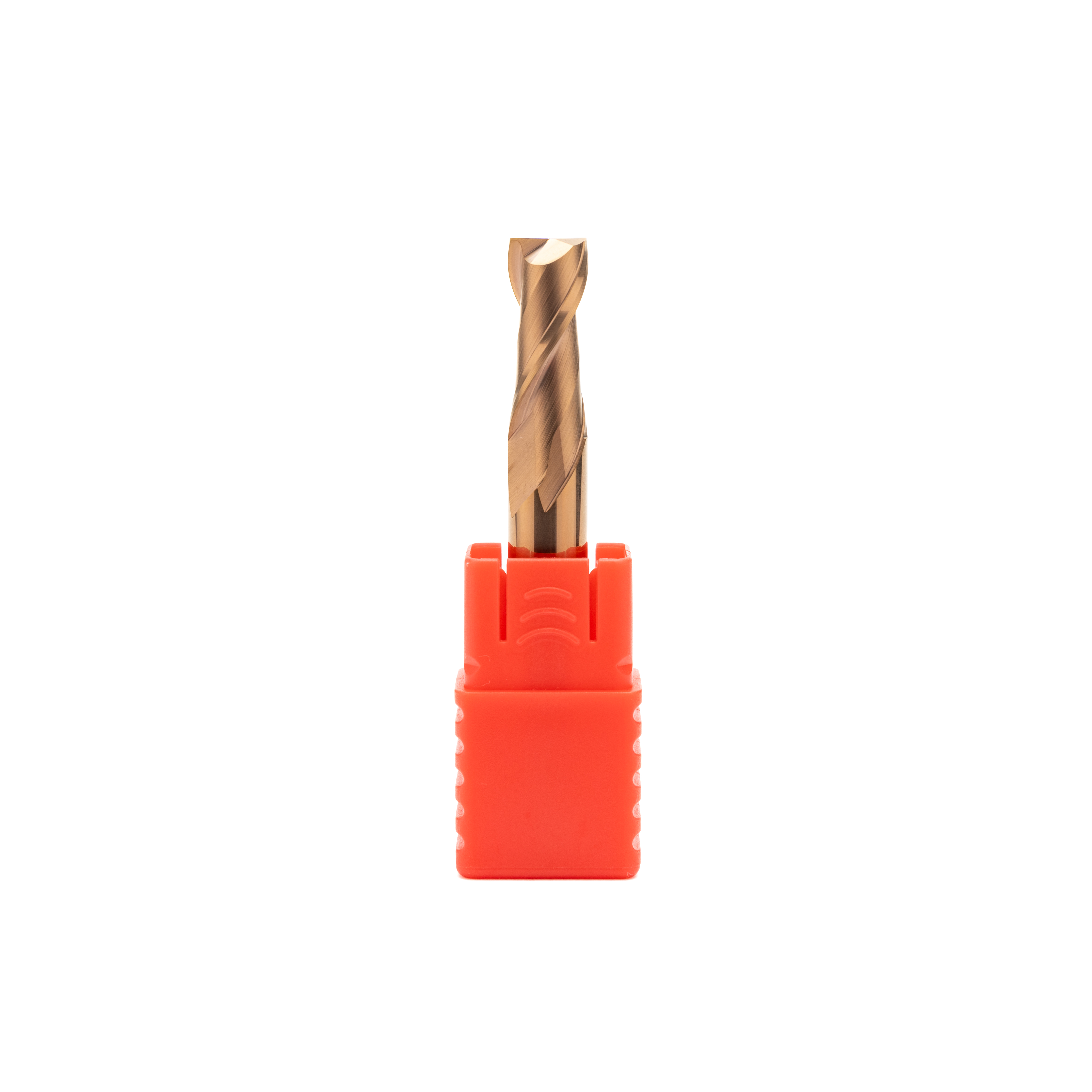

HRC60 Carbide 2 Flutes Endmill with Bronze Coating

Large core diameter design, sharp chip removal
Using foreign first-class precision machine tools to grind a unique spiral blade angle, the large core diameter design enhances rigidity and shock resistance
The large chip removal space is not easy to accumulate chips, not easy to cut, sharp and wear-resistant, smooth chip removal, and high cutting efficiency.

Brand:
Hiboo Tools

Availability:

Quantity:



Inquire Add to Basket

HRC60 Carbide End Mills Flat End Mills Carbide Milling Cutters 2 edges Milling Cutters

Product Description

1.Product Parameters

Name	End mill
Hardness	HRC48/HRC55/HRC58/HRC60/HRC63/HRC65
Type	Flat/Ball Nose/Corner Radius/Rough
Flutes	2/3/4/5/6 Flutes
Size	Our standard size or as request
Coating	Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond
Public errand	0-0.5um
Suitable to process	Copper,cast iron,carbon steel,mould Steel, Stainless Steel, , tool Steel, etc.
OEM	OEM/ODM highly welcome

2.Super Raw Material

Item Grade	HRC48	HRC55	HRC60	HRC65
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

3.Super Coating

Details	TiN	TiAlN	AlTiN	TISIN	Nano Blue	DLC
Color	Golden	Purple	Black	antique brass	Dazzle blue	Dazzle black
HV	2300	3200	3400	3600	42(GPA)	1000~4000
Thickness/µm	0.4	0.5	0.5	0.4	0.4	0.5-2.0
Friction coefficient	0.4	0.35	0.4	0.45	0.4	0.05
MAX Temperature	500	800	900	1000	1200	400
Description	cost-effective	General	High speed Hige HRC	Processing copper, titanium, mold Steel	General High Speed Cutting	on-ferrous metals graphite and plastics

4. Size list

Blade Dia	Blade Length	Shank Dia(D)	Overall Length(L)
1.0	3	4	50
1.5	4	4	50
2.0	6	4	50
2.5	8	4	50
3.0	8	4	50
3.5	10	4	50
4.0	11	4	50
5	13	6	50
5	13	5	50
6	15	6	50
8	20	8	60
10	25	10	75
12	30	12	75
14	35	14	100
16	40	16	100
18	45	18	100
20	45	20	100
