Products Function
Deep groove design: The deep groove tool design can effectively remove chips, improve cutting efficiency, and reduce tool wear caused by chip accumulation during processing.
65-degree cutting angle: The 65-degree cutting angle is more stable in cutting force and is suitable for materials with higher hardness. It can balance the tool cutting force and help extend tool life.
Blue nano coating: The blue nano coating is usually composed of titanium aluminum nitride (TiAlN) or chromium aluminum nitride (AlCrN). It can effectively improve the wear resistance and heat resistance of the tool, so that the tool can still remain sharp under high-speed cutting conditions.
Flat tool shape: Flat tools (end mills) are usually used for machining flat surfaces and are suitable for roughing and semi-finishing.
| | HRC65 Tungsten Carbide long neck Square End Mill |
| | |
| | |
| | |
| | |
| | |
| | General-purpose operation Slotting, Drilling, Profiling |
| | CNC (computer numeric controlled) tool and cutter grinder machines |
| | Water, water-soluble oil, and high-flashpoint oil |
| | Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze |
Why Choose This Cutter?
✔️ Excellent Performance: Designed for high-speed and high-precision machining
✔️ Long Tool Life: High-quality carbide + advanced coating ensures durability
✔️ Versatile Use: Suitable for roughing and finishing applications in hard materials

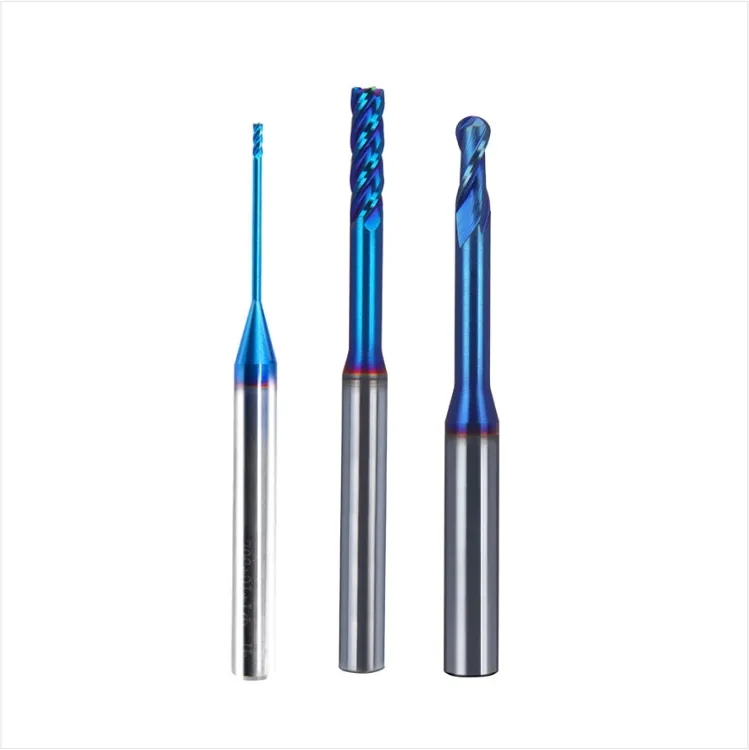

Products shows
Products Specification
The following Specification for your refer, We also provide the OEM or ODM service
| order number | cutting | Flute | Shank | Corner | A.0.L |
| d | l | D | R Corner | L |
| 1×3×4D×R0.2×50L×4F | 1 | 3 | 4 | R0.2 | 50 |
| 1×3×4D×R0.3×50L×4F | 1 | 3 | 4 | R0.3 | 50 |
| 1.5×3×4D×R0.2×50L×4F | 1.5 | 4 | 4 | R0.2 | 50 |
| 1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 |
| 2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 |
| 2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 |
| 2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 |
| 2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 |
| 3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 |
| 3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 |
| 3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 |
| 3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
| 4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 |
| 4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 |
| 4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 |
| 4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 |
| 5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 |
| 5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 |
| 6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 |
| 6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 |
| 8×20×8D×R0.5×60L×4F | 8 | 20 | 8 | R0.5 | 60 |
| 8×20×8D×R1.0×60L×4F | 8 | 20 | 8 | R1.0 | 60 |
| 8×20×8D×R1.5×60L×4F | 8 | 20 | 8 | R1.5 | 60 |
| 10×25×10D×R0.5×75L×4F | 10 | 25 | 10 | R0.5 | 75 |
| 10×25×10D×R1.0×75L×4F | 10 | 25 | 10 | R1.0 | 75 |
| 10×25×10D×R1.5×75L×4F | 10 | 25 | 10 | R1.5 | 75 |
| 10×25×10D×R2.0×75L×4F | 10 | 25 | 10 | R2.0 | 75 |
| 12×30×12D×R0.5×75L×4F | 12 | 30 | 12 | R0.5 | 75 |
| 12×30×12D×R1.0×75L×4F | 12 | 30 | 12 | R1.0 | 75 |
| 12×30×12D×R1.5×75L×4F | 12 | 30 | 12 | R1.5 | 75 |
| 12×30×12D×R2.0×75L×4F | 12 | 30 | 12 | R2.0 | 75 |
|
| 3×8×3D×R0.3×75L×4F | 3 | 8 | 3 | R0.3 | 75 |
| 3×8×3D×R0.5×75L×4F | 3 | 8 | 3 | R0.5 | 75 |
| 3×8×4D×R0.5×75L×4F | 3 | 8 | 4 | R0.5 | 75 |
| 3×8×4D×R1.0×75L×4F | 3 | 8 | 4 | R1.0 | 75 |
| 4×10×4D×R0.5×75L×4F | 4 | 10 | 4 | R0.5 | 75 |
| 4×10×4D×R1.0×75L×4F | 4 | 10 | 4 | R1.0 | 75 |
| 4×10×6D×R0.5×75L×4F | 4 | 10 | 6 | R0.5 | 75 |
| 4×10×6D×R1.0×75L×4F | 4 | 10 | 6 | R1.0 | 75 |
| 5×13×6D×R0.5×75L×4F | 5 | 13 | 6 | R0.5 | 75 |
| 5×13×6D×R1.0×75L×4F | 5 | 13 | 6 | R1.0 | 75 |
| 6×15×6D×R0.5×75L×4F | 6 | 15 | 6 | R0.5 | 75 |
| 6×15×6D×R1.0×75L×4F | 6 | 15 | 6 | R1.0 | 75 |
| 8×20×8D×R0.5×100L×4F | 8 | 20 | 8 | R0.5 | 100 |
| 8×20×8D×R1.0×100L×4F | 8 | 20 | 8 | R1.0 | 100 |
| 8×20×8D×R1.5×100L×4F | 8 | 20 | 8 | R1.5 | 100 |
| 10×25×10D×R0.5×100L×4F | 10 | 25 | 10 | R0.5 | 100 |
| 10×25×10D×R1.0×100L×4F | 10 | 25 | 10 | R1.0 | 100 |
| 10×25×10D×R1.5×100L×4F | 10 | 25 | 10 | R1.5 | 100 |
| 10×25×10D×R2.0×100L×4F | 10 | 25 | 10 | R2.0 | 100 |
| 12×30×12D×R0.5×100L×4F | 12 | 30 | 12 | R0.5 | 100 |
| 12×30×12D×R1.0×100L×4F | 12 | 30 | 12 | R1.0 | 100 |
| 12×30×12D×R1.5×100L×4F | 12 | 30 | 12 | R1.5 | 100 |
| 12×30×12D×R2.0×100L×4F | 12 | 30 | 12 | R2.0 | 100 |
Clients Good Feedback
"We've been using Hiboo Tool’s solid carbide square end mills for over a year, and they’ve greatly improved our machining efficiency and tool life. Highly recommend for any precision milling job."
- Alex, Russia
Why Choose Hiboo Tool's Square End Mills?
Precision Manufacturing: We use advanced CNC grinding technology to produce high-precision solid carbide square end mills that deliver consistent performance.
Durability and Wear Resistance: Our solid carbide end mills feature exceptional hardness (up to HRC 65) and resistance to wear, making them ideal for high-speed machining and extended tool life.
Wide Range of Sizes and Customization: We offer a wide range of standard sizes and can also create custom-made square end mills to suit your specific machining needs.
Competitive Pricing: As a leading square end mill manufacturer in China, we offer high-quality products at competitive prices with quick turnaround times.
Global Shipping: We ship worldwide, offering fast and reliable delivery to international customers, especially to markets in Russia, Mexico, Brazil, Italy, Malaysia, India, and South Africa.
Packaging & Shipping
Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
We cooperated with DHL , Fedex, UPS ,TNT, EMS and other express you wanted.
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.
Payment Term
T/T ,Western Union , MoneyGram,L/C
FAQ
1. Are you manufacturer? Do you have factory?
We are professional manufacturer,have more than20 years experience in this field.
2.what can you buy from us?
We specialized in producing and exporting Carbide End Mills, Drills, Inserts, cutter bodies,Reamers and more other customized cutting tools.
3. Is free shipping possible?
We don't offer free shipping service,but we will give you some discount if you buy large quantity products. We have cooperation Express Companies,can offer you the best price of shipping cost.
4. Can you send products to our Forwarder in China?
Yes,if you have Forwarder in China,we will glad to send products to him/her.
5.What cnc machines do you use?
More than 5 pcs ANCA ,Walter CNC grind machines ,and professional staff to make sure the good quality , with short delivery time .
6.Can we be your distributor?
Yes, of course . Welcome to contact us for this matter.
7.Can you product special cutting tools according to drwaing?
Yes We can. We will check the drwaing and reply you in 1 workday.
