How To Choose The Best End Mills For High-Temperature Alloys

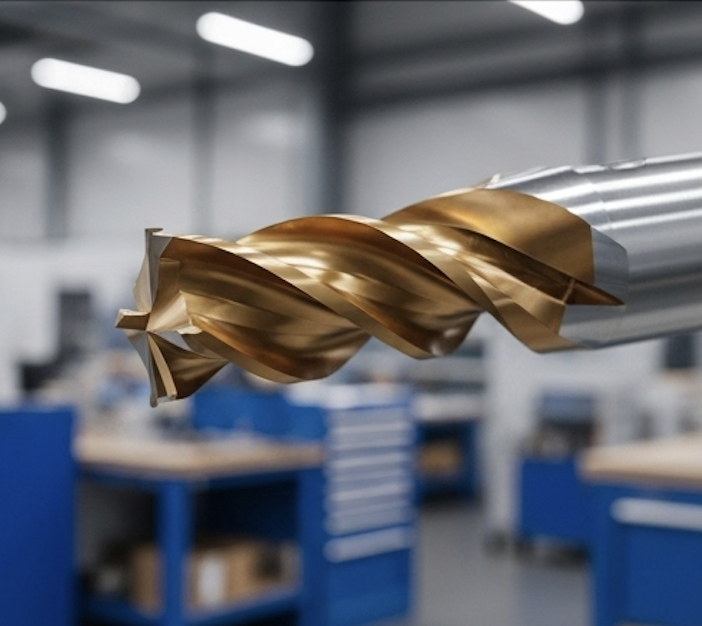

End Mills For High-Temperature Alloys

High-temperature alloys require high temperature alloy end mills designed for tough conditions. These tools must withstand heat, have a longer lifespan, and maintain precision. A larger edge radius can reduce tool stress by 27.8%, which helps extend tool life but increases cutting heat by 12.3%. Therefore, the shape of the tool is crucial. Type C flute shapes help keep cutting heat low and perform effectively. High temperature alloy end mills are robust and perform excellently, making them essential for machining these challenging materials.


Key Takeaways

  • Pick solid carbide end mills for strength and heat resistance.

  • Use cobalt or powdered metal tools for tough and flexible cutting.

  • Choose fewer flutes for soft metals and more for hard ones.

  • Add coatings like TiAlN or AlTiN to reduce heat and wear.

  • Adjust speeds: go slower for hard alloys and faster for soft ones.

  • Use coolants to control heat and make tools last longer.

  • Follow tool guides to match tools with the right metals.

  • Check and replace end mills often to keep cuts smooth.


Material Considerations for High Temperature Alloy End Mills

Why Tool Material Matters

Solid Carbide End Mills for Strength

When cutting high-temperature alloys, tools must handle tough conditions. Solid carbide end mills are a great option because they are very hard and strong. These tools resist damage, even under heat and pressure. Their stiffness allows for accurate cuts, making them perfect for materials like titanium and Inconel.

Studies show high-temperature alloys, used between 500°F and 2200°F, need tools that are both hard and heat-resistant. Solid carbide end mills stay strong during tough machining jobs. They also handle sudden temperature changes well, lowering the chance of tool failure and keeping performance steady.

Advantages of Cobalt and Powdered Metal Tools

Cobalt and powdered metal tools have special benefits for cutting high-temperature alloys. Cobalt tools are very tough, so they don’t chip or break easily during heavy work. Powdered metal tools mix the strengths of carbide and steel, offering both hardness and flexibility.

These tools work well when there’s vibration or interrupted cuts. For example, Kennametal’s Harvi series is great for cutting titanium and Inconel with little chipping. Choosing cobalt or powdered metal tools can make tools last longer and perform better in tough jobs.

Matching Tools to High-Temperature Alloys

Common Alloys (e.g., Titanium, Inconel)

High-temperature alloys like titanium, Inconel, and nickel-based superalloys are used in industries like aerospace and energy. These materials stay strong under heat but are hard to cut.

For example, Inconel stays solid at high temperatures but wears tools out quickly. Titanium is light and resists rust but creates a lot of heat when cut, which can harm tools. To handle these issues, you need end mills made for high-temperature alloys.

Challenges in Cutting These Materials

Cutting high-temperature alloys is tricky and needs the right tools. These materials create a lot of heat, which wears tools down and makes cutting harder. They also form rough chips that are hard to remove and increase cutting force.

Research shows picking the right tools improves results. For instance, tools with coatings like TiAlN last longer and work better when cutting Inconel 718 at high speeds. Changing tool shapes can also reduce heat and help remove chips more easily.

Aspect Key Findings
Cutting Force Lower force needed when machining with heat.
Specific Cutting Energy Less energy used to remove material in hot machining.
Tool Wear Tools wear out slower with hot machining methods.
Chip Formation Fewer rough chips and smoother cuts observed.
Machining Conditions Tests done at different speeds and feed rates with flame heating.

By knowing these challenges and choosing the right tools, you can cut high-temperature alloys efficiently and accurately.


Coating Options for High Temperature Alloy End Mills

Why Coatings Are Important

Fighting Heat and Reducing Wear

Cutting high-temperature alloys creates a lot of heat. Without protection, tools wear out fast, causing bad cuts and higher expenses. Coatings protect tools by resisting heat and reducing wear. For example, Titanium Aluminum Nitride (TiAlN) forms a shield at high heat, keeping tools stable and lasting longer.

Tests show coated tools work much better than uncoated ones. For instance, AlTiSiN coatings resist wear and stay strong up to 1000°C. This makes them great for cutting tough materials like titanium and nickel alloys. Using coated tools helps tools last longer and perform well under tough conditions.

Smoother Cuts with Less Friction

Coatings also make tools smoother, lowering friction during cutting. This means cleaner cuts and less heat. For example, Aluminum Titanium Nitride (AlTiN) coatings are very smooth, making them perfect for fast cutting and dry milling.

Better smoothness improves surface quality and stops chips from sticking. This is helpful when cutting sticky metals like Inconel. Coated tools make cutting easier and improve overall efficiency.

Common Coating Types

TiN (Titanium Nitride)

Titanium Nitride (TiN) is a popular coating. It makes tools harder and more durable. TiN-coated tools are good for general cutting but don’t handle very high heat well.

Coating Type Hardness Wear Resistance Heat Stability
TiN Higher Moderate Limited

TiCN (Titanium Carbonitride)

Titanium Carbonitride (TiCN) is harder and lasts longer than TiN. It works well for faster cutting but isn’t great for very hot jobs.

AlTiN (Aluminum Titanium Nitride)

Aluminum Titanium Nitride (AlTiN) is excellent for cutting in high heat. It’s harder than TiAlN and resists heat better. AlTiN-coated tools are ideal for cutting stainless steel, nickel alloys, and titanium.

  • Main Benefits:

    • Longer tool life for fast cutting.

    • Works well for dry milling and high-feed jobs.

Coating Type Hardness Level Heat Resistance Tool Life Boost Best Uses
Aluminum Titanium Nitride (AlTiN) Very High Excellent Long-lasting Cutting aircraft parts, nickel alloys, stainless steel, titanium alloys

TiAlN (Titanium Aluminum Nitride)

Titanium Aluminum Nitride (TiAlN) is another great choice for high-heat cutting. It creates a protective layer at high temperatures, reducing wear and improving heat resistance. TiAlN-coated tools are great for fast and dry cutting.

Choosing the right coating for your tools can save money, improve results, and make cutting high-temperature alloys easier.


Geometry and Design of High-Temperature Alloy End Mills

Flute Geometry

Number of Flutes for High-Temperature Alloys

The number of flutes affects how well an end mill works. Fewer flutes, like two or three, are good for soft metals. They help chips move out easily. For harder metals, five to seven flutes work better. They boost cutting speed and remove chips faster.

Flute Count Material Type Chip Removal Cutting Speed
2 Soft Metals Good Slower
3 Soft Metals Great Faster
5-7 Hard Metals Excellent Much Faster
Variable Depends on Job Changes Changes

Picking the right number of flutes helps tools last longer. It also makes cutting smoother and more efficient.

Chip Removal and Heat Control

Flute shapes help with chip removal and keeping tools cool. Special flute designs, like chip breakers, make cutting easier. They also use less energy. For example:

  • A steep helix angle clears chips faster and lowers cutting effort.

  • Chip-gash designs stop heat from building up and improve cutting.

Choosing end mills with smart flute designs gives cleaner cuts. It also helps tools stay cooler when cutting tough metals.

Helix Angle

Low vs. High Helix Angles

The helix angle changes how tools cut and handle chips. Low angles make tools stronger, which is good for heavy cutting. High angles make cutting smoother and improve the finish. Studies show a 50° helix angle lowers cutting effort and clears chips better.

For example, cutting titanium with a high helix angle reduces cutting effort by 34.71%. High angles are great for thin parts and jobs needing accuracy.

Cutting Force Effects

A bigger helix angle spreads cutting effort evenly across the tool. This lowers stress on the cutting edges and helps tools last longer. Research shows a 55° helix angle improves surface quality and reduces cutting effort. Picking the right helix angle makes cutting easier and tools work better.

Tool Dimensions

Diameter and Length Choices

The size of an end mill affects how it cuts. Bigger diameters make tools steadier and stop bending during cutting. Shorter tools are stronger and work well at high speeds.

For tough metals, using the right size tool improves accuracy. Short tools with big diameters cut better and stay cooler.

Corner Radius vs. Chamfered Edges

Corner radius and chamfered edges are used for different jobs. A corner radius spreads cutting effort evenly, making tools last longer. Chamfered edges are better for sharp corners and detailed work.

Studies show tools with a corner radius improve surface finish and lower cutting effort. Picking the right edge design makes cutting smoother and tools more efficient.


Cutting Parameters for High-Temperature Alloy End Mills

Cutting Speed and Feed Rate

Best Speeds for High-Temperature Alloys

Picking the right speed is very important. Hard metals like Inconel need slower speeds to protect tools. Softer metals like titanium can handle faster speeds. Tool size and spindle speed must match to avoid shaking.

To set the best speed:

  • Change speeds based on how hard the metal is.

  • Check tools often to keep cuts smooth and accurate.

  • Follow speed tips from the tool maker.

For example, tests show speeds of 58–174 m/min work well. These speeds were tested on Ti–6Al–4V and Inconel 718 using coated carbide tools. Results proved these speeds are good for cutting tough metals.

Test Details Information
Metals Used Ti–6Al–4V, Inconel 718
Speed Range 58–174 m/min
Feed Levels 4 different settings
Tool Type Coated carbide tools
Number of Tests 40 cutting experiments

Changing Feed Rates for Better Results

Feed rates decide how fast material is removed. Faster feed rates make better chips and reduce tool damage. Slower feed rates can cause rough edges and stuck material.

Tips for setting feed rates:

  • Keep chip size small to avoid tool overload.

  • Use slower feeds for deep cuts to keep surfaces smooth.

  • Match feed rates to your machine’s strength and limits.

Studies show a feed per tooth of 5.00 μm works best. This setting makes better chips and smoother surfaces. At 50.30 m/min speed, tool wear decreased as feed rate increased. This shows how important feed rate is.

Coolant Usage

Why Coolants Are Important

Coolants help control heat during cutting. Without them, tools wear out faster, and cuts look bad. Coolants lower heat, make tools last longer, and improve cutting.

For example, hybrid MQL-cryogenic cooling makes tools last 50% longer than high-pressure cooling (HPC). Internal cooling also reduces tool wear and cutting force.

Study Name Key Findings Cooling Type Benefits
Bermingham et al. Better cutting of Ti–6Al–4V HPC Lowered cutting force by 15%, tool life up 15–64%
Shokrani et al. Tools lasted 30 times longer Hybrid MQL-cryogenic Tool life 50% better than HPC
Zhang et al. Less tool wear and better cutting Internal Cooling Improved with cooled air

Coolant Types and How to Use Them

Different coolants work for different jobs. HPC is great for tough metals. Hybrid cooling, like MQL-cryogenic, works even better. Internal cooling sends coolant straight to the cutting area.

When picking a coolant, think about the metal and cutting needs. For high-temperature alloy tools, advanced cooling methods improve tool life and cutting results.


Manufacturer Guidelines for High Temperature Alloy End Mills

Why Manufacturer Recommendations Matter

Matching Tools to Specific Alloys

Manufacturers create high temperature alloy end mills for specific materials. Each alloy, like titanium or Inconel, has unique traits that affect cutting. Using the wrong tool can cause quick wear, bad finishes, or tool damage. Following manufacturer advice ensures the tool fits the alloy's needs. This lowers mistakes and improves cutting success.

For instance, carbide tools are great for nickel alloys because they are hard and resist heat. Ceramic tools work better for fast cutting of superalloys since they handle high heat. Manufacturers share these tips to help you pick the right tool for your job.

Extending Tool Life and Efficiency

Using manufacturer advice also makes tools last longer and work better. Correct tools reduce downtime and save money. A study compared cutting inserts and found carbide inserts lasted 29 minutes, beating SiAlON and CBN inserts, which lasted 28 and 26 minutes.

Cutting Insert Material Tool Life (min)
Carbide 29
SiAlON 28
CBN 26

This shows why using tools as directed is important. Following guidelines helps you set the right speeds, feeds, and cooling, giving better results and fewer tool changes.

Highlighting Hiboo Tools

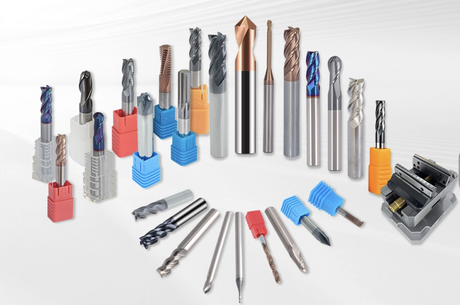

Overview of Hiboo Tools' Products

Hiboo Tools makes top-quality tools for cutting high-temperature alloys. Their end mills are built for tough materials like titanium and nickel alloys. These tools have special coatings, smart designs, and strong materials to handle extreme conditions.

Hiboo Tools also offers different flute styles and helix angles for various jobs. Whether you need tools for rough cuts or smooth finishes, their products combine accuracy and strength. This makes Hiboo Tools a trusted choice for tough machining tasks.

Why Choose Hiboo Tools for High-Temperature Alloys

Hiboo Tools focuses on quality and new ideas. Their end mills cut better and last longer, even in hard jobs. Cutting tough alloys often raises tool costs due to heat and wear. Hiboo Tools solves this with coatings like AlTiN, which resist heat and extend tool life.

Their tools also make cutting easier. For example, nickel alloys are easier to cut at high heat, and Hiboo's ceramic-coated tools perform well here. Cooling systems, like cryogenic or hybrid methods, improve results further. Choosing Hiboo Tools gives you advanced solutions that boost productivity and cut costs.

Tip: Always check Hiboo Tools' guides to pick the best end mill for your alloy and cutting needs.


Picking the right high temperature alloy end mills is very important. These tools need to handle tough metals like titanium and Inconel. To choose well, think about material, coatings, shape, and cutting settings.

  • Why Choosing Right Tools Helps:

    • Carbide end mills stay sharp and strong in high heat.

    • Coatings like TiAlN and AlTiN stop heat damage and cut smoothly.

    • Good cutting settings and cooling keep tools from wearing out fast.

Study Details Main Results
Heat modeling in cutting Helps pick tools by showing heat levels.
Heat control importance Extends tool life and keeps cuts accurate.

Hiboo Tools makes great tools for cutting high-temperature alloys. Their smart designs and coatings make cutting easier and more reliable for machinists.

Tip: Check tools often and replace them on time to avoid problems and keep cutting smooth.


FAQ

What are high-temperature alloys, and why are they hard to machine?

High-temperature alloys, like titanium and Inconel, are very strong. They resist heat and wear, making them tough to cut. Special tools are needed to handle the heat and pressure during machining.

How do coatings improve end mill performance?

Coatings help tools last longer by reducing heat and wear. For example, AlTiN and TiAlN coatings handle high heat and cut better. Coated tools also make smoother cuts by lowering friction.

How do I choose the right flute count for my end mill?

Use 2–3 flutes for soft metals to remove chips easily. For hard metals like titanium, use 5–7 flutes. More flutes give faster cutting and better finishes but may trap chips.

Can I use the same end mill for different high-temperature alloys?

No, each alloy behaves differently. Titanium creates heat, while Inconel wears tools fast. Use end mills made for specific alloys to get better results and longer tool life.

What cutting speed works best for high-temperature alloys?

Cutting speed depends on the material. Use medium speeds for titanium. For Inconel, slower speeds reduce tool wear. Always check the tool maker’s speed advice for the best results.

Do I need coolant when machining high-temperature alloys?

Yes, coolant lowers heat and tool damage. Advanced cooling, like hybrid MQL-cryogenic or internal cooling, works best. Coolants help tools last longer and improve cutting.

How often should I replace my end mills?

Replace end mills if edges are dull or cuts look rough. Check tools often to avoid failure and keep machining smooth.

Why should I consider Hiboo Tools for high-temperature alloys?

Hiboo Tools makes strong, high-quality end mills with special coatings. Their tools work well with tough metals like titanium and Inconel, even in extreme conditions.

Tip: Always pick the right end mill for your material and cutting job.
