Understanding End Mills for Steel Machining Applications

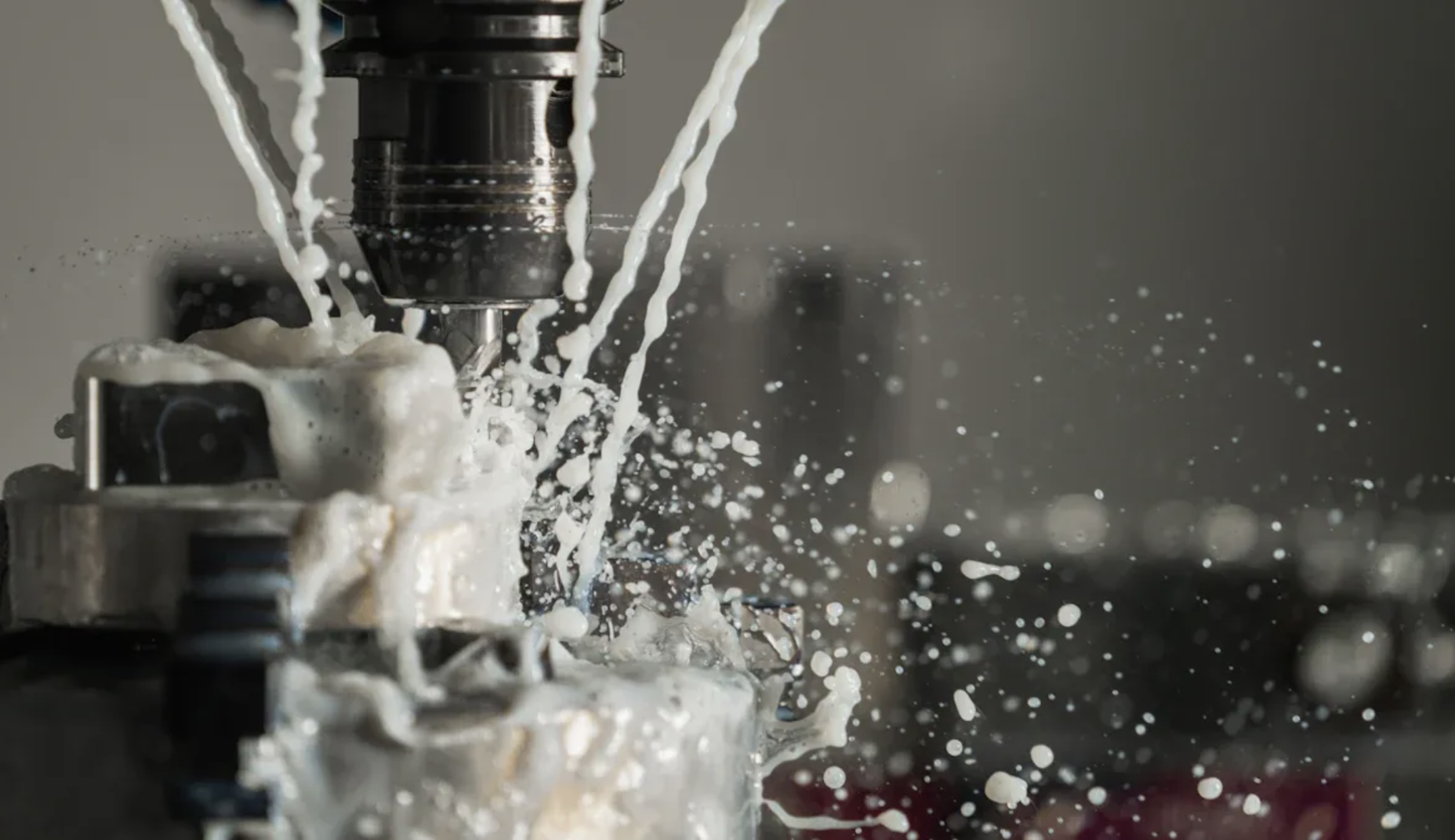

Image Source: pexels

End mills for steel are important tools for cutting and shaping this material. They can carve and shape steel with great accuracy. Unlike regular drill bits, end mills for steel can move sideways, making them useful for detailed designs and fine work. They also save time by reducing extra finishing steps.

End mills for steel made from strong materials like carbide work better. Carbide keeps the tools sharp even during tough cutting jobs. It also allows faster cutting speeds, which helps when working with hard steel. These tools reduce vibrations, making surfaces smoother and less noisy.

Picking the right end mills for steel helps make work faster and products better.

Key Takeaways

• End mills for steel can cut in different directions. This makes them great for detailed designs and fewer finishing steps.

• Carbide end mills work best for steel because they last long. They resist heat and stay sharp for a long time.

• Picking the right shape and number of flutes is important. Flat end mills make straight cuts, and ball-nose ones make curves.

• Setting up the machine properly helps the tool last longer. Correct feed rate and speed also improve cutting.

• Coatings like TiAlN make tools work better and last longer. They are especially helpful for hard cutting jobs.

What Are End Mills for Steel?

Definition and Primary Function

End mills for steel are tools made to cut and shape steel. Unlike regular drill bits, they can cut sideways and in other directions. This makes them great for detailed designs, grooves, and shapes in steel parts. Their main job is to remove steel quickly while staying accurate. This helps make sure the finished product matches exact plans.

End mills have sharp edges and different numbers of flutes to handle steel's hardness. Some, like Gradient Helix Edge (GHE) end mills, use special angles to cut better and reduce force. But figuring out cutting forces for these tools can be tricky because of their design. Experts use advanced methods to measure forces like tangential, radial, and axial to improve how they work.

Key Differences Between End Mills and Other Cutting Tools

End mills are very different from tools like drill bits or lathe tools. Drill bits only cut straight down, but end mills can cut sideways and in many directions. This lets you do jobs like slotting, shaping, and contouring all at once. End mills also have more flutes, which help remove material faster and make surfaces smoother.

Compared to ceramic cutting tools, end mills for steel are more flexible. Research shows carbide-coated end mills work better than uncoated high-speed steel (HSS) cutters. For example, carbide end mills last longer and cut faster when working on 304 stainless steel. This makes them the top choice for precise jobs.

Applications of End Mills in Steel Machining

End mills for steel are used in many industries. In aerospace, they make complex parts like engine mounts. Car makers use them to create exact engine pieces and transmission parts. Electronics companies use them to design printed circuit boards (PCBs) and cases. Medical companies rely on them for implants and surgical tools. Even in prototyping, end mills help test and improve designs with accuracy.

These tools have many advantages. They can cut, shape, and finish steel without needing extra tools. They can achieve very tight tolerances, as small as ±0.002 mm. Their multi-flute design allows deeper cuts, saving time and boosting efficiency.

Tip: Choose end mills based on the job and steel hardness. This helps them work better and last longer.

Types of End Mills for Steel

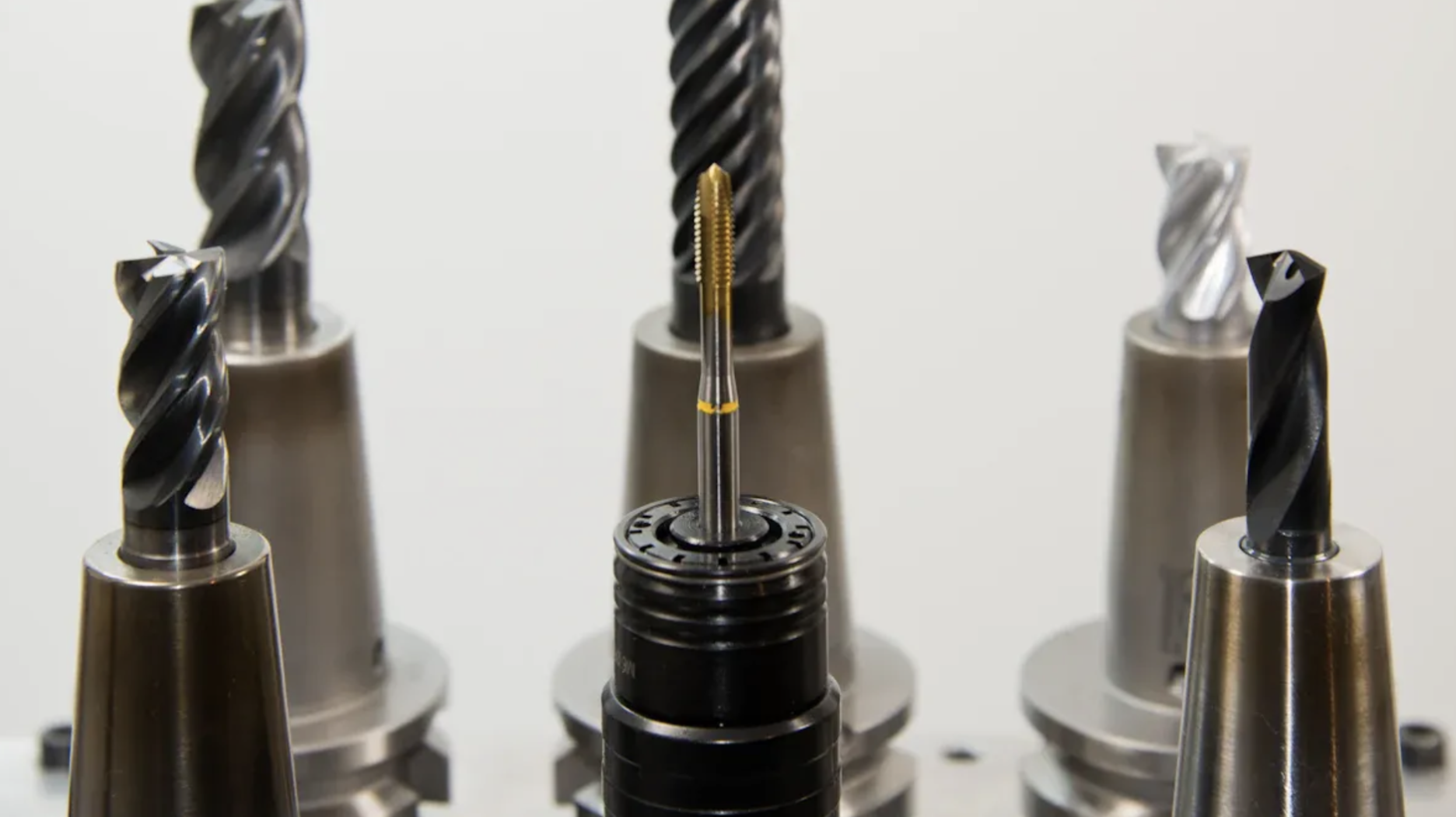

Image Source: pexels

Shape-based Types: Flat, Ball-Nose, and Corner Radius

End mills have different shapes for different jobs. Flat end mills are common and make sharp edges and flat surfaces. They are great for cutting slots and pockets. Ball-nose end mills have rounded tips. These are used for smooth curves and 3D shapes. Corner radius end mills combine sharp edges with slight curves. Their rounded corners last longer and wear out less.

Tip: Use ball-nose end mills for curves and flat ones for straight cuts. This helps tools last longer and work better.

Flute Count and Its Impact on Steel Machining

The number of flutes changes how an end mill works. Two-flute end mills are good for soft materials. They leave space for chips to escape and avoid clogs. Four-flute end mills are better for steel. They are stronger and make smoother surfaces. More flutes give a better finish but make chip removal harder. These are best for finishing, not rough cutting.

• Fewer flutes help with chip removal in soft materials.

• Two-flute end mills are good for soft materials like plastic.

• Four-flute end mills are strong and work well on steel.

• More flutes make smoother finishes but clog easier.

Material-based Types: Carbide, High-Speed Steel, and Cobalt

The material of an end mill affects how it cuts and lasts. Carbide end mills are the best for steel. They stay sharp and handle heat well. High-speed steel (HSS) end mills cost less but wear out faster. Cobalt end mills are tougher than HSS and work well in high heat.

End Mill Type

Material Tested

Performance Metric

Four-flute	AISI 4340 steel	Best mix of tool life and smooth finish
Two-flute	Acrylic	Fewer chips sticking and clearer surface

Picking the right material makes tools last longer and work better. For steel, carbide end mills are usually the top choice.

Materials and Coatings for End Mills in Steel Machining

Common Materials Used in End Mills for Steel

The material of an end mill affects how well it cuts steel. Three common materials are high-speed steel (HSS), cobalt, and solid carbide. Each works best for certain tasks.

Material

Wear Resistance

Toughness

Heat Resistance

Performance Characteristics

High-Speed Steel	Good	Moderate	Moderate	Great for general milling
Cobalt (M-42)	Better	High	High	Cuts faster than HSS
Solid Carbide	Excellent	High	Excellent	Cuts 2-3 times faster than HSS

Solid carbide is the best for cutting hard steel. It resists wear and heat very well. Cobalt is tough and handles heat, while HSS costs less and works for easier jobs.

Popular Coatings Like TiN, TiAlN, and DLC

Coatings make end mills last longer and cut better. Popular coatings include Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), and Diamond-Like Carbon (DLC).

Coating Type

Performance Metric

Findings

TiN	Tool Life	Makes tools last longer
TiAlN	Flank Wear	Reduces wear in tough jobs
DLC	Cutting Capability	Cuts better on nickel alloys

TiN adds basic protection. TiAlN is harder and resists wear better. DLC lowers friction and improves cutting, especially on tricky materials.

How Materials and Coatings Enhance Durability and Performance

Good materials and coatings help end mills last longer and work better. Coatings like TiAlN and DLC reduce friction and heat, which lowers tool wear. Technologies like HiPIMS and Baliq S3p improve coatings further. HiPIMS makes coatings tougher, while Baliq S3p creates smoother surfaces to cut down heat.

Tip: Pick coatings based on your job. Use TiAlN for fast cutting. Choose DLC for smooth finishes.

The right material and coating make tools last longer, cut faster, and give better results.

How to Use End Mills for Steel Machining

Machine Setup and Picking the Right End Mill

Setting up your machine properly is very important. Make sure the machine is aligned and calibrated to avoid mistakes. Check the tool's shape, like the edge and flute design. These details affect how well the tool cuts and lasts. Studies show that good setups reduce wear and improve efficiency.

When choosing an end mill, think about the material and task. For steel, carbide end mills are the best because they are strong and resist heat. Follow these tips to choose wisely:

Factor

What to Know

Material	Hard steel needs tough tools like carbide end mills.
Cutting Diameter	Small diameters are for details; large ones for rough cuts.
Flute Count	Fewer flutes remove material faster; more flutes make smoother finishes.
Coatings	Coatings like titanium nitride make tools last longer.
Cutting Speed & Feed Rate	Use correct settings to protect the tool and material.

By setting up your machine well and picking the right tool, you can get better results and make your tools last longer.

Tip: Always check your machine and tool settings before starting. This simple step can save time and prevent errors.

Important Settings: Feed Rate, Speed, and Cut Depth

Feed rate, speed, and cut depth are key for good performance. Adjust these settings to remove material efficiently and protect the tool. Here are some suggested values for steel:

Setting

Recommended Value

Cutting Speed	Rough cuts: 120 m/min, Finish cuts: 210 m/min
Feed Rate	Rough cuts: 0.1–0.3 mm/tooth, Finish cuts: 0.033–0.3 mm/tooth
Depth of Cut	No more than half the cutting edge length

For rough cuts, use higher speeds and feed rates to work faster. For finishing, lower these settings for a smooth surface. Keep the cut depth shallow to avoid overloading the tool.

Note: Watch the machine while it works. If it gets too hot or vibrates, adjust the speed or feed rate.

Tips for Accuracy and Tool Life

To get precise results and make tools last longer, follow these tips:

Tip

Why It Helps

Use Cutting Fluids	Fluids cool and lubricate the tool, reducing heat and wear.
Keep the Machine Stable	A stable setup reduces vibrations and protects the tool.
Control Cutting Speed	Too much speed causes heat and shortens tool life.
Match the Steel Type	Adjust your method based on how hard or soft the steel is.

Modern machines can track data like tool wear and cycle times. Use this information to improve your process and make smarter choices.

Tip: Check your tools often and replace them if worn. Worn tools can ruin precision and slow down work.

For top-quality carbide end mills and coatings, visit Hiboo Tools. They offer tools designed for excellent steel machining performance.

Benefits and Challenges of End Mills for Steel

Advantages: Precision, Versatility, and Efficiency

End mills for steel have many benefits in machining work. They are very precise, helping you make detailed designs and exact sizes. These tools can do different jobs, like cutting slots or shaping 3D curves. This means you don’t need many tools, saving time and effort.

They are also very efficient. End mills cut steel quickly, reducing work time and energy use. They create smooth surfaces, so extra polishing isn’t needed. For example:

• They make surfaces smooth, skipping extra finishing steps.

• They work with many materials, making them useful for various tasks.

• They help keep sizes accurate for consistent results.

Picking the right tool can save money and improve your work speed.

Challenges: Heat Generation, Tool Wear, and Chip Evacuation

Even with their benefits, end mills have some challenges when cutting steel. Heat is a big problem. Cutting creates high temperatures, especially at fast speeds. This heat can weaken the tool and make it less effective. Experts say it’s hard to predict heat because of how tools and steel touch during cutting.

Tool wear is another issue. Heat and friction make tools wear out faster, shortening their life. Studies show that deeper cuts make tools hotter, which wears them out more quickly.

Removing chips is also tricky. Steel chips can block the tool’s flutes, causing bad cuts and rough surfaces. Knowing how heat affects the tool and chips can help improve cutting.

Solutions to Common Challenges in Steel Machining

You can solve these problems with smart strategies. Coated tools, like those with Nano-TiAlN, resist heat and last longer. Setting up machines correctly and using the right cutting settings also helps. For example:

• Use a cutting speed of 428.46 rpm and feed rate of 0.285 mm/tooth.

• Keep the cut depth at 0.208 mm to lower heat and stress.

Coolants or lubricants can reduce heat and clear chips better. Modern methods like Minimum Quantity Lubrication (MQL) are eco-friendly and save energy.

For durable and precise end mills, check out Hiboo Tools. Their tools are made to handle tough steel machining jobs.

End mills for steel are precise, flexible, and efficient tools. They work well with hard materials, make smooth surfaces, and meet tight size limits. Picking the right end mill and setting up machines correctly improves results and tool life.

Performance Indicator

Metric Value

Surface Roughness (Ra)	1.101 µm
Cutting Forces (Fc)	781 N
Tool Wear (TW)	151 µm
Material Removal Rate (MRR)	1540 mm³/s
Optimal Spindle Speed	1200 rpm
Optimal Feed Rate	320 mm/min
Optimal Depth of Cut	0.6 mm
Optimal Width of Cut	8 mm
Optimal Coolant Flow Rate	100 mL/h

Tip: Match the tool material and coating to the steel type. Adjust feed rate and spindle speed for better efficiency and longer tool life. Check tools often for wear to keep cuts accurate and avoid mistakes.

By using these tips, you can work faster and get great results when machining steel.

FAQ

What is the best material for end mills when machining steel?

Carbide is the best material for machining steel. It stays sharp, resists heat, and handles tough cutting tasks. High-speed steel (HSS) and cobalt are also options, but carbide offers superior performance and durability.

Tip: Use carbide end mills for hard steel to achieve better results.

How do you choose the right end mill for a job?

Consider the steel type, tool material, flute count, and coating. For hard steel, use carbide end mills with TiAlN coating. Match the flute count to the task—fewer flutes for roughing, more for finishing.

Note: Always check the cutting diameter and speed settings for precision.

Why do end mills have different flute counts?

Flute count affects chip removal and surface finish. Fewer flutes (2-3) allow better chip evacuation, ideal for rough cuts. More flutes (4-6) create smoother finishes but may clog in deep cuts.

Flute Count

Best Use

2-3	Roughing
4-6	Finishing

How can you reduce tool wear during steel machining?

Use proper cutting speeds, feed rates, and coolants. Coated tools, like those with TiAlN, resist heat and wear. Avoid overloading the tool by keeping the depth of cut shallow.

Tip: Regularly inspect tools for wear to maintain accuracy and efficiency.

What coatings work best for end mills in steel machining?

TiAlN and DLC coatings are excellent for steel. TiAlN resists heat and wear, while DLC reduces friction for smoother cuts. These coatings extend tool life and improve performance.

Note: Choose coatings based on the steel type and machining speed.
