How to Select Carbide Cutting Tools for Mold Manufacturing

Mold manufacturing asks cutting tools to do five distinct jobs across a single workpiece: bulk stock removal at the roughing stage, controlled stock preparation during semi-finishing, surface contour generation in 3D cavity finishing, reach-restricted cuts in deep ribs and pockets, and sub-millimeter detail work on parting lines and gate geometry. Each job has its own controlling variables, and the tool that performs well in one stage is usually the wrong tool for the next.

This guide maps each machining stage to the solid carbide tool family that handles it, then covers the three cross-cutting decisions that determine final specification: mold steel hardness, coating, and geometry parameters (flute count, diameter, machine rigidity). The structure follows the mold machining sequence from the first roughing pass to the final product section, so it functions as a selection reference for engineers and procurement working with any common mold steel grade.

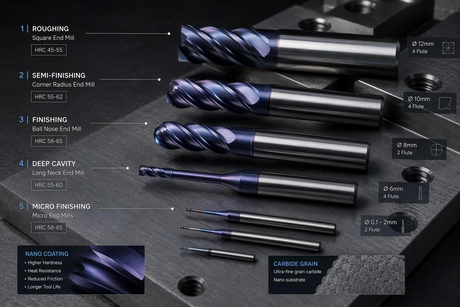

The Mold Machining Sequence and Its Tool Families

Before selecting any specific tool, locate the current operation in the machining sequence. Most injection molds, die casting molds, and precision dies pass through the same five-stage workflow:

Two rules govern almost every tool choice in this sequence. First, use the largest diameter that still fits the feature. Larger diameters increase core stiffness, raise feed-per-tooth capability, and reduce the number of passes needed. Second, keep overhang as short as the cavity geometry allows. For every doubling of tool stickout beyond the holder, deflection increases roughly eightfold under the same cutting load. Both rules compound in importance as the mold steel hardness rises.

Roughing: Square End Mill

The roughing stage removes the bulk of the steel. Cycle time and chip volume are the controlling variables here; surface finish is not. The standard roughing tool for mold steel is a 4-flute solid carbide square end mill with chip-breaker or high-helix geometry matched to short-chip steel materials.

Cutting strategy and stock allowance

For pre-hardened mold steels in the HRC 30–55 range, trochoidal (dynamic) milling paths with radial engagement (ae) at 10–15% of tool diameter and higher axial depth per pass protect the cutting edge better than conventional slot milling. A constant arc-of-contact approach prevents the sudden load spikes that cause edge chipping at pocket corners in harder grades.

Per Sandvik Coromant's mold making application guide, stock allowance after roughing should be 0.5–1.0 mm on cavity walls for standard mold steels and 0.8–1.5 mm when machining at HRC 55 and above, where semi-finishing needs more material to stabilize the cavity geometry before finish passes begin.

Square end mill selection parameters

Diameter: match to the largest pocket or cavity footprint, then go as large as the feature allows. For general mold roughing, 8–20 mm diameters cover most applications. A larger-diameter tool carries more torque capacity and core cross-section, both of which limit deflection under high chip loads.

Flute count: 4 flutes are standard for mold steel. Steel generates short chips, so the additional flute count supports higher feed-per-tooth engagement without chip packing. 6-flute roughing variants apply when semi-roughing passes at lighter chip loads are the goal.

Coating: AlTiN or TiAlN class coatings are standard for steel roughing. Both maintain oxidation resistance above 800°C and handle the thermal cycling of interrupted cuts through pocket corners.

Hiboo Tools' square end mills cover HRC50 through HRC65 grades with standard and OEM geometries suitable for conventional and trochoidal roughing strategies in common mold steels.

Semi-Finishing: Corner Radius End Mill

Semi-finishing brings cavity walls to a controlled stock allowance of 0.1–0.4 mm and shapes 3D surfaces for the finishing pass. The corner radius end mill (bull nose) is the standard tool for this stage. The radius distributes cutting load across a fillet instead of concentrating it at a sharp corner, which reduces edge wear rate in hardened steels significantly relative to a square end mill running at equivalent feed rates.

Why corner radius outperforms square at this stage

The corner radius geometry leaves a scallop profile that the ball nose finishing pass removes cleanly. A square end mill at the same stage leaves a flat-bottomed step at the wall-floor transition, which the ball nose cannot eliminate without an additional CAM pass. Corner radius also handles the chip mechanics of interrupted cuts better in hard steel. The fillet distributes entry shock over a larger contact arc.

In H13 at HRC 44–50, field application data published in MoldMaking Technology indicates corner radius tools extend tool life by roughly 30–50% compared with square end mills at the same feed per tooth on interrupted mold cavity walls.

Semi-finishing selection variables

Corner radius vs. hardness: larger radii are more robust in harder steels. For H13 at HRC 44–50, radii of R0.5–R2.0 mm are typical. For P20 at HRC 30–36, the minimum internal radius of the cavity feature usually constrains the selection before edge strength does.

Work hardening: stainless-type mold steels (S136, 420 equivalents) can work harden on interrupted cuts and tool re-entry. AlCrN coatings handle these steels better than standard TiAlN because AlCrN maintains its hardness at higher temperatures and oxidizes at around 1100°C compared with roughly 800°C for TiAlN, per Kennametal's grades and coatings guide for solid carbide end mills.

Stock control discipline: the goal of semi-finishing is uniform stock. Leaving 0.2 mm in one zone and 0.5 mm in another forces the ball nose finishing pass to work at variable chip loads, which degrades surface finish and accelerates uneven flank wear. Verify stock uniformity in CAM simulation before cutting.

Hiboo Tools' HRC63 corner radius end mills are designed for semi-finishing and finishing in hardened tool steel in the HRC 58–65 range, with nano coating for low-friction, low-adhesion chip flow on polishing-grade mold steels.

Cavity and 3D Surface Finishing: Ball Nose End Mill

The ball nose end mill is the primary finishing tool for curved mold cavities, parting surfaces, and three-dimensional profiles. Its hemispherical tip traces contoured surfaces with consistent chip engagement across the cutting arc, provided stepover and depth are tightly controlled.

Surface finish fundamentals: scallop height and stepover

Surface finish in 3D milling is driven more by scallop height than by cutting speed. Scallop height (the ridges left between adjacent passes) is a function of ball nose radius and radial stepover. A smaller stepover produces lower Ra at the cost of more toolpaths and longer cycle time.

As documented in Robb Jack Corporation's mold tooling application guide, the best approach to ball nose cavity finishing is to rough out at constant-Z passes first, then apply scallop-based (equidistant) finishing paths. For most injection mold cavities targeting Ra 0.4–0.8 μm, a radial stepover of 2–5% of ball diameter is practical. For mirror-polish molds targeting Ra below 0.2 μm, stepovers of 1–2% are used, followed by manual polishing.

Toolpath strategy by surface inclination

Z-level (constant-Z) finishing performs better on steep walls above 45° inclination. Scallop-based paths perform better on shallow curves and base radii, where Z-level paths leave coarser scallops due to the geometry of adjacent passes. For cavities with both steep and shallow zones, the CAM-standard approach combines Z-level on walls with scallop paths on floors and transition radii.

Variable helix end mills reduce chatter at the long overhangs common in deep mold cavities. The unequal flute spacing breaks up the periodic cutting forces that cause resonance on thin walls or extended tools.

Ball nose selection by mold hardness

For hard milling above HRC 55, 2-flute ball nose tools in ultra-fine-grain carbide are standard. The 2-flute geometry opens chip space and reduces heat buildup in narrow scallops, critical when spindle speed is high and radial engagement is small. At HRC 63–65, nano coatings (multi-layer PVD) provide better wear resistance than single-layer AlTiN because they reduce friction at the tool-workpiece interface during light, high-speed finishing passes.

Hiboo Tools' ball nose end mills cover HRC48 through HRC65 grades, with 2-flute and 4-flute options across diameters from R0.5 mm to R6.0 mm for cavity finishing and 3D contour work.

Deep Cavity Machining: Long Neck End Mill

Deep ribs, narrow slots, and under-parting-line pockets require a tool with enough reach to access the feature without the shank colliding with workpiece walls. The long neck end mill (reduced-shank or long-reach end mill) provides this reach while retaining a larger shank diameter at the holder for rigidity.

The deflection problem at extended reach

As overhang increases, deflection increases at the cube of the length-to-diameter ratio. A tool at 4×D deflects roughly 8× more than the same tool at 2×D under the same cutting load. Per Sandvik Coromant's profile milling application data, beyond 4×D overhang, vibration, chatter marks on cavity walls, and premature edge wear become the dominant failure modes rather than coating wear or material hardness.

For pockets deeper than 3×D, switching to a long neck or reduced-shank end mill is the standard threshold in most mold application guides, including the ISCAR Die and Mold user guide.

Selection rules for long-neck geometry

Tapered neck vs. straight neck: A tapered neck (narrowing from the shank toward the cutting end) carries 30–50% higher bending stiffness than a straight long-reach tool at equivalent overhang, because the larger cross-section near the holder handles the bending moment where it is greatest. For overhangs in the 10–20×D range, a taper-neck design is the practical choice when machine rigidity allows, per application data published by JYC Carbide in their long-reach end mill application guide.

Neck diameter: choose the narrowest neck that clears the cavity walls. Unnecessary neck reduction beyond what clearance requires multiplies deflection directly.

Feed adjustments: reduce feed per tooth by 20–30% when overhang exceeds 5×D. At 10×D and above, reduce by 40–50% and verify in a test cut before committing to production parameters.

Holder specification: shrink-fit or hydraulic holders with runout below 0.003 mm total indicator reading at the cutting edge are necessary when overhang exceeds 6×D. Standard ER collets introduce sufficient runout at these extensions to amplify chatter in hardened mold steel.

Hiboo Tools' long neck ball nose end mills use a 2-flute geometry for chip evacuation in deep narrow cavities, with an extended neck design sized for reach-critical mold features at HRC58 and above.

Fine Detail Machining: Micro End Mill

Features below 3 mm in cutting diameter (parting line radii, gate geometry, ejector-pin pockets, narrow ribs, logo engraving) require micro end mills. The industry's common definition is any end mill with a cutting diameter under 3 mm (1/8 inch), with ultra-fine tools extending to 0.1 mm and smaller for specialized mold insert work.

What changes at micro scale

Runout dominates failure at small diameters. At 1 mm cutting diameter, a runout of 0.003 mm shifts the effective chip load by 0.6% of tool diameter per flute. That is enough to cause uneven flank wear and brittle fracture within minutes when holder accuracy is insufficient. Runout targets for production micro milling are typically 0.003 mm or below, total indicator reading at the cutting edge, per specifications published by NS Tool Co. for their MicroEdge series and confirmed in supplier qualification guides on Alibaba's B2B sourcing platform.

Spindle and holder requirements: micro milling demands high-speed spindles (15,000–30,000 RPM and above for tools under 1 mm cutting diameter) and precision holders. HSK or shrink-fit holders are preferred. Standard ER collets can introduce sufficient runout to snap tools under 0.5 mm within the first cutting cycle.

Feed per tooth: for a 1 mm end mill in mold steel at HRC 48–55, feed per tooth is typically 0.003–0.008 mm depending on tool geometry and workpiece hardness, per feed guidance published by Harvey Performance Company in their miniature end mill machining guide. Running too low a feed causes rubbing rather than cutting, generating heat without chip formation.

Flute count: 2-flute geometry is nearly universal for micro end mills. At diameters below 3 mm, chip space is the limiting factor. 4-flute micro tools are available for specific semi-finishing applications but carry higher chip-packing risk in deep slots.

Pro Tip: At diameters below 0.5 mm, even a slight tool deflection or an acceleration ramp that is too steep at spindle start can cause breakage before the first productive cut completes. Use a slow spindle ramp-up and verify chip color and sound on the first pass at reduced feed.

Hiboo Tools' HRC55 micro end mills are 2-flute tools with TiAlN coating covering mold steel, alloy steel, copper, and stainless in the sub-3 mm cutting diameter range.

Tool Grade Selection by Mold Steel Hardness

Mold steels span a wide hardness range depending on mold type and heat treatment stage. The hardness at the time of machining drives carbide grade toughness requirements and minimum coating temperature resistance.

HRC55: Entry into hard milling. Micro-grain carbide grades with AlTiN or nano coatings are standard. Conservative chip load on tool entry; trochoidal paths protect the edge on the first passes.

HRC60: Coating selection becomes a performance differentiator. Single-layer TiAlN still functions for light finishing, but multi-layer nano coatings extend tool life by reducing thermal fatigue at the coating-carbide interface during the rapid thermal cycling of hard milling.

HRC63: Most semi-finishing and finishing runs with fine-grain 2-flute ball nose tools. Spindle rigidity and runout control are as critical as coating selection. Radial engagement (ae) typically stays below 5% of diameter to limit heat at the flute face.

HRC65: The upper limit for solid carbide hard milling. Ultra-fine-grain carbide with nano or AlTiSiN coatings and low-rake geometry to prevent adhesive wear. Finishing depth of cut is typically 0.02–0.05×D axial, with air blast or minimum-quantity lubrication for chip evacuation.

Note for procurement: Hardness grade and coating are linked decisions. Running a nano-coated HRC65 tool at HRC55 parameters is not a problem, but ordering HRC65 tooling for standard P20 roughing wastes cost margin. Match the tool specification to the actual workpiece hardness at the time of cutting.

Coating Selection by Mold Steel Material

Coating choice controls three independent variables at the cutting edge: heat resistance, adhesion tendency of the workpiece material to the flute face, and coating hardness at elevated temperature. Different mold steels load these three variables differently.

Coating life is also a function of entry method. Helical or ramping entry distributes load at tool engagement. Plunge entry drives peak thermal load onto the tip coating in a short spike. For coated tools in hardened mold steel, helical entry is the default; plunge entry in hardened material accelerates coating delamination at the tip.

Flute Count, Diameter, and Machine Rigidity

After selecting tool type, hardness grade, and coating, three geometry parameters remain: flute count, cutting diameter, and the maximum overhang the machine and setup allow.

Flute count by operation

For tools below 3 mm cutting diameter, 2 flutes are standard. Chip space at micro scale limits flute count, and 4-flute micro tools carry higher risk of chip packing and sudden breakage in deep slots or pockets.

Diameter selection

Match the cutting diameter to the smallest internal feature being produced, then go as large as that feature allows. A ball nose at R3 mm on a cavity with a minimum root radius of R3 mm is the correct specification. Using R2 mm in the same cavity leaves tool life and process stability unused.

For long-neck tools, the relationship between cutting diameter and neck diameter is critical. The neck should be only as thin as needed for interference clearance; unnecessary reduction beyond that multiplies deflection directly.

Machine rigidity constraints

Machine rigidity sets the upper limit on the chip load any tool can carry without chatter. As a practical reference:

• 40-taper VMCs: Maximum practical diameter for aggressive hard milling at HRC55 is roughly 12–16 mm. Spindle torque and stiffness limit chip load above this range.

• 50-taper VMCs and HMCs: Can handle 16–25 mm diameter tools at high chip loads in hardened steel.

• High-speed spindles (above 24,000 RPM): Suited for small-diameter finishing tools (2–4 mm ball nose), not roughing. Light DOC and high spindle speed; radial engagement stays below 5% of diameter.

Run a machine capability assessment before specifying overhang and chip load parameters. A well-specified tool at controlled overhang on a rigid machine consistently outperforms a premium tool at excessive extension on an undersized spindle.

Key principle: The machine, holder, and tool form one system. Specifying the tool in isolation without knowing the spindle taper, holder runout, and maximum safe extension leaves the most important variable uncontrolled.

Hiboo Tools Carbide Cutting Tool Solution

Selecting the right tool type, grade, and coating is necessary but not sufficient. Batch-to-batch dimensional consistency and coating uniformity from the supplier determine whether the specification translates into predictable performance across production runs.

Hiboo Tools manufactures solid carbide end mills in grades from HRC48 to HRC65, covering square, corner radius, ball nose, long neck, and micro geometries. Coatings available include AlTiN, TiAlN, TiSiN, AlTiSiN, nano, TiN, and DLC. Runout accuracy runs to 0–0.5 μm on standard catalog items, with OEM geometries and custom specifications supported for non-standard mold features and reach requirements.

For shops running hardened mold steel at HRC 55–65, validate the tool geometry against your specific machining stage and workpiece hardness before ordering in quantity. Run a test cut on the target cavity geometry at reduced chip load, verify Ra and tool condition after the finishing pass, then confirm parameters at full production values.

Check the Hiboo Tools product catalog against your mold steel grade and machining operation, and run a controlled test cut before committing to full production quantities.

Sources

• Sandvik Coromant, Profile Milling Application Guide — radial engagement recommendations, tool length guidance, deep-cavity strategy

• ISCAR, Die and Mold Making User Guide — roughing and semi-finishing tool selection, long-neck threshold at 3×D pocket depth

• Robb Jack Corporation, Choosing the Right Cutting Tool for the Mold Making Industry — ball nose finishing methodology, constant-Z roughing approach

• MoldMaking Technology, Cutting Tool Considerations as Mold Complexity Increases (2025) — scallop height, diameter vs. DOC guidance

• NS Tool Co., MicroEdge Vol. 2 — runout and flute diameter tolerance specifications for micro end mills

• Harvey Performance Company, In the Loupe: Optimized Machining with Miniature End Mills — micro end mill definition and feed per tooth guidance

• Kennametal, Tech Tip: Grades and Coatings for Solid Carbide End Mills — coating temperature resistance comparison
